Specifications - Sparging Stones

• Low Pressure Tubing
• PEEK Tubing Specifications
• Ordering Information

All MicroSolv Mobile Phase Filters – Sparging Stones are manufactured from the finest raw materials available. These stones can be used as an inlet filter from your solvent reservoir bottle to the HPLC pump or can be used for dispersion of helium while sparging to keep your solvents degassed and under positive pressure in the reservoir.

---

For Use with 1/8th Inch ID, Low Pressure Tubing

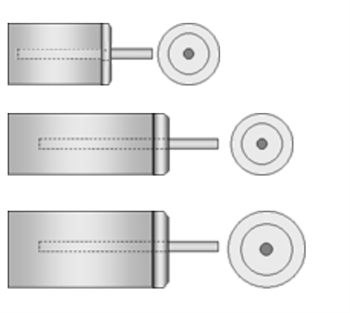

Slip On Type (with Stem)

Cat. No. Diam. Len. Pore Size 48226-01 0.50” 1.0” 2µm 48226-03 0.50” 1.0” 10µm   48222-04 0.68” 1.0” 2µm 48222-06 0.68” 1.0” 10µm

---

For Use with 1/8th Inch ID, Low Pressure Tubing

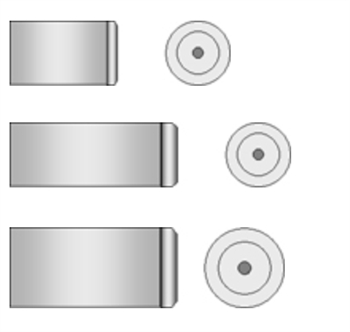

Internal Thread Type

Cat. No. Diam. Len. Pore Size 48225-01 0.375” 0.63” 2µm 48225-03 0.375” 0.63” 10µm   48225-04 0.375” 1.0” 2µm 48225-06 0.375” 1.0” 10µm   48225-07 0.50” 1.0” 2µm 48225-09 0.50” 1.0” 10µm

---

For Use with 1/16th Inch ID, Low Pressure Tubing
Slip On Type (with Stem)

Cat. No. Diam. Len. Pore Size 48221-01 0.375” 0.63” 2µm   48221-03 0.375” 1.0” 2µm 48221-05 0.375” 1.0” 10µm   48221-06 0.50” 1.0” 2µm 48221-08 0.50” 1.0” 10µm
