Product Sheet
Catalog Number
45008-K

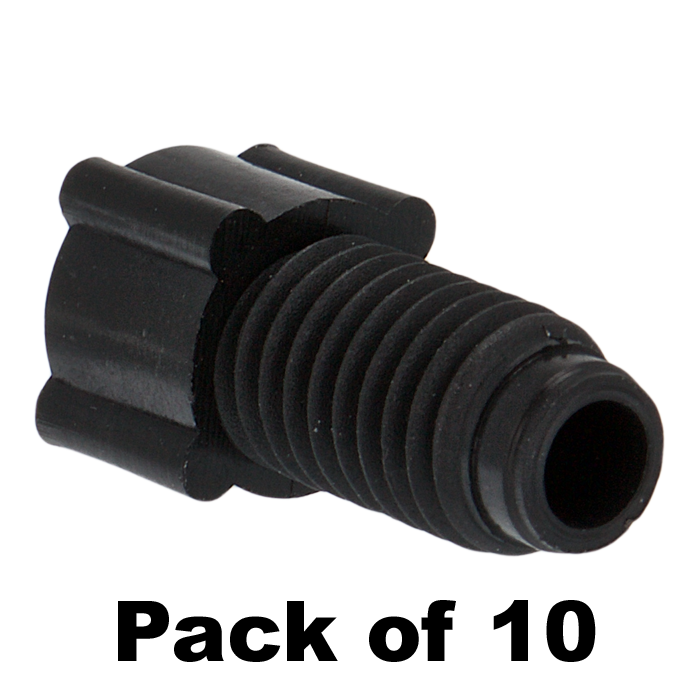

Tubing Connector Nuts, low pressure, 1/8 inch, Polypropylene, Black with 1/4-28 screw threads, for use with flanged, polymeric tubing. ARE-Applied Research brand. 10/PK.

Additional Info

These tubing connector nuts are used to connect 1/8th inch (3.2 mm) polymeric tubing in the low pressures zones of HPLC systems and other low to medium pressure, fluidic uses.

  • Compatible with 1/4 - 28 UNF fitting ports.

  • Useful up to approximately 500 psi or 34.5 bar.

  • Maximum Temperature: 100°C.

  • Click HERE for a convenient flanging tool.

Tubing must be flanged, and washers are required to work properly, and sold separately, click HERE for washer ordering information.

  Price
  $43.33
Product Sheet
Additional Info

These tubing connector nuts are used to connect 1/8th inch (3.2 mm) polymeric tubing in the low pressures zones of HPLC systems and other low to medium pressure, fluidic uses.

  • Compatible with 1/4 - 28 UNF fitting ports.

  • Useful up to approximately 500 psi or 34.5 bar.

  • Maximum Temperature: 100°C.

  • Click HERE for a convenient flanging tool.

Tubing must be flanged, and washers are required to work properly, and sold separately, click HERE for washer ordering information.
