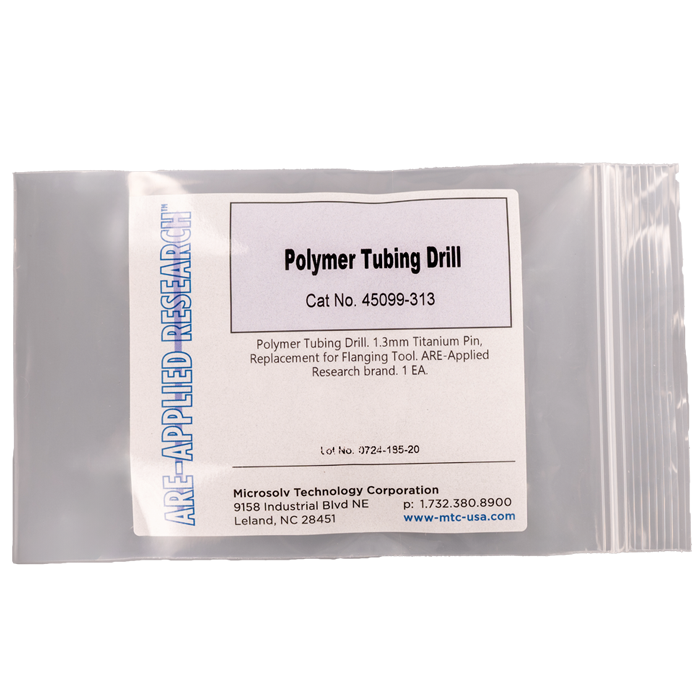

Catalog Number - 45099-313

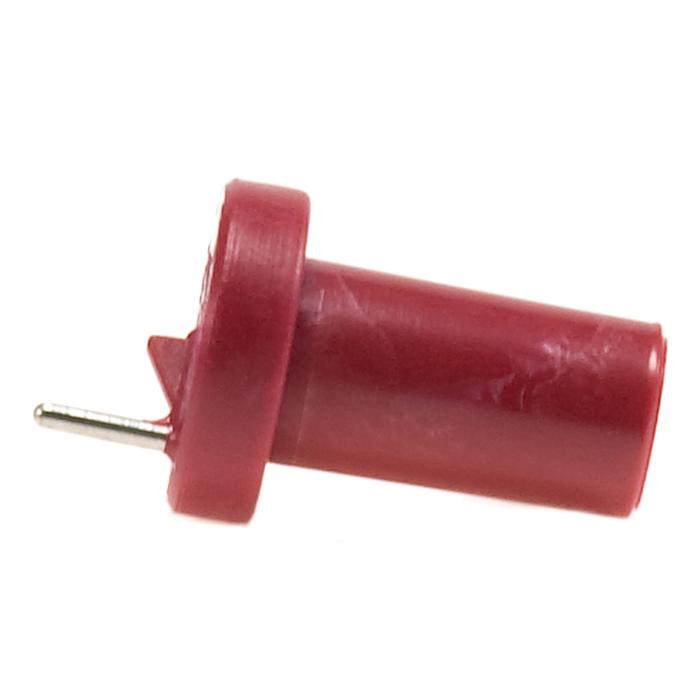

The 45099‑313 Polymer Tubing Flanging Drill is a precision replacement component designed for use with the MICROSOLV Flanging Tool, enabling accurate and repeatable cold flanging of polymer (plastic) tubing tips, particularly for larger internal diameter (ID) tubing.

This drill features a 1.3 mm titanium pin, combining high rigidity and wear resistance with precise internal support during the flaring process. This ensures that even larger bore tubing forms a uniform, dimensionally stable flange, critical for reliable connection performance.

Compared to polymer pin versions, the titanium pin offers enhanced durability and consistency, making it well suited for:

• High‑frequency flanging workflows

• Demanding laboratory environments

• Applications requiring repeatable precision

When used with the flanging tool, this drill produces mechanically formed (cold‑formed) flares, eliminating heat‑based variability and delivering:

• Excellent dimensional stability

• Reduced tubing distortion

• Reliable, leak‑free sealing surfaces

Why Choose the 1.3 mm Titanium Pin Drill

This drill is typically selected when:

• Working with large ID polymer tubing

• Maximum stability and consistency are required

• Higher tool durability is needed over polymer pin versions

• Operating in high‑use or multi‑user lab environments

The 1.3 mm titanium pin provides both strong internal support and long service life, making it ideal for larger tubing and high‑demand applications.

Key Features

Designed for Larger Polymer Tubing

• Compatible with PTFE, FEP, PFA, ETFE, and similar materials

• Optimized for larger internal diameter tubing

• Ensures consistent flaring performance

Titanium Pin Construction

• 1.3 mm titanium pin

• Provides superior rigidity and wear resistance

• Maintains consistent performance over extended use

Compatible with Flanging Tool Systems

• Designed for MICROSOLV flanging tools

• Maintains precision and repeatability

• Replaces worn or damaged drills

Cold‑Forming Flare Technology

• Mechanical flaring (no heat required)

• Produces durable, stable tubing flares

• Improves connection reliability

Typical Applications

• Flanging large ID polymer tubing

• Replacement of flanging tool components

• High‑use chromatography and lab workflows

• Preparation of PTFE, FEP, and PFA tubing

• Low‑pressure fluidic system assembly

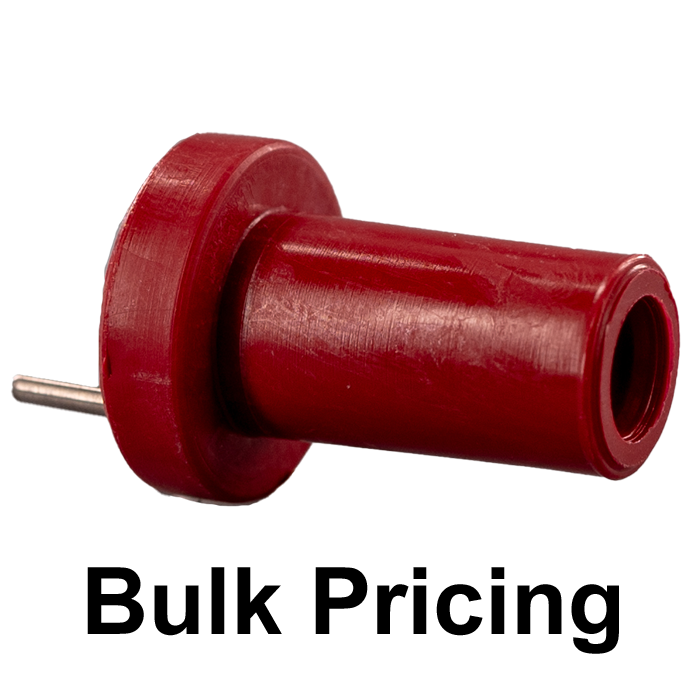

Made‑to‑Order & Bulk Pricing Information

This is a custom, made‑to‑order item.

• Orders cannot be canceled once placed

• Custom items are non‑returnable

• Please contact Customer Service for formal quotation, lead time, and ordering assistance. Classification:

• This item is classified as a CUSTOM ITEM. View our Custom Item policy.
