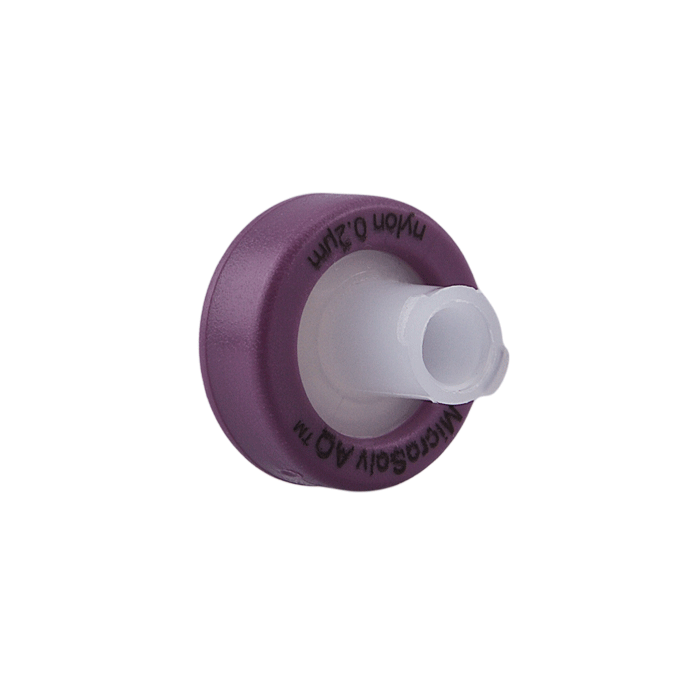

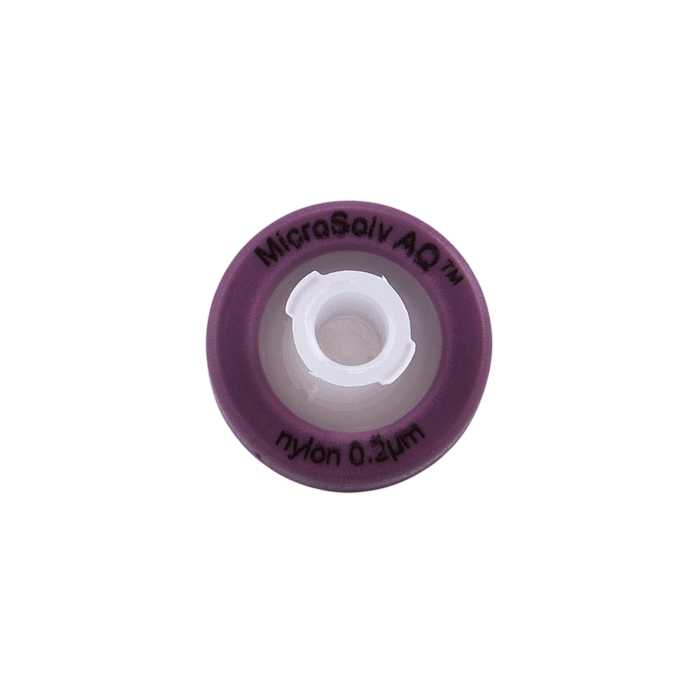

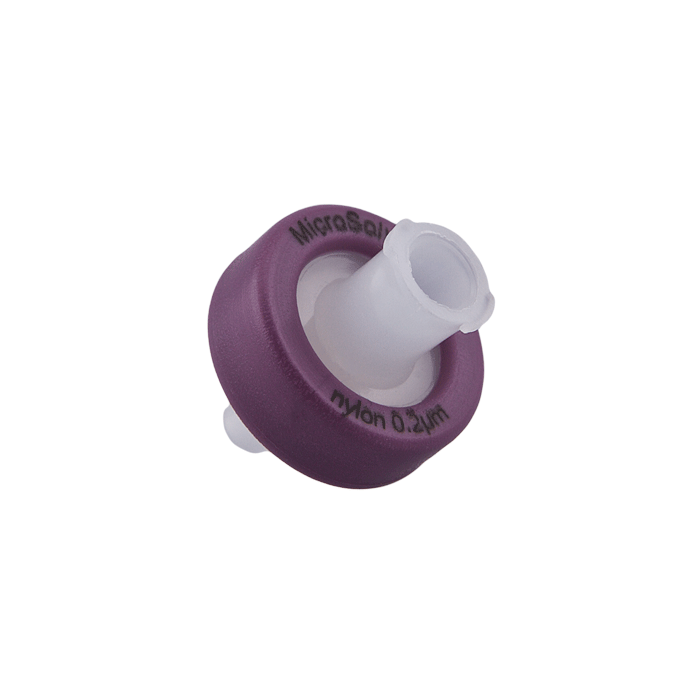

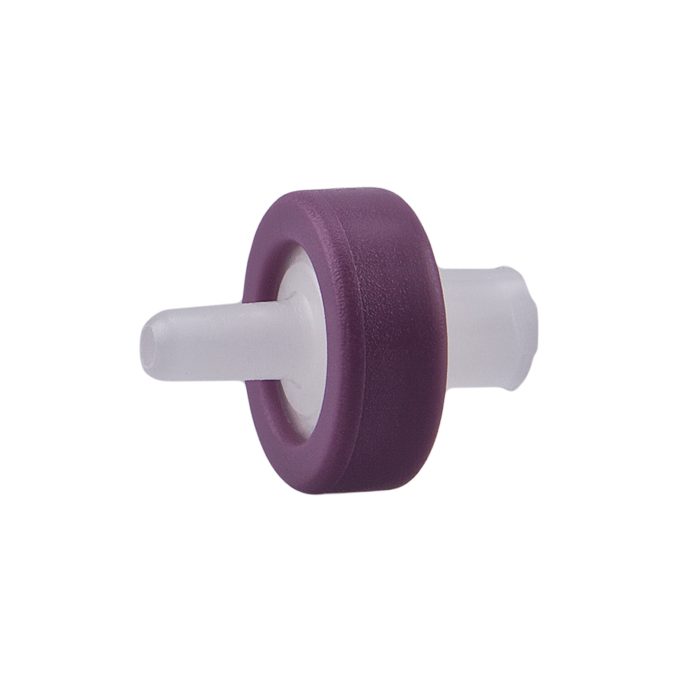

Syringe Filters, 13mm, Nylon, 0.22um Pore Size. Purple Polypropylene, AQ Brand. 50/PK.
Additional Info:
The 58022-N13-A AQ™ Syringe Filters are pharmaceutical-grade, high-performance membrane filters engineered for HPLC sample preparation, sterile filtration, and dissolution testing in regulated laboratory environments. Featuring a 0.22 µm Nylon‑66 membrane, these filters deliver exceptional consistency, ultra-low adsorption, and extractable-free performance, ensuring maximum sample purity and reproducible analytical results.
The 13 mm format is optimized for low sample volume applications, providing efficient filtration with minimal sample loss, making it ideal for analytical labs and method development workflows handling limited or high-value samples.
✅ Critical Compliance Advantage (No Flush Required)
These filters are validated and certified to meet stringent regulatory requirements, including:
US FDA CFR Title 21, Part 210.3(b)(6) for minimum fiber release
USP <788> for particulate matter in injectables
USP requirements for “Sterile Water for Injection”
Because of this validated performance:
✅ No initial flushing is required
✅ No need to discard the first 200 µL of filtrate
✅ Preserves valuable samples—critical in low-volume workflows
✅ Saves time and reduces risk of failed methods and investigations
👉 This delivers a significant operational and compliance advantage for QC/QA laboratories, where sample conservation, reproducibility, and audit readiness are essential.
Performance & Design
The 0.22 µm pore size is optimized for sterile filtration and fine particulate removal, ensuring maximum sample clarity and protection of analytical systems.
Nylon‑66 membrane chemistry provides broad compatibility with aqueous and organic HPLC solvents, while maintaining ultra-low adsorption—even for charged analytes, supporting accurate quantitation.
The 13 mm design minimizes hold-up volume, maximizing recovery from small or valuable samples, making it ideal for precision analytical workflows.
The purple color coding allows quick identification of 0.22 µm nylon filters, and each pack includes a Certificate of Analysis for full traceability and compliance.
Key Features
0.22 µm Nylon‑66 Membrane (Pharma Grade)
Ideal for sterile filtration and fine particulate removal
Ensures maximum sample clarity
✅ No Initial Flush Required (Validated)
Extractable-free from first filtrate
Eliminates sample waste and variability
Ultra-Low Adsorption
Suitable for charged and sensitive analytes
Maximizes analyte recovery
Optimized for Low Sample Volumes (13 mm)
Minimizes sample loss
Ideal for analytical and method development work
Regulatory Compliance
Meets FDA CFR Title 21 requirements
Complies with USP <788>
Suitable for Sterile Water for Injection
Broad Solvent Compatibility
Compatible with aqueous and organic solvents
Ideal for mixed HPLC mobile phases
Autoclavable & EO Sterilizable
121°C for 30 minutes or Ethylene Oxide
Color-Coded (Purple)
Identifies 0.22 µm nylon filters
Typical Applications
HPLC & UHPLC Sample Preparation – fine particulate removal prior to injection
Sterile Filtration – bacterial and contaminant removal
Dissolution Testing – pharmaceutical QC workflows
Method Development – low-volume or high-value samples
Regulated Laboratory Methods – validated, compliant processes
Pharmaceutical Analysis – injectables and formulations
Specifications
Filter Type: Syringe Filter (Pharma Grade)
Membrane Material: Nylon‑66
Pore Size: 0.22 µm
Diameter: 13 mm
Housing Material: Polypropylene (PP)
Color Code: Purple (0.22 µm Nylon)
Connection Type: Luer Lock / Slip
Chemical Compatibility: Aqueous and organic solvents
Extractables: None detectable (no flush required)
Sterilization: Autoclave or EO
Compliance: FDA CFR 21, USP <788>
Certification: Certificate of Analysis included
Sterility: Non-sterile
Pack Size: 50/PK
Brand: AQ™
