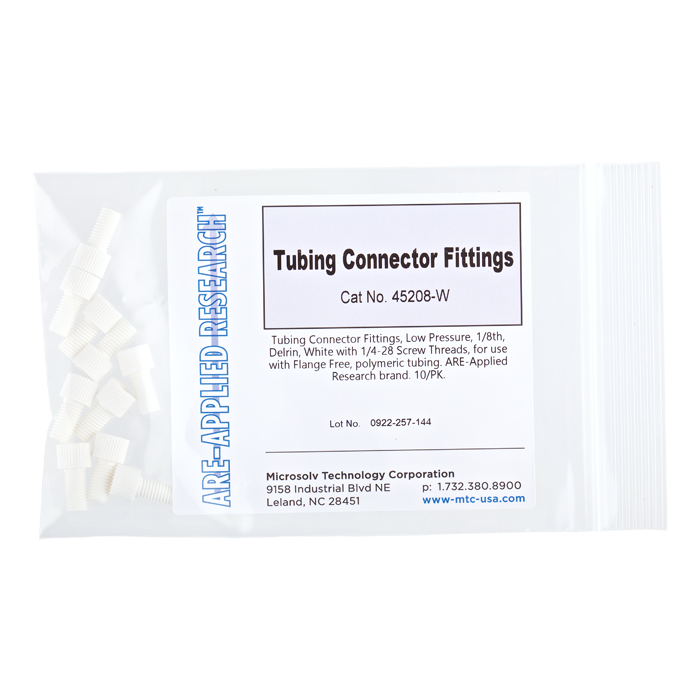

Tubing Connector Nuts, low pressure, 1/8 inch, Delrin, White with 1/4-28 screw threads, for use with flange free, polymeric tubing. ARE-Applied Research brand. 10/PK.
Additional Info:

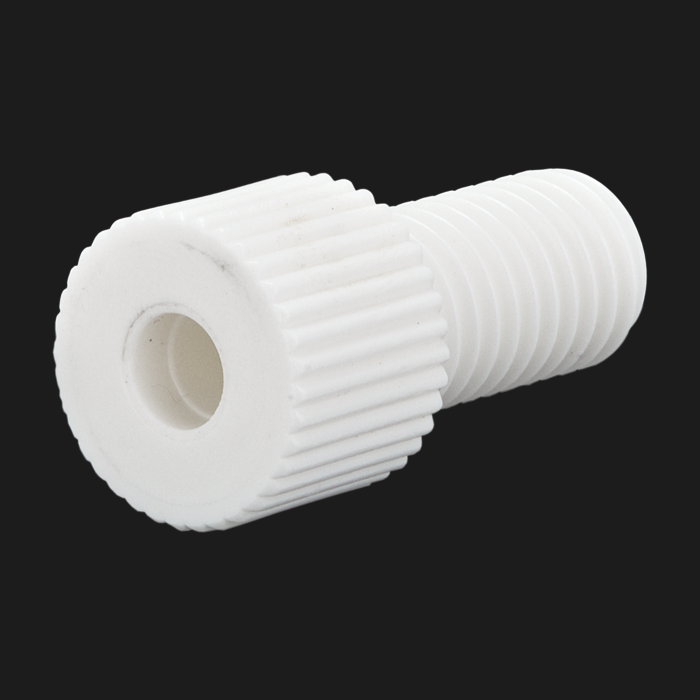

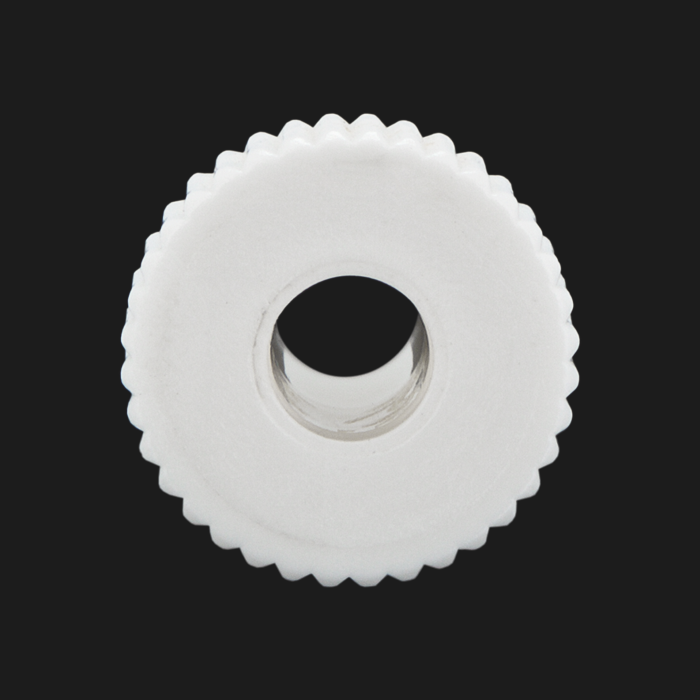

The 45208‑W Delrin Tubing Connector Nuts (10/Pack) are low-pressure fluidic fittings designed for connecting 1/8 inch OD flangeless polymeric tubing in HPLC systems and other fluid handling applications. These finger-tightened connector nuts provide a fast, reliable connection method without requiring tubing flanging.
Manufactured from white Delrin™ (polyoxymethylene), these fittings offer high stiffness, low friction, and excellent dimensional stability, making them ideal for low-pressure, higher flow-rate applications while providing a neutral color option for clean system organization.
✅ Key Benefits
Flangeless Connection Design Eliminates the need for tubing flanging
Finger-Tight Installation Quick, tool-free connections
Standard 1/4‑28 Thread Compatibility Fits common low-pressure HPLC ports
Durable Delrin Construction Provides strength, rigidity, and dimensional stability
Neutral Color Option (White) Supports flexible system identification and clean layouts
Optimized for 1/8" Tubing Systems Suitable for higher flow rate, low-pressure applications
10/Pack Configuration Ideal for routine operations and maintenance
Performance & Design
Material: White Delrin™ (Polyoxymethylene)
High stiffness and strength
Low friction characteristics
Excellent dimensional stability
Connection Type:
1/4‑28 UNF threaded nut
Designed for flangeless tubing systems
Engineered for:
Quick, tool-free installation
Reliable sealing when used with proper ferrules
Consistent performance in low-pressure environments
System Role & Integration
Connects 1/8" OD polymeric tubing to system ports
Requires separate ferrules for proper sealing
Used in:
Low-pressure HPLC systems
Solvent transfer and delivery lines
General laboratory fluidic workflows
⚠️ Usage Notes
Tubing must NOT be flanged (flangeless only)
Ferrules are required for proper sealing
Designed for low-pressure applications only
Pressure Limit: ~500 psi (34.5 bar)
Maximum Temperature: 100°C
⚠️ Avoid exposure to:
Chlorinated solvents
Strong acids (Delrin material sensitivity)
Specifications
Product Type: Tubing Connector Nuts
Material: Delrin™ (Polyoxymethylene)
Color: White
Tubing Size: 1/8 inch OD
Thread Type: 1/4‑28 UNF
Connection Type: Flangeless
Pressure Limit: ~500 psi (34.5 bar)
Max Temperature: 100°C
System Type: Low pressure
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
