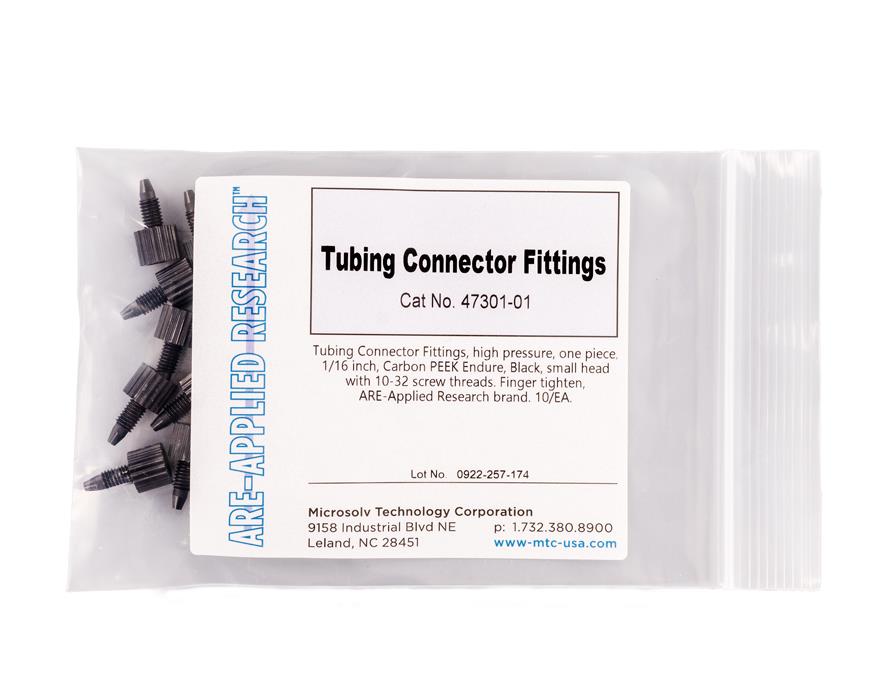

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, Carbon PEEK Endure, Black, small head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
The 47301‑01 Carbon PEEK Tubing Connector Fittings (10/Pack) are high-pressure fittings designed for connecting 1/16 inch OD tubing (PEEK or stainless steel) in demanding HPLC applications. These one-piece, finger-tight fittings provide a secure, high-strength connection in critical high-pressure zones.
Manufactured from Carbon PEEK (Endure™), these fittings are reinforced with carbon fiber, delivering maximum strength, stiffness, and load-bearing performance among PEEK materials, making them ideal for high-pressure and long-term use environments.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC UHPLC applications
Carbon Fiber Reinforced PEEK (Endure™) Highest strength and stiffness of PEEK materials
One‑Piece Fitting Design Simple, reliable, and consistent sealing performance
Finger-Tight Operation No tools required for installation
Small Head Design (10 mm) Ideal for compact instrument layouts and tight spaces
Compatible with Metal and Polymeric Tubing Works with PEEK or stainless steel tubing
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
Superior mechanical strength and stiffness
High load-bearing capacity
Excellent chemical resistance
Design Features:

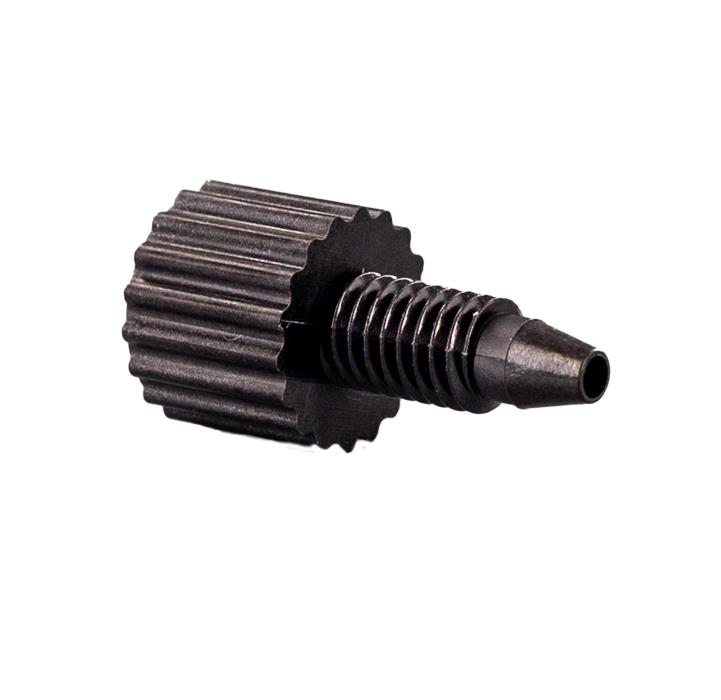

One-piece construction

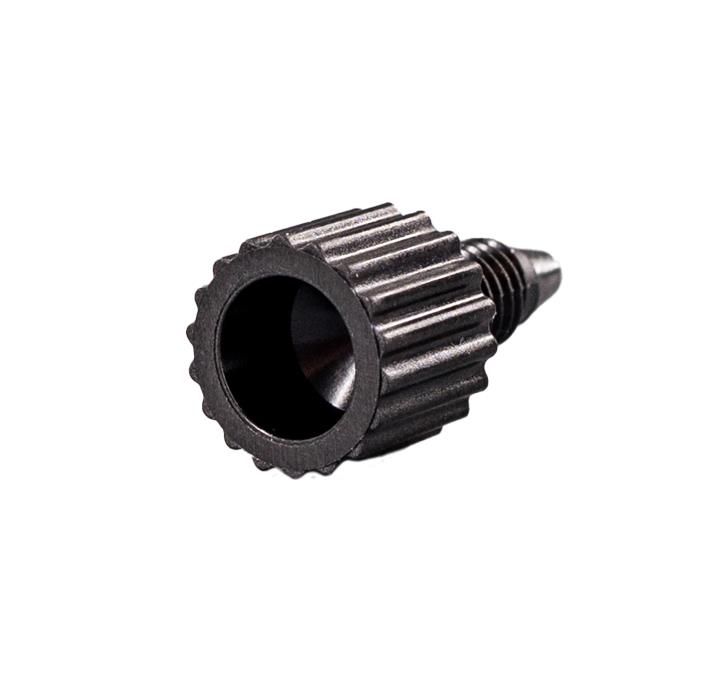

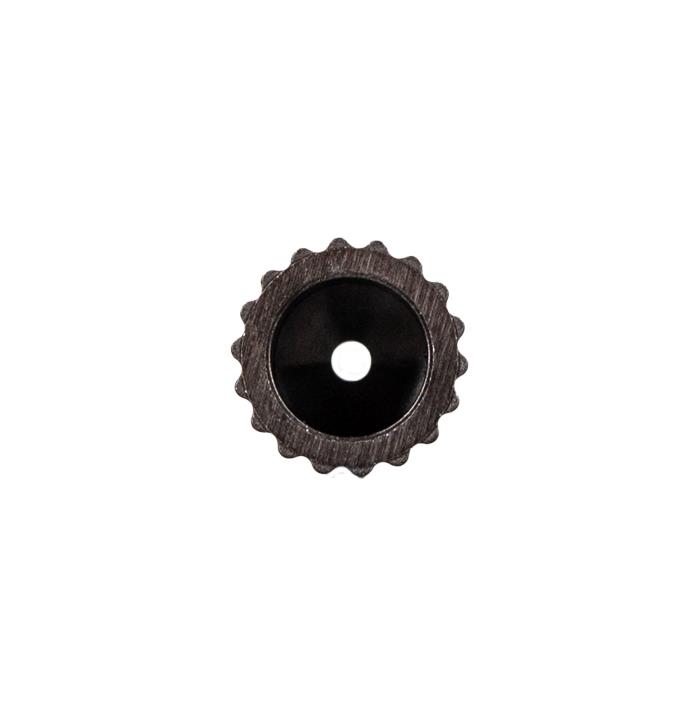

Knurled head for grip (10 mm diameter)
Compact small-head profile
Dimensions:
Head Diameter: 10 mm
Total Length: 21 mm
Thread Length: 13 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure tubing connections
Engineered for:
Reliable high-pressure sealing
Improved mechanical durability vs standard PEEK
Use in confined high-performance systems
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Used in:
HPLC high-pressure zones
Analytical and high-resolution separations
Systems requiring durable, repeatable fittings
⚠️ Usage Notes
Compatible with 10‑32 ports
Designed for high-pressure applications
Ensure proper tubing insertion and alignment before tightening
Finger-tight installation is typically sufficient
Specifications
Product Type: Tubing Connector Fittings
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, small head
Head Diameter: 10 mm
Total Length: 21 mm
Thread Length: 13 mm

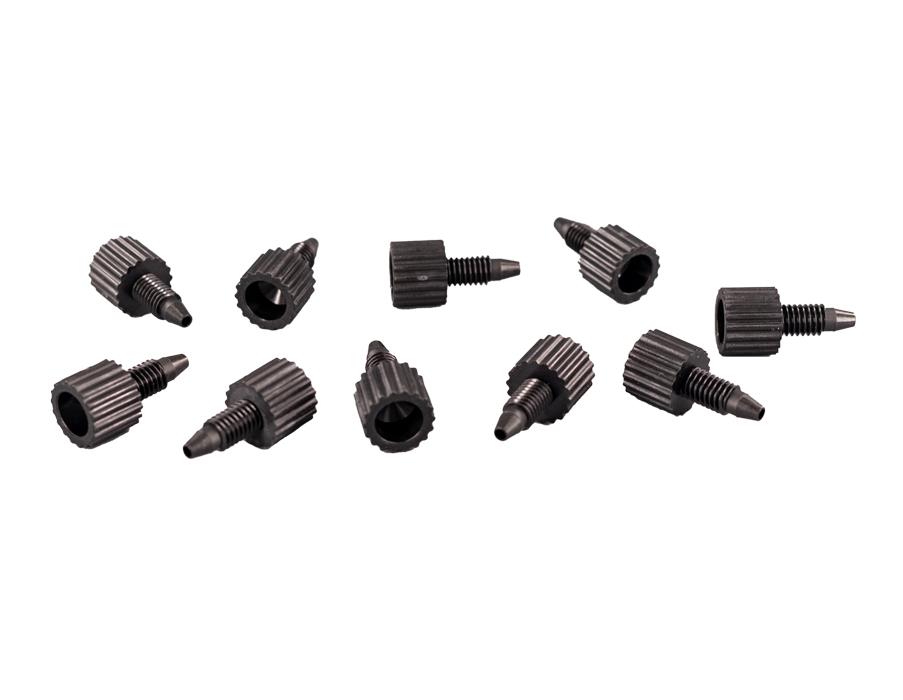

Pack Size: 10 per pack
Brand: ARE‑Applied Research™
