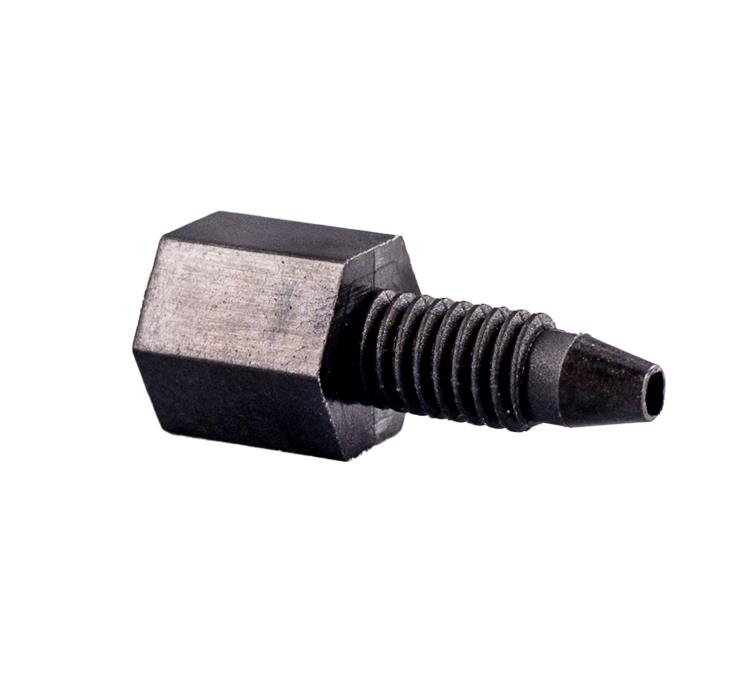

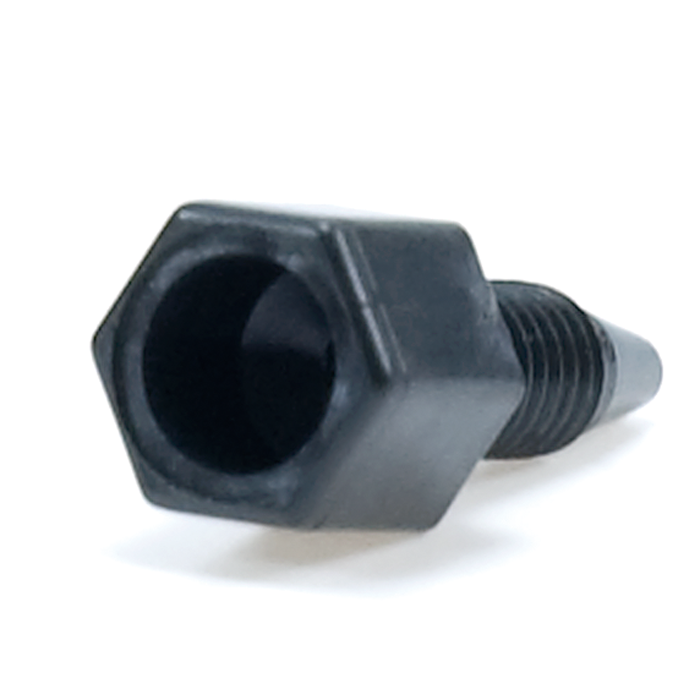

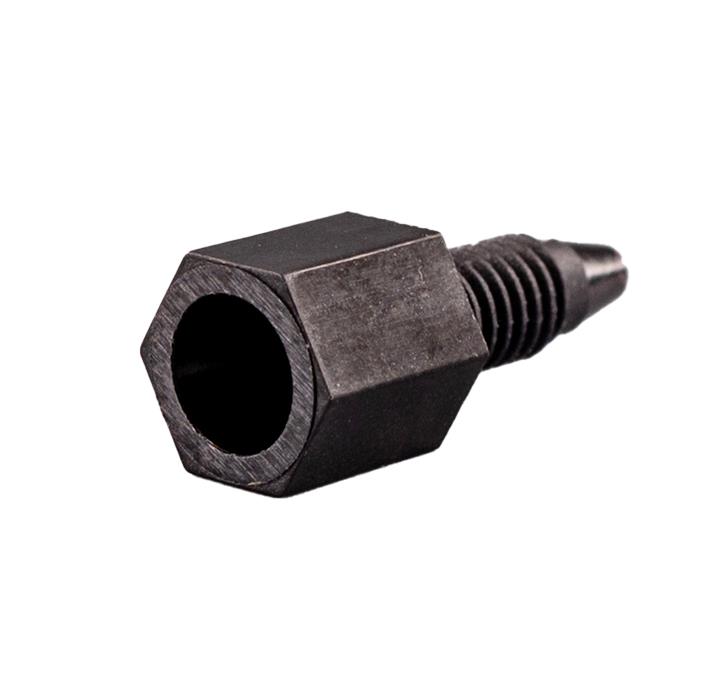

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, Carbon PEEK Endure, Black, large hex head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
The 47301‑03 Carbon PEEK Tubing Connector Fittings (10/Pack) are high-pressure fittings engineered for connecting 1/16 inch OD tubing (PEEK or stainless steel) in demanding HPLC applications. These one-piece, finger-tight fittings provide a reliable and durable connection in critical high-pressure zones.
Manufactured from Carbon PEEK (Endure™), these fittings are reinforced with carbon fiber, delivering maximum strength, stiffness, and load-bearing capability, making them ideal for high-pressure systems requiring long-term reliability.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC environments
Carbon Fiber Reinforced PEEK (Endure™) Highest strength and stiffness among PEEK materials
One‑Piece Fitting Design Ensures consistent, leak-free performance
Finger-Tight Operation Quick installation without tools
Large Hex Head Design Enhances grip and allows optional wrench tightening if needed
Compatible with Metal and Polymeric Tubing Suitable for PEEK or stainless steel tubing
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
Superior mechanical strength
High stiffness and durability
Excellent chemical resistance
Design Features:
One-piece construction

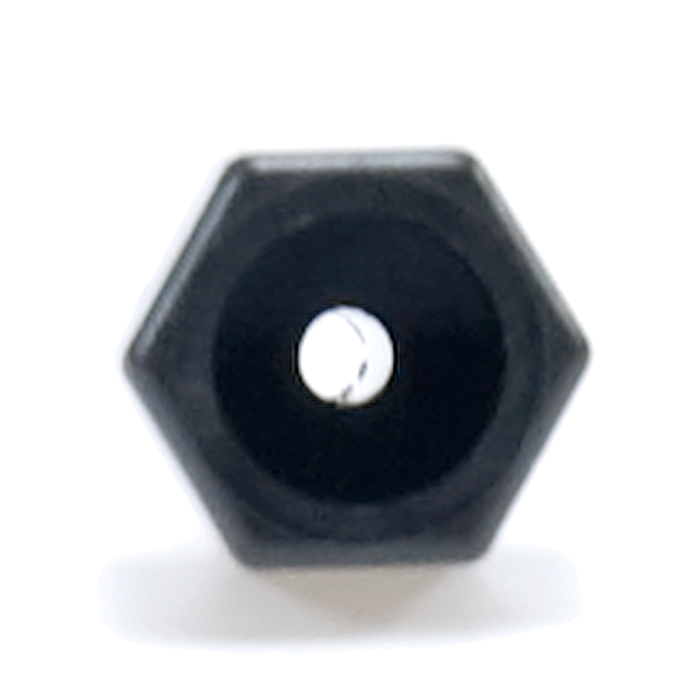

Large hex head for improved grip and torque control
Dimensions:
Head Diameter: 8 mm
Total Length: 21 mm
Thread Length: 12 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Improved durability vs standard PEEK fittings
Enhanced installation control in demanding environments
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel) to system ports
Used in:
High-pressure HPLC systems
Analytical and high-resolution separations
Applications requiring robust, repeatable connections
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
May be finger-tightened or lightly torqued with a wrench if required
Specifications
Product Type: Tubing Connector Fittings
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, large hex head
Head Diameter: 8 mm
Total Length: 21 mm
Thread Length: 12 mm

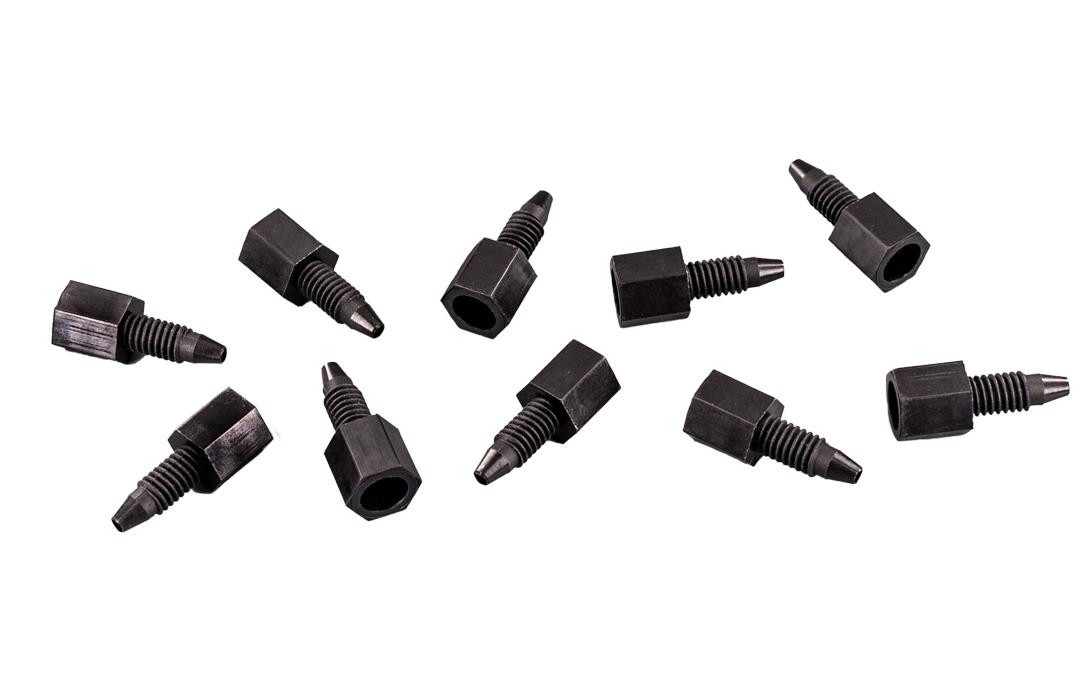

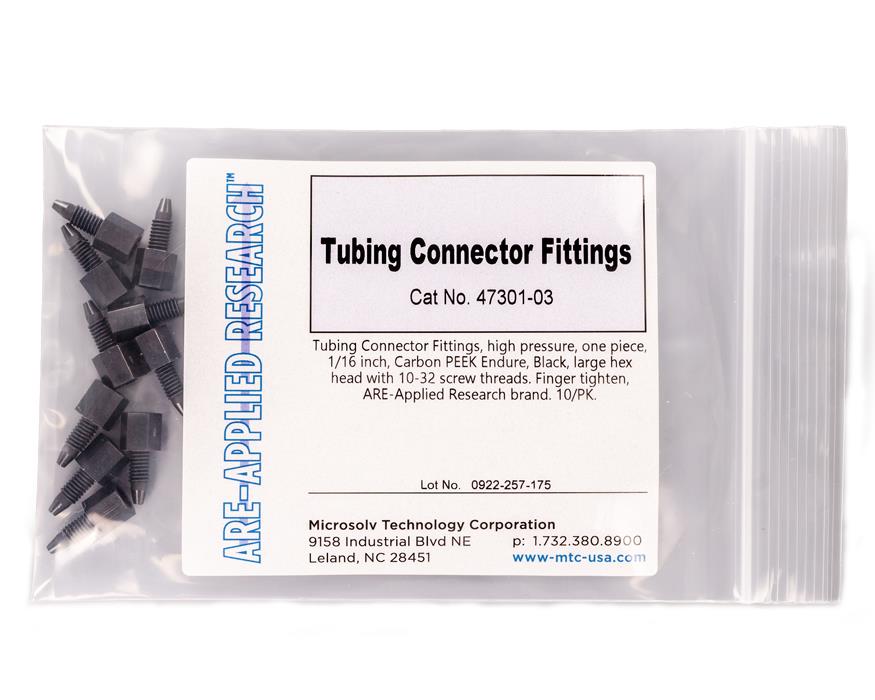

Pack Size: 10 per pack
Brand: ARE‑Applied Research™
