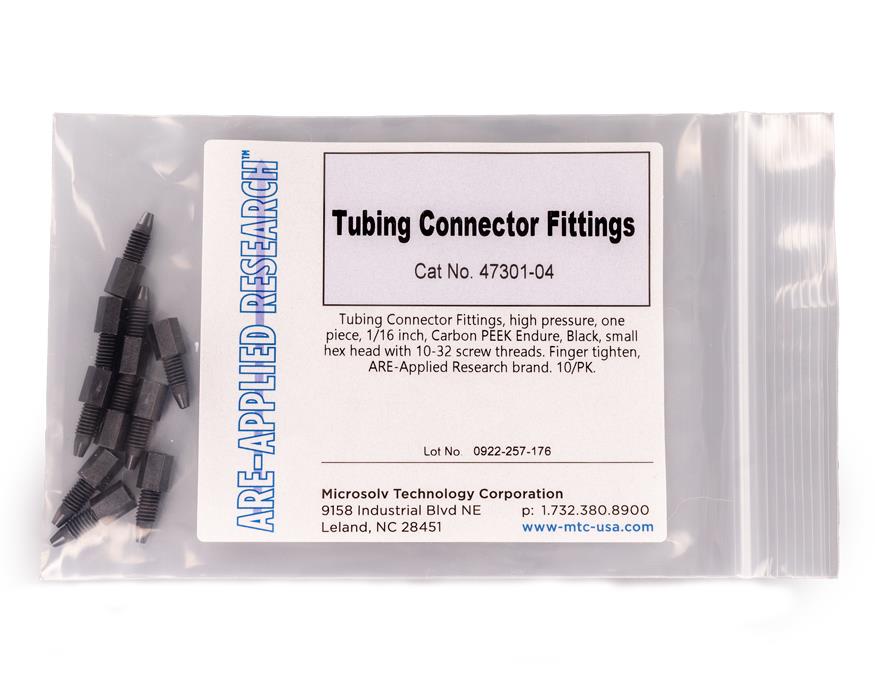

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, Carbon PEEK Endure, Black, small hex head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
Carbon PEEK tubing connector fittings for 1/16" OD tubing provide strong, reliable high-pressure connections in HPLC systems. Designed for 10‑32 ports, these one-piece fittings are compatible with both PEEK and stainless steel tubing.

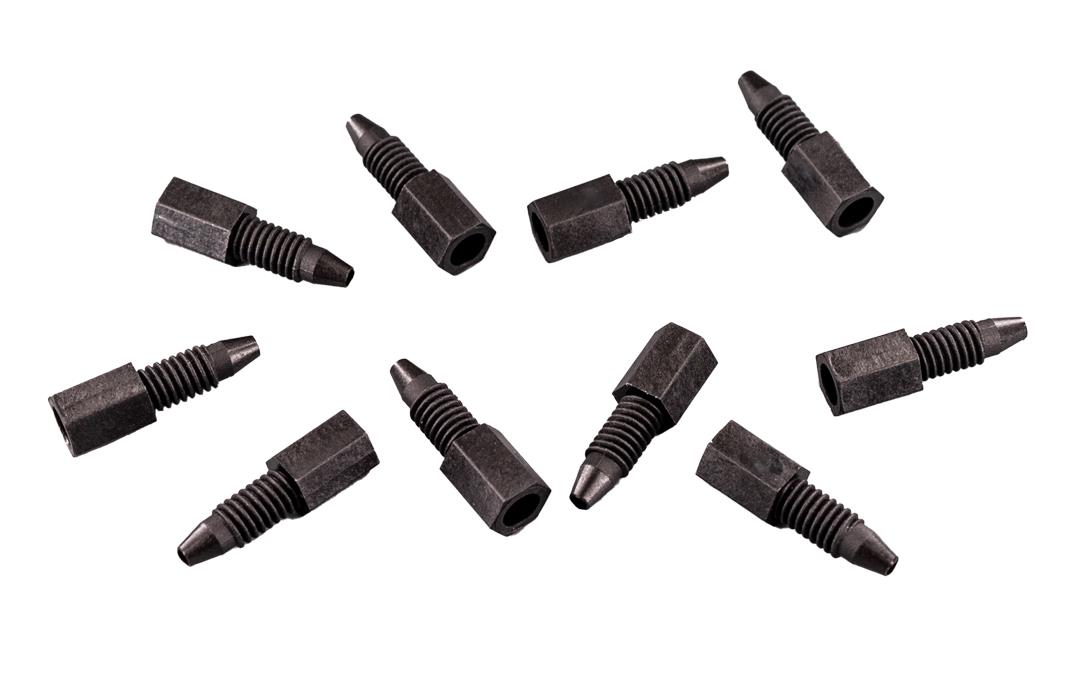

The 47301‑04 Carbon PEEK Tubing Connector Fittings (10/Pack) are engineered for high-pressure applications, offering a compact solution for connecting tubing in tight or confined areas. The small hex head design makes these fittings especially useful in sample loops, valve assemblies, and other space-limited configurations.
Manufactured from Carbon PEEK (Endure™), these fittings are reinforced with carbon fiber, delivering exceptional strength, stiffness, and load-bearing capability, making them ideal for demanding, long-term use.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC applications
Carbon Fiber Reinforced PEEK (Endure™) Highest strength and stiffness among PEEK materials
Compact Small Hex Head Design Ideal for tight spaces such as valves and sample loops
One‑Piece Fitting Construction Ensures reliable, consistent sealing
Finger-Tight Installation Quick and easy setup; optional additional torque if needed
Compatible with Multiple Tubing Types Suitable for PEEK or stainless steel tubing
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
High mechanical strength and stiffness
Excellent chemical resistance
Enhanced load-bearing performance
Design Features:
One-piece construction
Small hex head for compact installations
Optimized for confined system layouts
Dimensions:
Head Diameter: 6 mm
Total Length: 20.5 mm
Thread Length: 13 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Durability under repeated use
Access in tight or restricted instrument areas
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Ideal for:
HPLC UHPLC high-pressure zones
Sample loops and injector valves
Compact instrument layouts
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
May be finger-tightened or lightly torqued if additional sealing force is required
Use of a valve tool may assist in achieving final tightness in confined spaces
Specifications
Product Type: Tubing Connector Fittings
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, small hex head
Head Diameter: 6 mm
Total Length: 20.5 mm
Thread Length: 13 mm
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
