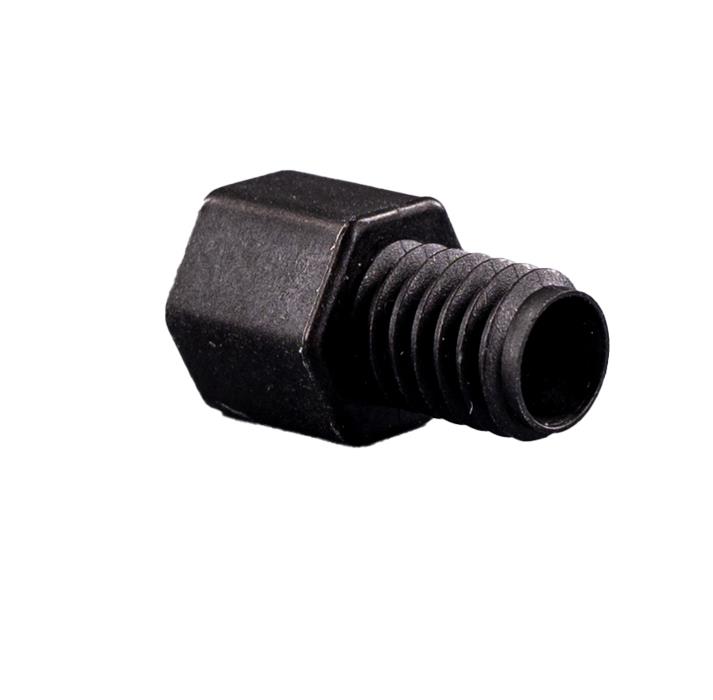

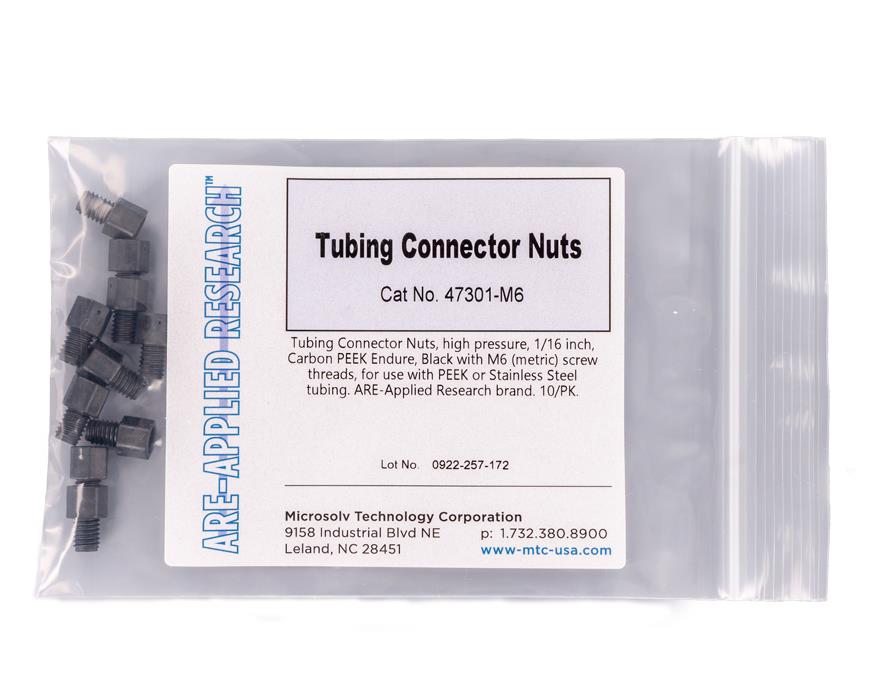

Tubing Connector Nuts, high pressure, 1/16 inch, Carbon PEEK Endure, Black with M6 (metric) screw threads, for use with PEEK or Stainless Steel tubing. ARE-Applied Research brand. 10/PK.
Additional Info:
Carbon PEEK tubing connector nuts for 1/16" OD tubing provide strong, high-pressure connections in HPLC systems. Designed for M6 metric ports, these fittings are compatible with both PEEK and stainless steel tubing and require ETFE ferrules for proper sealing.
The 47301‑M6 Carbon PEEK Tubing Connector Nuts (10/Pack) are engineered for high-pressure applications using metric M6 threaded connections, making them ideal for systems and components designed to European or metric standards. These fittings deliver reliable performance when paired with the correct ferrule system.
Manufactured from Carbon PEEK (Endure™), these connector nuts are reinforced with carbon fiber, offering superior mechanical strength, stiffness, and load-bearing capacity, making them well-suited for demanding analytical environments.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC systems
Carbon Fiber Reinforced PEEK (Endure™) Maximum strength and stiffness among PEEK materials
Metric M6 Thread Compatibility Ideal for metric-based instruments and fittings
Broad Tubing Compatibility Suitable for PEEK or stainless steel tubing
Durable, One-Piece Nut Format Designed for consistent and reliable performance
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
High strength and rigidity
Excellent chemical resistance
Superior load-bearing capability
Connection Type:
M6 metric threaded nut
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing (with ferrule)
Long-term performance under stress
Compatibility with metric system hardware
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Requires:
ETFE ferrules (mandatory for proper sealing)
Used in:
HPLC high-pressure zones
Metric-threaded instrument configurations
Analytical systems requiring durable connections
⚠️ Usage Notes
Must be used with ETFE ferrules for proper sealing
Compatible with M6 metric ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Specifications
Product Type: Tubing Connector Nuts
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: M6 (Metric)
Connection Type: High pressure
System Requirement: ETFE ferrule required
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
