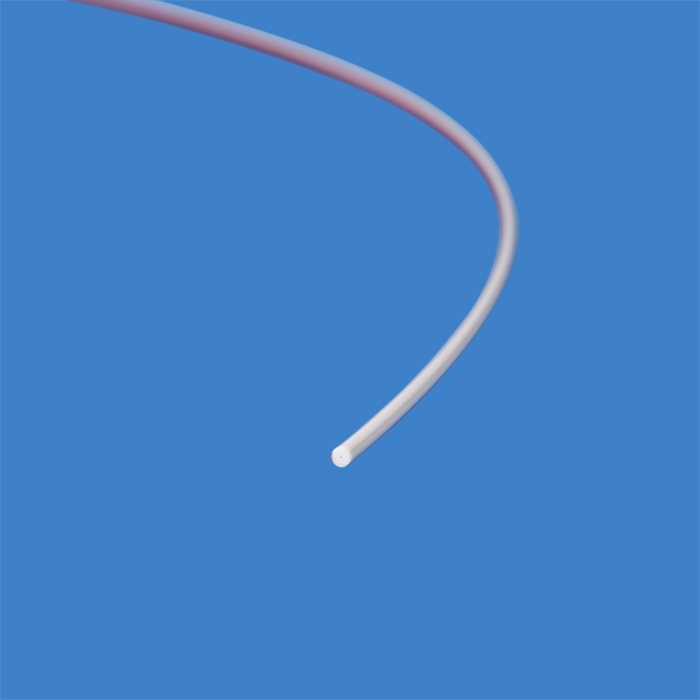

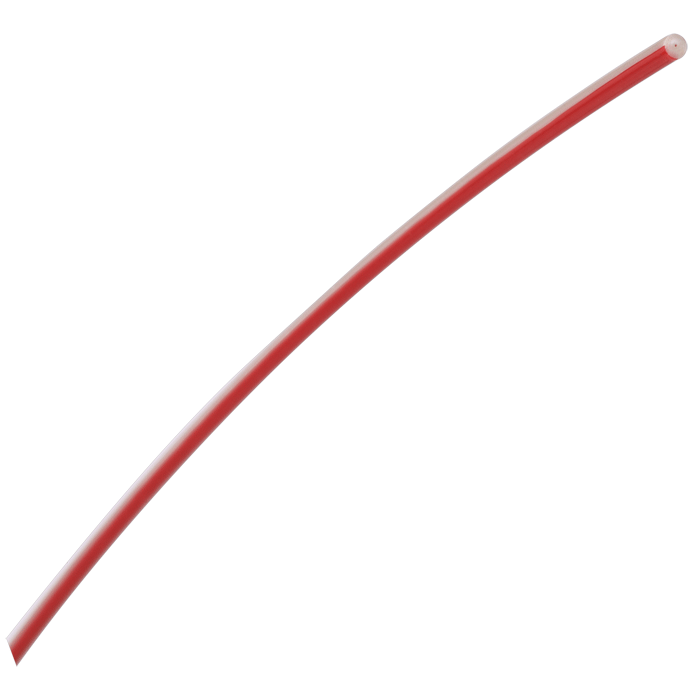

Tubing, PEEK, 0.005 inch (0.13 mm) ID, 1/16th inch (1.6 mm) OD, HPLC grade, red stripe, 25 meter Spool, ARE-Applied Research brand. 1 EA.
Additional Info:
This HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant fluidic pathways and low extractables.
The 47305‑05‑C tubing features a 0.005" (0.13 mm) ID with a 1/16" (1.6 mm) OD. The red stripe is applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
This tubing is supplied on a convenient spool for easier storage and handling.
Key Benefits
Virgin PEEK tubing construction
Natural internal flow path
Exterior red stripe identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.005" (0.13 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.735 mm
Tolerance: ± 0.05 mm
Color Code: Red stripe
Pressure Rating: 6100 psi (420.6 bar)
Length: 25 meter spool
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripe assists tubing identification
Supplied on a convenient spool
Custom cut lengths available through Customer Service
