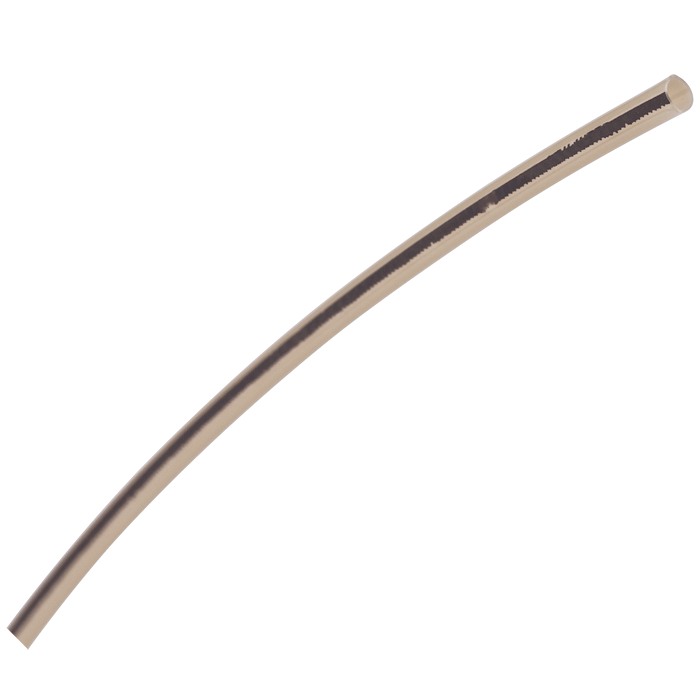

Tubing, PEEK, 0.055 inch (1.4 mm) ID, 1/16th inch (1.6 mm) OD, HPLC grade, black stripe, 25 meter spool, ARE-Applied Research brand. 1 EA.
Additional Info:
This HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant fluidic pathways and low extractables.
The 47305‑55‑C tubing features a 0.055" (1.4 mm) ID with a 1/16" (1.6 mm) OD. The black stripe is applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Due to the very thin wall construction, this tubing should be handled carefully to help prevent kinking or deformation during installation and use.
This tubing is supplied on a convenient spool for easier storage and handling.
Key Benefits
Virgin PEEK tubing construction
Natural internal flow path
Exterior black stripe identification
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.055" (1.4 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.10 mm
Tolerance: ± 0.05 mm
Color Code: Black stripe
Pressure Rating: 750 psi (51.7 bar)
Length: 25 meter spool
Applications
Analytical HPLC
LC‑MS systems
Laboratory fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Very thin wall tubing requires careful handling
Avoid kinking during installation
Exterior stripe assists tubing identification
Supplied on a convenient spool
Custom cut lengths available through Customer Service
Not supplied with precision low dead volume end cuts
