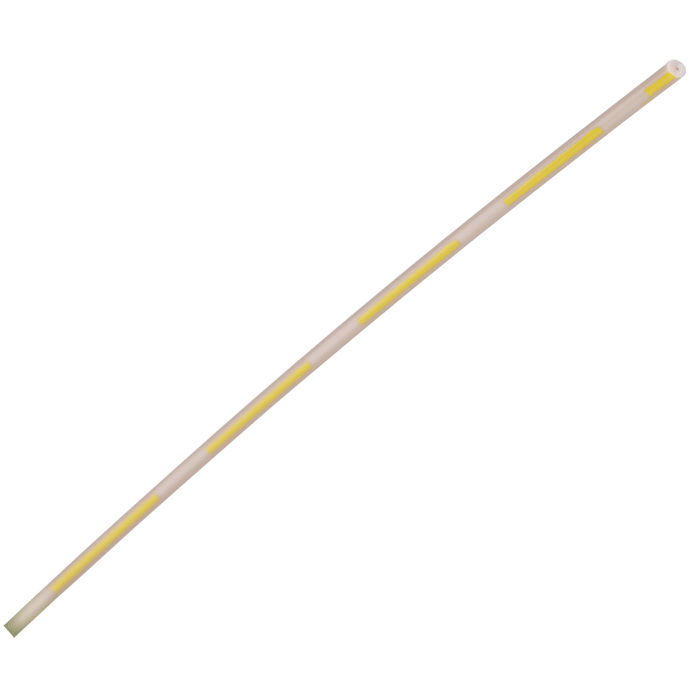

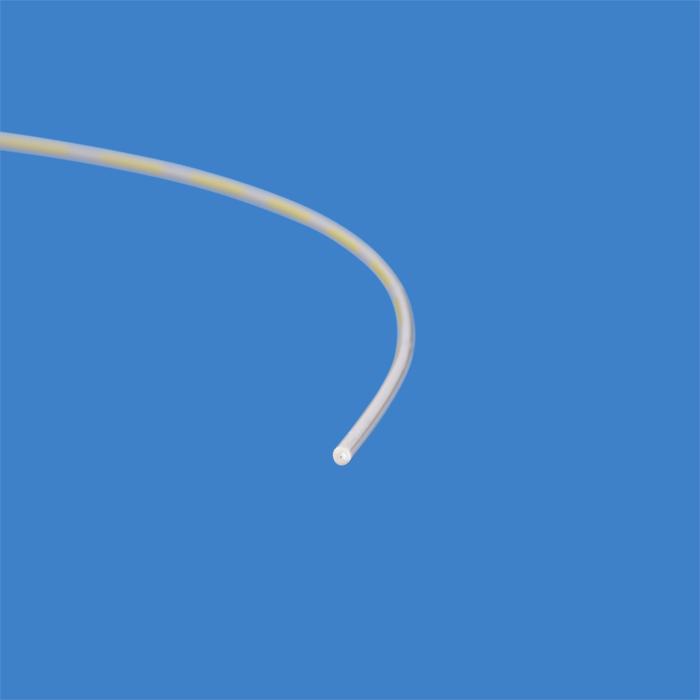

Tubing, PEEK, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, yellow intermittent stripes, 25 meter spool, ARE-Applied Research brand. 1 EA.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring low extractables and chemical resistance.
The 47305‑ST‑07‑C tubing features a 0.007" (0.18 mm) ID with a 1/16" (1.6 mm) OD. The yellow intermittent stripes are applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
This tubing is supplied on a convenient spool for easier storage and handling. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Natural internal flow path
Exterior yellow stripe identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.007" (0.18 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance: ± 0.025 mm
Color Code: Yellow intermittent stripes
Pressure Rating: 5800 psi (399.9 bar)
Length: 25 meter spool
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripes assist tubing identification
Supplied on a convenient spool
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
