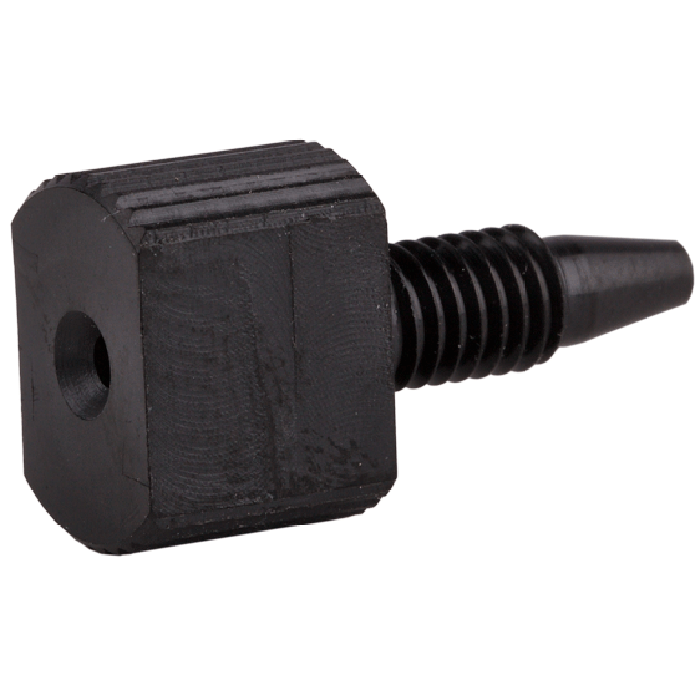

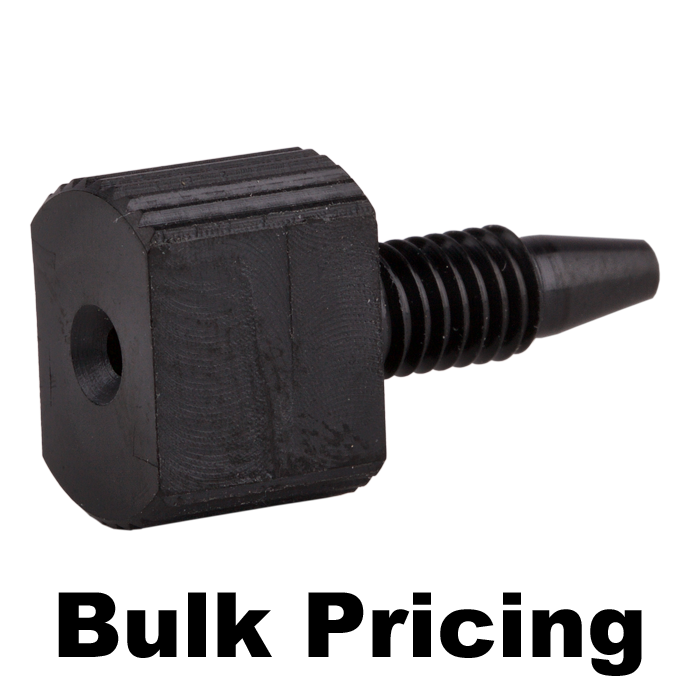

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Black, large Combihead with 10-32 screw threads. Finger or wrench tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
The 47320‑10K PEEK Tubing Connector Fitting is a high-pressure, one-piece fluidic connection component designed for connecting 1/16 inch OD tubing in HPLC systems. This fitting is compatible with both PEEK and stainless steel tubing and is used in high-pressure flow paths requiring reliable, leak-free performance.
This version features a large combihead design, combining a partially knurled, rounded head for finger tightening with a flat section for wrench tightening, allowing both ease of installation and precise torque control.
Constructed from black PEEK, this fitting provides a bioinert flow path and offers color identification benefits for differentiating systems, users, or flow lines.
✅ Key Benefits
High Pressure Performance (Up to 5,000 psi / 350 bar) Suitable for demanding HPLC applications
Large Combihead Design Knurled for finger tightening + flat surface for wrench tightening
Universal 1/16" Tubing Compatibility Works with PEEK and stainless steel tubing
Bioinert PEEK Construction Eliminates metal interaction
Color-Coded Identification Helps organize systems, columns, or users
Performance & Design
Material: Black PEEK
Chemical resistance
Mechanical durability
Bioinert compatibility
Head Design:
Partially knurled rounded head for hand tightening
Flat wrench surface for controlled torque
Dimensions:
Head Diameter: 12 mm
Overall Length: 22 mm
Thread Length: 8 mm
Design Features:
Beveled inlet hole for easier tubing insertion
One-piece construction for simplified installation and sealing
Engineered for:
Reliable high-pressure connections
Leak-free performance
Repeatable installation in critical flow paths
System Role & Integration
Connects 1/16" OD tubing to HPLC system ports
Used in:
Pump connections
Injector interfaces
Column inlet/outlet connections
Suitable for:
High-pressure analytical HPLC systems
Bioinert and standard chromatography workflows
⚠️ Usage Notes
Finger tighten initially, then apply wrench tightening for final seal if required
Do not overtighten to avoid thread damage
Compatible with standard 10‑32 threaded ports
Specifications
Product Type: Tubing Connector Fitting
Material: PEEK (Black)
Tubing Size: 1/16 inch
Thread Type: 10‑32
Design: Large Combihead (Knurled + Flat Wrench Surface)
Pressure Limit: 5,000 psi (350 bar)
Overall Length: 22 mm
Thread Length: 8 mm
Flow Path: Bioinert / metal‑free
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
