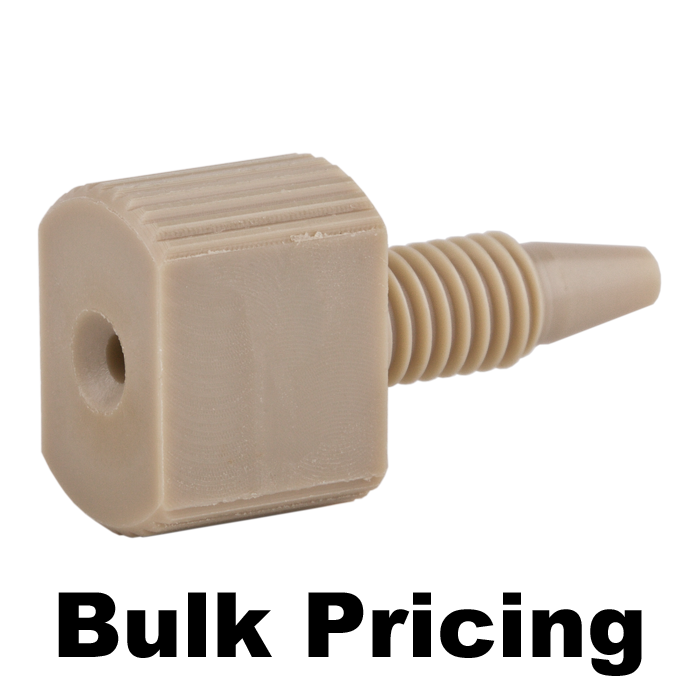

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, large Combihead with 10-32 screw threads. Finger or wrench tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
The 47320‑10N PEEK Tubing Connector Fitting is a high-pressure, one-piece fluidic connection component designed for connecting 1/16 inch OD tubing in HPLC systems. This fitting is compatible with both PEEK and stainless steel tubing and is intended for use in high-pressure flow path applications requiring secure, leak‑free connections.
This version features a large combihead design, combining a partially knurled, rounded head for finger tightening with a flat surface for wrench tightening, allowing both ease of installation and precise torque control.
Manufactured from natural (unpigmented) PEEK, this fitting provides a bioinert, metal‑free flow path without added colorants, making it ideal for applications where material purity and visual neutrality are preferred.
✅ Key Benefits
High Pressure Performance (Up to 5,000 psi / 350 bar) Suitable for demanding HPLC applications
Large Combihead Design Knurled for finger tightening plus flat wrench surface for controlled torque
Universal 1/16" Tubing Compatibility Works with both PEEK and stainless steel tubing
Bioinert Natural PEEK Construction Ensures metal‑free flow path with no added pigments
One-Piece Design Simplifies installation and reduces leak risk
Performance & Design
Material: Natural PEEK
Excellent chemical resistance
High mechanical strength
Bioinert compatibility
Head Design:
Partially knurled rounded head for hand tightening
Flat wrench surface for precise tightening and loosening
Dimensions:
Head Diameter: 12 mm
Overall Length: 22 mm
Thread Length: 8 mm
Design Features:
Beveled inlet for easier tubing insertion
One-piece construction for reliable sealing performance
Engineered for:
Leak-free connections
Consistent high-pressure operation
Repeatable installation and removal
System Role & Integration
Connects 1/16" OD tubing to HPLC system ports
Used in:
Pump connections
Injector interfaces
Column inlet and outlet connections
Suitable for:
High-pressure analytical HPLC systems
Bioinert chromatography workflows
⚠️ Usage Notes
Finger tighten first, then apply wrench tightening if required
Avoid overtightening to preserve thread integrity
Compatible with standard 10‑32 HPLC ports
⚠️ Custom Order Item Non-returnable and non-cancelable once ordered
Specifications
Product Type: Tubing Connector Fitting
Material: PEEK (Natural)
Tubing Size: 1/16 inch
Thread Type: 10‑32
Design: Large Combihead (Knurled + Flat Wrench Surface)
Pressure Limit: 5,000 psi (350 bar)
Overall Length: 22 mm
Thread Length: 8 mm
Flow Path: Bioinert / metal‑free
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
