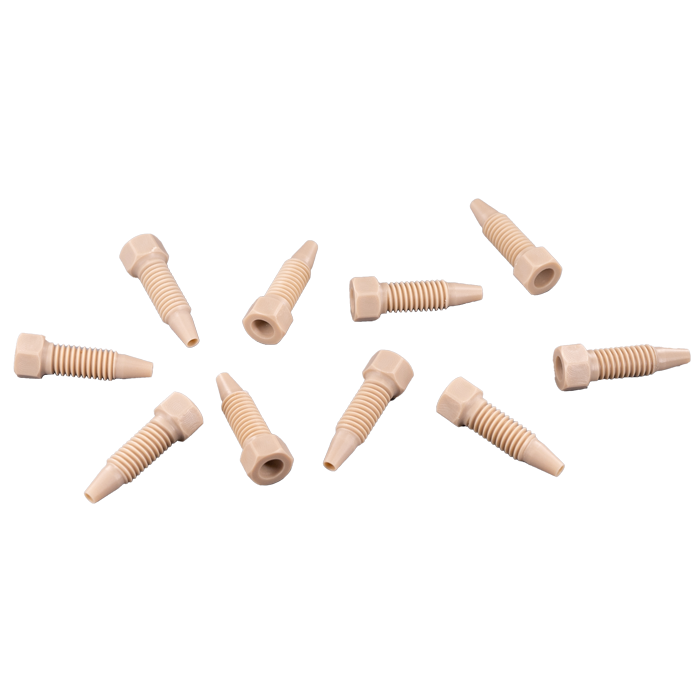

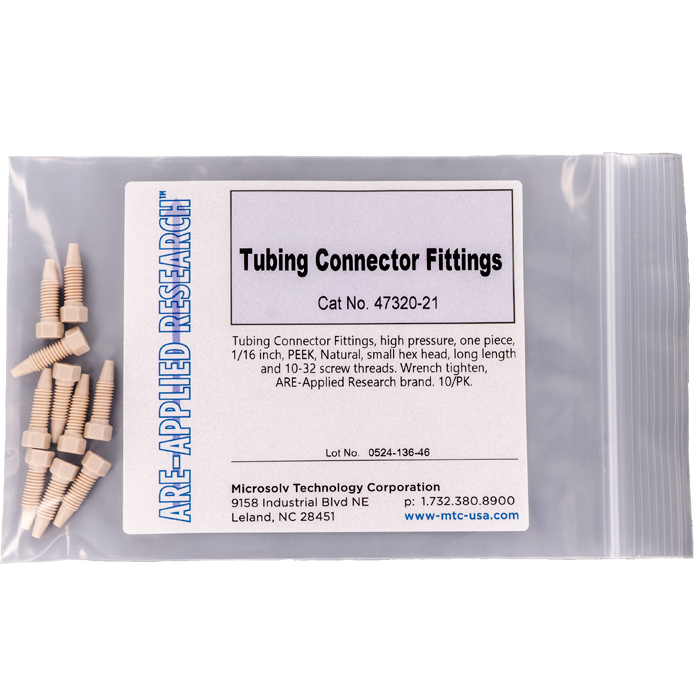

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, small hex head, long length and 10-32 screw threads. Wrench tighten, ARE-Applied Research brand. 10/EA.
This tubing connector fitting is used to connect PEEK or Stainless Steel tubing in the high pressures zones of HPLC systems.

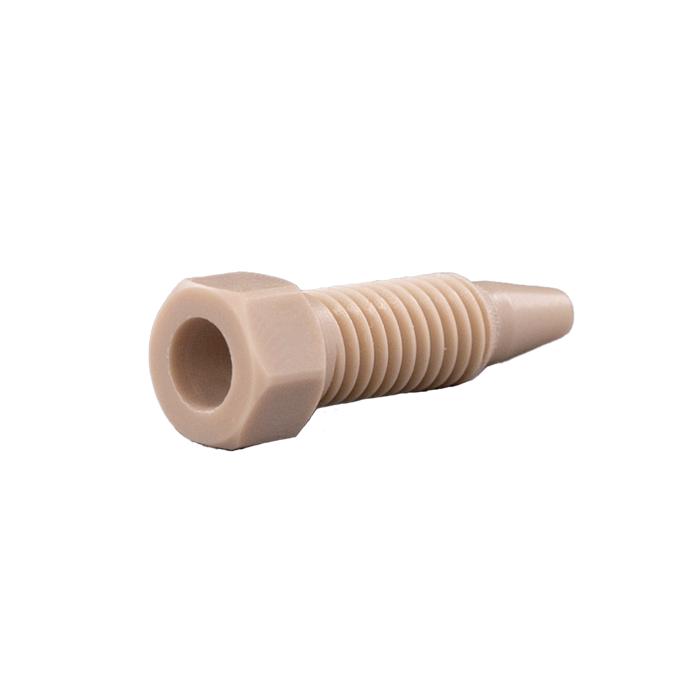

This Fitting has a 7 mm diameter hexagonal head for use with a wrench to tighten or loosen the nut. The smaller, 7 mm diameter head allows this fitting to be used inside instruments when space is limited.
The 20 mm total length (top to bottom) with a 15 mm thread length allows for a an excellent, swaged connection that is similar in use to a Stainless Steel nut.
