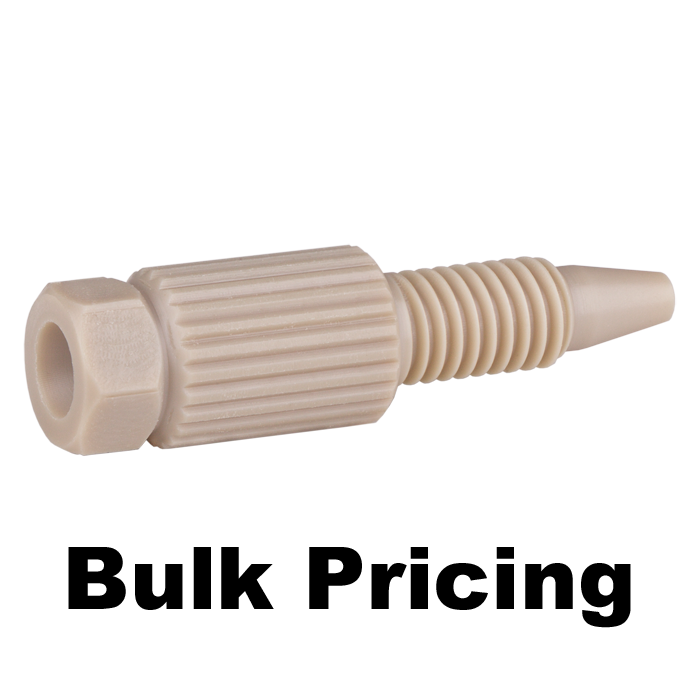

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, small, Combihead/hex head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
The 47320‑25 PEEK Tubing Connector Fitting is a high-pressure, one-piece fluidic connection component designed for connecting 1/16 inch OD tubing in HPLC systems. This fitting is suitable for use with both PEEK and stainless steel tubing and is widely used in high-pressure flow paths.
The combihead design combines a knurled head for finger tightening with a hex head for wrench tightening, enabling both convenience and precise torque control during installation.
✅ Key Benefits
High Pressure Performance Designed for use in critical HPLC fluidic connections
Universal 1/16" Tubing Compatibility Works with both PEEK and stainless steel tubing
Combihead Design (Knurled + Hex) Allows finger tightening or controlled wrench tightening
Precision 10‑32 Threads Standard HPLC connection format
One-Piece Construction Simplifies installation and reduces leak risk
Performance & Design
Material: Natural PEEK
Chemical resistance
Bioinert compatibility
High mechanical strength
Head Design:
Knurled section (12 mm length) for easy finger tightening
6.3 mm hex head for torque-controlled tightening
Threaded Section:
Total threaded end length: 14 mm
Actual thread length: 8.30 mm
Engineered for:
Leak-free connections
Reliable performance in high-pressure zones
Repeatable installation and removal
Dimensions
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Overall Length: 28.10 mm
Knurled Head Length: 12 mm
Hex Head Size: 6.3 mm
Thread Section Length: 14 mm
Thread Length: 8.30 mm
System Role & Integration
Connects 1/16" tubing to HPLC system ports
Used in:
Pump outlets
Injector connections
Column inlet/outlet connections
Suitable for:
High-pressure fluid paths
Bioinert and standard HPLC workflows
⚠️ Usage Notes
Finger tighten first, then use wrench if required for high-pressure sealing
Avoid overtightening to preserve thread integrity
Compatible with standard 10‑32 HPLC ports
Specifications
Product Type: Tubing Connector Fitting
Material: PEEK (Natural)
Tubing Size: 1/16 inch
Thread Type: 10‑32
Design: Combihead (knurled + hex)
Pressure Range: High pressure (HPLC applications)
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
