Catalog Number - 48310-30

Improve fluid transfer performance with high‑purity PFA tubing designed for low‑pressure laboratory and analytical applications. This tubing provides excellent chemical resistance, dimensional stability, and flexibility, making it suitable for chromatography systems, solvent delivery lines, and general laboratory fluid handling where chemically inert flow paths are required.

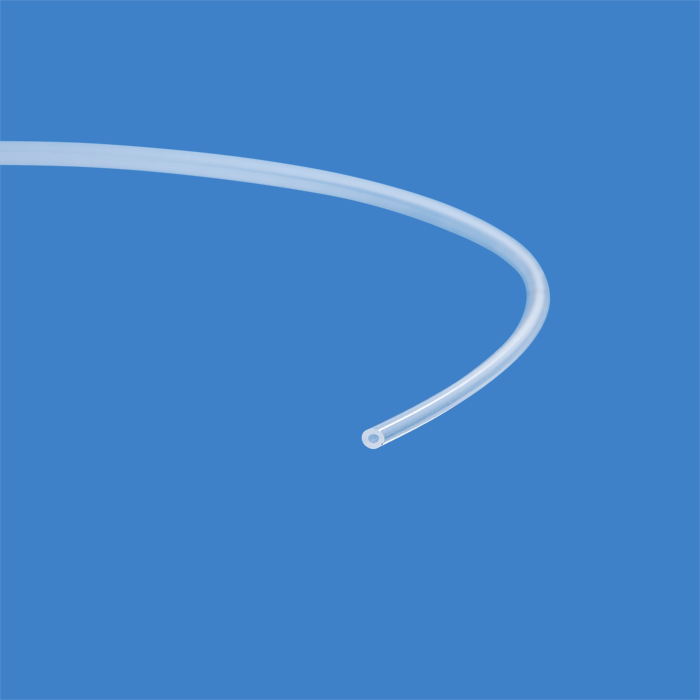

48310-30 tubing is manufactured from PFA (Perfluoroalkoxy Alkane), a fluoropolymer that shares many of the advantages of PTFE while offering lower permeability, greater transparency, and improved performance at elevated temperatures and pressures. The natural translucent construction allows visual monitoring of fluid movement, helping users identify bubbles and verify flow conditions during operation.

With an internal diameter of 0.75 mm and an outer diameter of 1.6 mm, this tubing is ideal for low‑pressure solvent transfer and fluid routing applications where increased internal volume may be beneficial. The tubing features a wall thickness of 0.425 mm and a pressure rating of 1075 psi (74.1 bar) under appropriate operating conditions. For safe operation and maximum service life, temperatures should not exceed 260°C.

This tubing complies with the RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 regarding the restriction of hazardous substances, supporting regulatory compliance in laboratory and industrial environments.

Key Benefits

• High‑purity PFA fluoropolymer construction

• Lower permeability than many comparable fluoropolymer materials

• Greater transparency for visual flow monitoring

• Excellent chemical resistance

• Suitable for elevated temperature and pressure applications

• Smooth internal surface promotes efficient fluid transfer

• Flexible and easy to install

• RoHS compliant material construction

Typical Applications

• HPLC fluid transfer lines

• Solvent delivery systems

• Laboratory fluid handling

• Chemical transfer applications

• Sample transport and analytical systems

• General low‑pressure tubing applications

Specifications

• Product Type: PFA Tubing

• Material: PFA (Perfluoroalkoxy Alkane)

• Inner Diameter (ID): 0.030" (0.75 mm)

• Outer Diameter (OD): 1/16" (1.6 mm)

• Wall Thickness: 0.425 mm

• Length: 5 Meter Roll

• Color: Natural, Translucent

• Pressure Rating: 1075 psi (74.1 bar)

• Dimensional Tolerance: ±0.10 mm

• Maximum Temperature: 260°C

• Quantity: 1 Roll

Compatibility

• Suitable for HPLC and laboratory fluid handling systems

• Compatible with many common laboratory solvents and reagents

• Appropriate for low‑pressure fluidic applications

• Can be used with compatible fluoropolymer tubing fittings and connectors

Performance and Design Notes

• More transparent than traditional PTFE tubing

• Lower permeability helps maintain fluid integrity

• Excellent chemical compatibility across a broad range of solvents

• Designed for reliable performance in analytical and laboratory environments

Additional Lengths Available

Choose the tubing length that best fits your laboratory setup, instrument configuration, or fluid path requirements:

• 48310-30-1M – PFA Tubing, 0.030" ID × 1/16" OD, 1 Meter Roll

• 48310-30-3M – PFA Tubing, 0.030" ID × 1/16" OD, 3 Meter Roll

• 48310-30-10M – PFA Tubing, 0.030" ID × 1/16" OD, 10 Meter Roll

• 48310-30-C – PFA Tubing, 0.030" ID × 1/16" OD, 25 Meter Roll

Need a custom length? Contact Customer Service for Custom‑Cut PFA Tubing, 0.030" ID × 1/16" OD to request tubing cut to your specified length requirements.

Important Notes

• Do not use at temperatures above 260°C

• Pressure ratings may vary with temperature and operating conditions

• RoHS EU Directive 2011/65/EU and Amendment (EU) 2015/863 compliant

• Multiple standard lengths are available to optimize tubing runs and reduce waste

  ---
