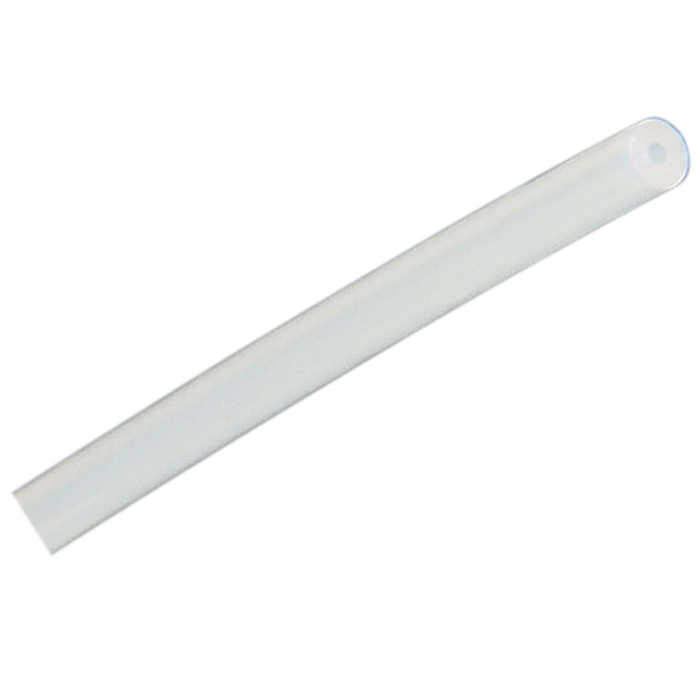

Tubing, PTFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-20-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution designed for HPLC, UHPLC, LC‑MS, and general laboratory applications, offering a larger internal diameter for increased flow capacity and reduced backpressure, making it well‑suited for extended solvent routing and higher flow applications.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring low extractables and compatibility with demanding analytical workflows.
Precision Dimensions – High Flow Optimization
Inner Diameter (ID): 0.020" (0.50 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.55 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID supports higher flow rates and reduced resistance vs. smaller ID tubing
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
General laboratory solvent transfer
Pressure Rating: 725 psi (49.9 bar)
✅ Suitable for longer runs and stable flow in higher‑volume applications
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace particles for manufacturing identification)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analytical work
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding laboratory and elevated temperature environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores that allow slight gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative tubing if gas impermeability is critical
Flexible & Durable Design
Flexible for extended routing and system integration
Durable for repeated lab use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient installation and maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety requirements
Available Length Options
✅ Select the length appropriate for your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Extended HPLC mobile phase delivery (pre‑pump)
High‑flow solvent routing
Solvent waste systems
Low‑pressure laboratory fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free connections
