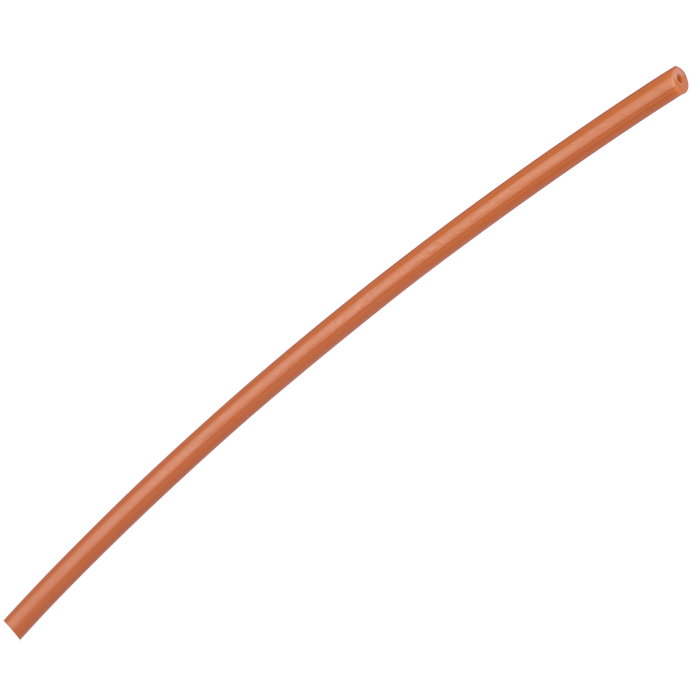

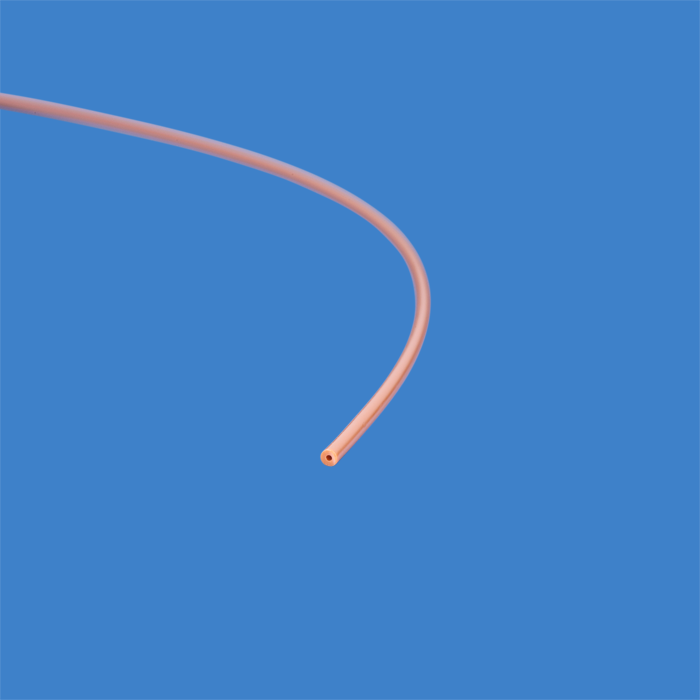

Tubing, PEEK, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, general grade, solid orange, 25 meter spool, ARE-Applied Research brand. 1 EA.
Additional Info:
This general grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography and laboratory fluidic applications.
The 49305‑20‑C tubing features a 0.020" (0.50 mm) ID with a 1/16" (1.6 mm) OD and solid orange color coding for tubing identification.
This tubing is supplied on a convenient spool for easier storage and handling. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Virgin PEEK tubing construction
Solid orange tubing identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Chemically resistant fluidic pathway
Flexible PEEK construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: General
Material: Virgin PEEK
Tubing ID: 0.020" (0.50 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.55 mm
Tolerance: ± 0.05 mm
Color: Solid orange
Pressure Rating: 4500 psi (310.3 bar)
Length: 25 meter spool
Applications
Analytical HPLC
LC‑MS systems
Laboratory fluidics
High‑pressure chromatography pathways
Usage Information
Designed for laboratory and chromatography applications
Supplied on a convenient spool
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
