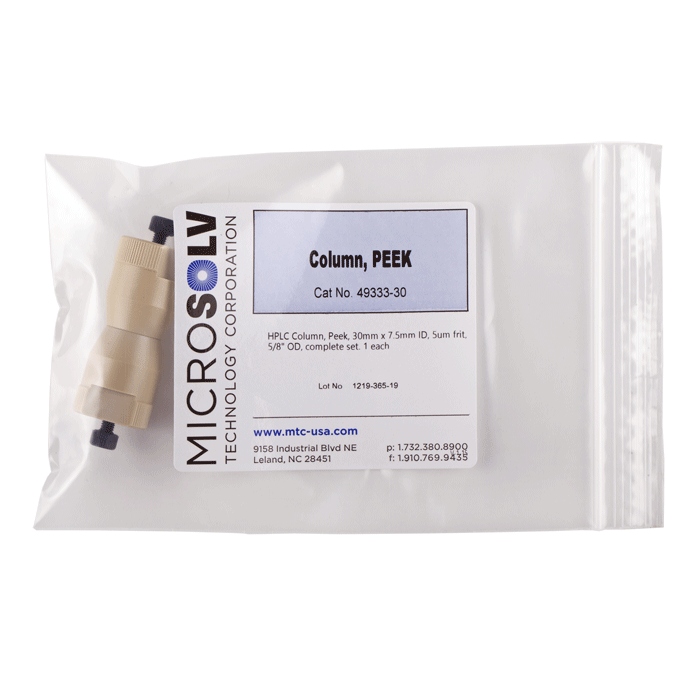

HPLC Column Set, PEEK with a 7.5 mm ID. Includes, a 30 mm x 7.5 mm black, column body tube (5/8-18 threads), plus 2 PEEK 5 um frits, 2 frit spacers & 2 end fittings. ARE-Applied Research brand. 1 EA.
Additional Info:
The 49333‑30 All‑PEEK HPLC Column Set is designed for professional column packers and preparative chromatographers who require bioinert, higher‑capacity column hardware for semi‑preparative separations. The 7.5 mm ID format enables increased loading capacity and throughput, while maintaining a completely metal‑free flow path.
PEEK (polyether ether ketone) column hardware eliminates unwanted interactions between analytes and stainless steel, making it ideal for proteins, peptides, nucleic acids, ions, and metal‑sensitive compounds, where recovery and reproducibility are critical.
✅ Why Choose All‑PEEK Column Hardware
True Bioinert Flow Path Prevents metal interaction with sensitive analytes
Higher Sample Loading Capacity (7.5 mm ID) Supports semi‑preparative and scale‑up applications
Improved Recovery & Peak Integrity Minimizes adsorption and secondary interactions
Pack Any Stationary Phase Full control over custom column packing
Reusable & Repackable Design Ideal for method development, scale‑up, and process optimization
Performance & Design
The column body is manufactured from extruded PEEK tubing using a proprietary process that creates a smooth, mirror‑like internal surface, supporting:
Uniform and reproducible packing
Reduced flow path disruption
Improved separation performance
This column is constructed from graphite-filled PEEK, where graphite is added prior to extrusion, not applied as a coating.
Key advantages:
No chemical coatings or treatments
Consistent internal chemistry
Durable black exterior for extended use
Included Components

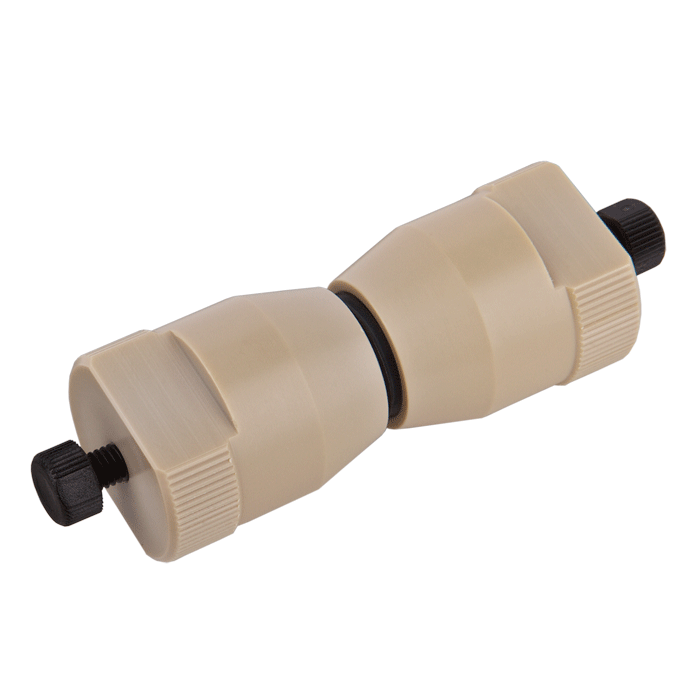

30 mm × 7.5 mm ID All‑PEEK column body (5/8‑18 threads)
2 × 5 µm PEEK frits
2 × frit spacers
2 × PEEK end fittings
Use Case Positioning
7.5 mm ID / 30 mm Length
High sample capacity with short bed length
Ideal for method scouting and scale‑up development
Enables rapid screening at semi‑preparative scale
Typical Applications
Semi‑Preparative Protein & Peptide Purification
Nucleic Acid Isolation and Analysis
Ion Chromatography of metal‑sensitive analytes
Scale‑up of analytical methods
Custom packing of preparative columns
Bioinert LC‑MS workflows
⚠️ When to Use PEEK Column Hardware
Select All‑PEEK columns when:
Analytes are sensitive to metal surfaces
Higher sample loading capacity is required
Working with biomolecules or coordination-sensitive compounds
Packing & Compatibility
For optimal performance:
Use with ARE‑Applied Research™ All‑PEEK slurry reservoir kits
Select frit porosity appropriate for particle size and scale
Maintain a fully bioinert packing environment
Read guidelines for packing All‑PEEK HPLC columns and achieving consistent column performance
Specifications
Hardware Type: All‑PEEK Column Set
Internal Diameter: 7.5 mm
Length: 30 mm
Thread Type: 5/8‑18
Material: Extruded PEEK (graphite‑filled)
Frits: 5 µm PEEK
Additional Components: Frit spacers included
Flow Path: Metal‑free (bioinert)
Surface Treatment: None (no coatings)
Reusability: Repackable
Brand: ARE‑Applied Research™
Unit: 1 Each
