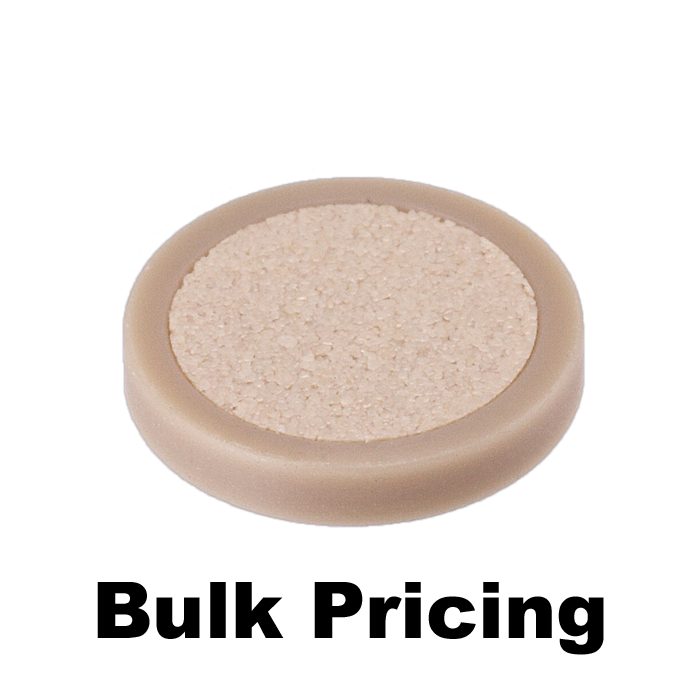

CUSTOM ITEM: Frit, PEEK, 5 um, for use with the 7.5 mm All-PEEK Column Packing System. EPP-Porous Products brand. Bulk Price.
Additional Info:

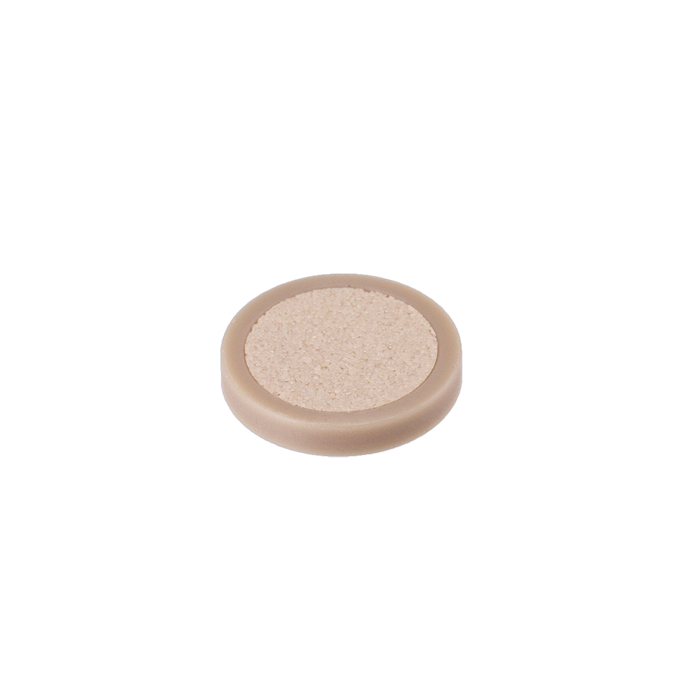

The 49333‑PF PEEK Frit is a precision porous retention component designed for use in 7.5 mm ID All‑PEEK HPLC column packing systems. Featuring a 5 µm pore size, this frit is optimized for semi‑preparative separations and higher-capacity column packing, where increased flow rates and larger particle sizes are commonly used.
Manufactured entirely from PEEK (polyether ether ketone), this frit provides a fully bioinert, metal‑free flow path, eliminating interactions with stainless steel surfaces. This makes it ideal for proteins, peptides, nucleic acids, ions, and metal‑sensitive compounds, where maintaining analyte integrity and recovery is critical.
✅ Key Benefits
5 µm Porosity for Semi‑Prep Applications Optimized for larger particle sizes and higher flow conditions
True Bioinert Construction (All‑PEEK) Eliminates metal interaction for sensitive analytes
Designed for 7.5 mm ID Columns Supports increased loading capacity and scale‑up workflows
Consistent Flow Distribution Ensures uniform solvent flow across the packed bed
Durable & Reusable Component Suitable for repeated column packing cycles
Performance & Design
This frit is manufactured from porous PEEK media, engineered to provide:
Controlled 5 µm pore structure for efficient particle retention
Low extractables for improved analytical cleanliness
Chemical compatibility with common HPLC solvents
The design supports:
Stable packing under semi‑preparative conditions
Reduced backpressure compared to smaller pore sizes
Reliable performance in higher flow rate environments
Dimensional Specifications
Outer Diameter (OD): 0.375 inch (~9.53 mm)
Inner Diameter (ID): 0.312 inch (~7.9 mm)
Pore Size: 5 µm
✔ Precision-fit for 7.5 mm ID All‑PEEK HPLC column hardware systems
System Role & Integration
This frit functions as a critical internal component within the column:
Retains stationary phase particles within the packed bed
Ensures uniform solvent flow distribution
Prevents channeling and bed instability
Used in conjunction with:
7.5 mm ID PEEK column body tubes
End fittings (10‑32 / 5/8‑18 systems)
Column packing and slurry reservoir systems
⚠️ Usage Guidance
Designed specifically for All‑PEEK 7.5 mm column hardware systems
Select frit pore size based on particle size of packing material
Ensure proper installation for consistent sealing and flow distribution
Use Case Positioning
Semi‑Preparative Column Packing Component (High Capacity / Higher Flow)
Ideal for column packers and purification workflows
Supports scale‑up from analytical to semi‑prep chromatography
Enables reliable, high-capacity bioinert separations
Typical Applications
Semi‑Preparative HPLC Column Packing (7.5 mm ID)
Protein & Peptide Purification
Nucleic Acid Isolation and Analysis
Scale‑Up of Analytical Methods
Pharmaceutical Method Development & QC
Bioinert LC and LC‑MS Workflows
Specifications
Product Type: Frit / Porous Retention Component
Material: All‑PEEK
Pore Size: 5 µm
Outer Diameter: 0.375 inch (~9.53 mm)
Inner Diameter: 0.312 inch (~7.9 mm)
Compatible Column ID: 7.5 mm
Flow Path: Bioinert / metal‑free
Brand: EPP‑Porous Products / ARE‑Applied Research™
Packaging: Bulk (Custom Item)
