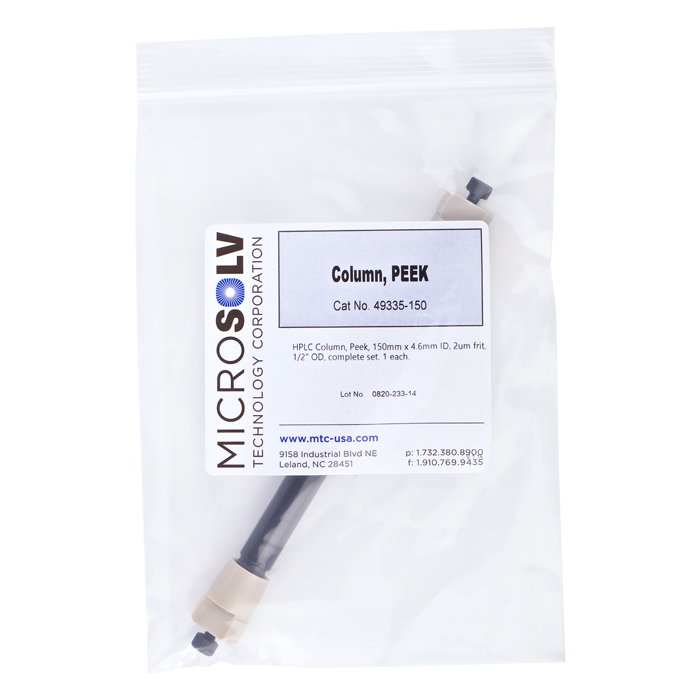

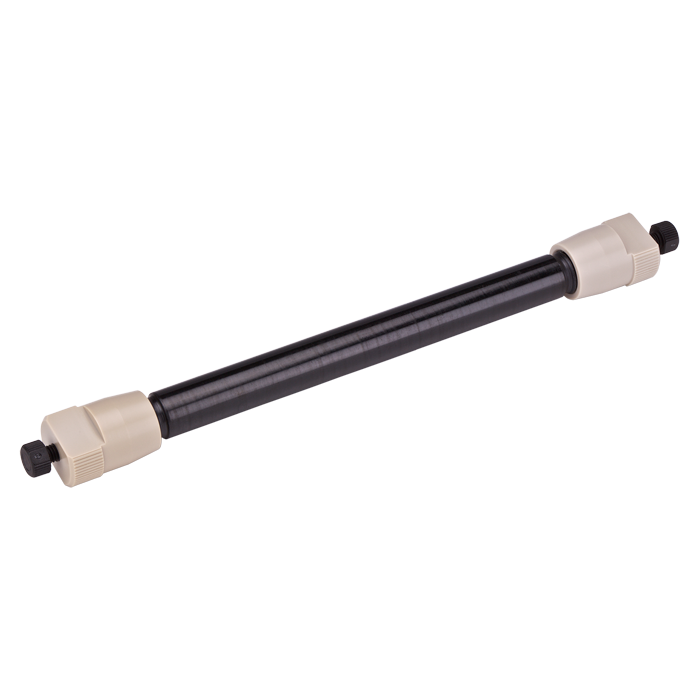

HPLC Column Set, PEEK with a 4.6 mm ID. Includes, a 150 mm x 4.6 mm black, column body tube (1/2-20 threads), plus 2 PEEK 2 um frits & 2 end fittings. ARE-Applied Research brand. 1 EA.
Additional Info:
The 49335‑150 All‑PEEK HPLC Column Set is designed for professional column packers and advanced chromatographers who require maximum control over bioinert column construction. The 150 mm length configuration is ideal for high-resolution analytical separations where enhanced peak capacity and separation efficiency are critical.
PEEK (polyether ether ketone) column hardware provides a completely metal‑free flow path, eliminating unwanted interactions with stainless steel that can affect sensitive analytes. This makes it the preferred solution for proteins, peptides, nucleic acids, ions, and metal‑sensitive small molecules, ensuring improved recovery and reproducibility.
✅ Why Choose All‑PEEK Column Hardware
True Bioinert Flow Path Eliminates metal interactions for sensitive compounds
Improved Recovery & Peak Shape Minimizes adsorption and secondary surface effects
Pack Any Stationary Phase Full flexibility for custom column development
Reusable & Repackable Design Supports method development and optimization workflows
Standard 1/2‑20 Thread Format Compatible with common 4.6 mm HPLC packing systems
Performance & Design
The column body is manufactured using a proprietary extrusion process that produces a smooth, mirror‑like internal surface, enabling:
Highly consistent packing
Reduced flow path disruption
Improved chromatographic efficiency
The material is graphite-filled PEEK, where graphite is incorporated during extrusion, not applied afterward.
Key advantages:
No chemical coatings or surface treatments
Uniform internal chemistry for reproducibility
Durable black finish that maintains appearance over time

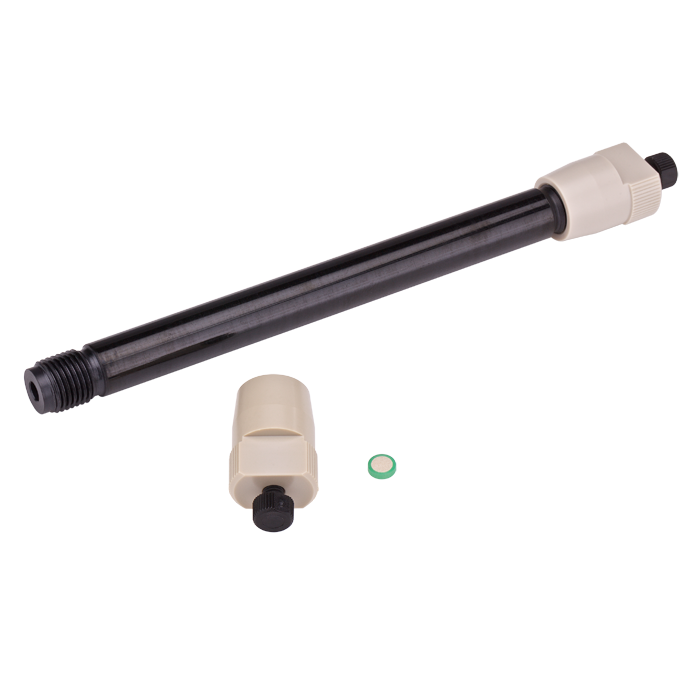

Included Components
150 mm × 4.6 mm ID All‑PEEK column body (1/2‑20 threads)
2 × 2 µm PEEK frits
2 × PEEK end fittings
Use Case Positioning
4.6 mm ID / 150 mm Length
Maximum resolution and peak capacity
Ideal for complex separations and method validation
Higher separation efficiency vs shorter column lengths
Typical Applications
Protein & Peptide Separations
Nucleic Acid Analysis
Ion Chromatography
Pharmaceutical Method Development & Validation
Custom Stationary Phase Evaluation
LC‑MS Workflows requiring metal‑free flow paths
⚠️ When to Use PEEK Column Hardware
Select All‑PEEK columns when:
Analytes may adsorb to or react with stainless steel
Maximum recovery, sensitivity, and reproducibility are required
Working with biomolecules or coordination-sensitive compounds
Packing & Compatibility
For optimal performance:
Use with ARE‑Applied Research™ All‑PEEK slurry reservoir kits
Select frit porosity appropriate for particle size
Maintain a fully bioinert packing environment
Read guidelines for packing All‑PEEK HPLC columns and achieving consistent column performance
Specifications
Hardware Type: All‑PEEK Column Set
Internal Diameter: 4.6 mm
Length: 150 mm
Thread Type: 1/2‑20
Material: Extruded PEEK (graphite‑filled)
Frits: 2 µm PEEK
Flow Path: Metal‑free (bioinert)
Surface Treatment: None (no coatings)
Reusability: Repackable
Brand: ARE‑Applied Research™
Unit: 1 Each
