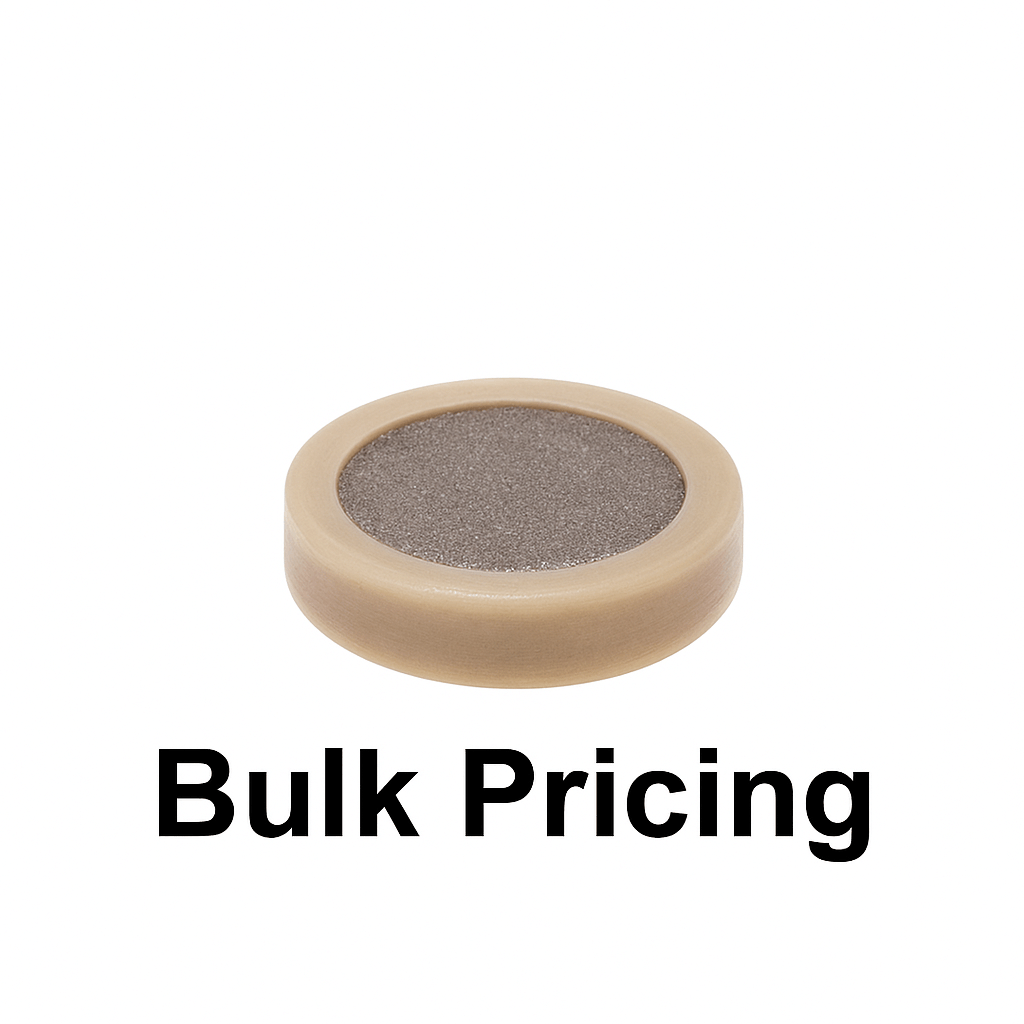

CUSTOM ITEM: Frit, Titanium, 2 um, Encased in PEEK, 0.250 inch diameter, 0.181 ID, 0.062 inch thick, EPP-Porous Products brand. Bulk Price.
Additional Info:
The 49347‑T‑02 Titanium Frit is a precision porous filter disc designed for HPLC column and inline filtration applications where bioinert performance is required. Featuring a 2 µm pore size and a PEEK encasement ring, this frit provides efficient particle retention with reduced dead volume and improved sealing.
Unlike stainless steel frits, the titanium porous element does not introduce metal interactions associated with stainless steel, making it suitable for biomolecules and metal‑sensitive compounds.
✅ Key Benefits
2 µm Porosity Effective retention for fine particles and analytical packing materials
Bioinert Titanium Media Suitable for proteins, peptides, and sensitive analytes
PEEK Encased Design Provides secure sealing and reduces dead volume
Improved Flow Distribution Minimizes band spreading and supports consistent performance
Performance & Design
Porous titanium filter media provides:
Mechanical strength
Chemical resistance
Stable pore structure
PEEK encasement ring:
Ensures proper seating in hardware
Improves sealing integrity
Reduces extra-column volume
Dimensions
Outer Diameter (OD): 0.250 inch
Inner Diameter (ID): 0.181 inch
Thickness: 0.062 inch
Pore Size: 2 µm
System Role & Integration
Retains stationary phase particles
Enables uniform solvent flow
Reduces band broadening and dispersion
Used in:
HPLC column hardware
Inline filter housings
Bioinert fluidic systems
⚠️ Usage Notes
Recommended for bioinert workflows without stainless steel exposure
Select pore size based on particle size and flow requirements
Specifications
Product Type: Frit / Porous Filter Disc
Material: Titanium (porous) with PEEK encasement
Pore Size: 2 µm
Outer Diameter: 0.250 inch
Inner Diameter: 0.181 inch
Thickness: 0.062 inch
Flow Path: Bioinert (no stainless steel exposure)
Brand: EPP‑Porous Products™
Packaging: Bulk / Custom Item
Made‑to‑Order & Pricing Information
