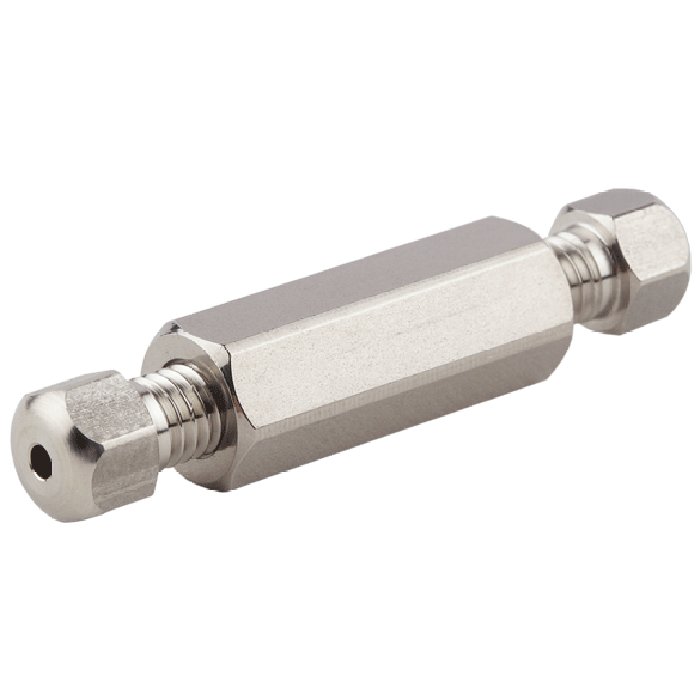

Union, Connector Kit, high pressure, 0.50 mm / 0.020 inch through hole with 10-32 mm screw threads. Stainless steel, straight line. Use with 1/16 inch tubing. ARE-Applied Research brand. 1/each.
Additional Info:
High‑pressure stainless steel union connector kits are designed for connecting 1/16" tubing in analytical HPLC systems requiring durable, high‑strength fluidic components. The low dead volume 0.50 mm (0.020") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 49402‑02 straight‑line union kit is suitable for connecting either PEEK or stainless‑steel tubing in high‑pressure zones of HPLC systems and related laboratory fluid handling applications.
This kit is supplied with two stainless steel wrench‑tighten connectors and matching ferrules (49590‑10) for secure installation and reliable sealing performance.
Key Benefits
Low dead volume union design
Stainless steel straight‑line union configuration
Includes stainless steel wrench‑tighten connectors and ferrules
Compatible with PEEK or stainless‑steel tubing
Standard 10‑32 screw thread compatibility
Durable stainless steel construction
Suitable for analytical HPLC applications

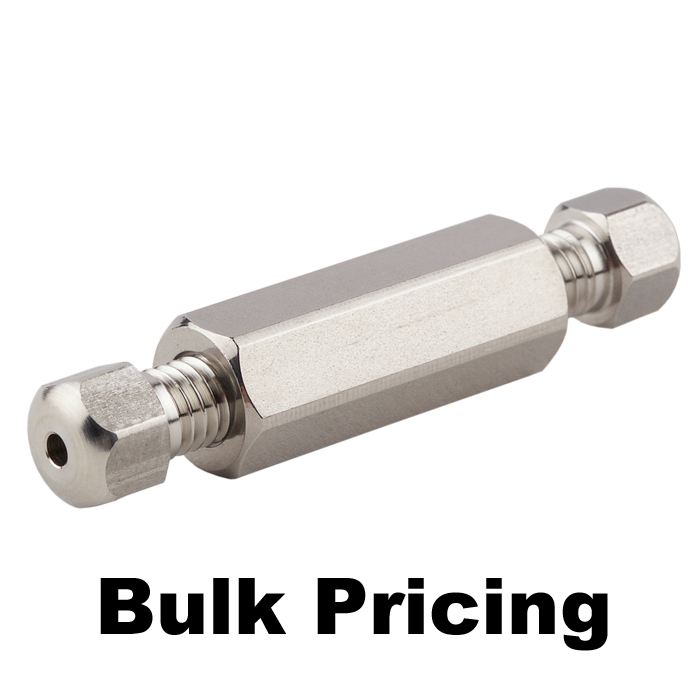

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure union connector kit
Material: Stainless steel
Through Hole Diameter: 0.50 mm / 0.020"
Thread: 10‑32
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Included Components: Two stainless steel wrench‑tighten connectors and matching ferrules 49590‑10
Pack Size: 1 each
Usage Notes
For high‑pressure HPLC applications
Designed for connecting 1/16" tubing
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical HPLC systems
Stainless steel construction for high durability
Not recommended for UHPLC applications
