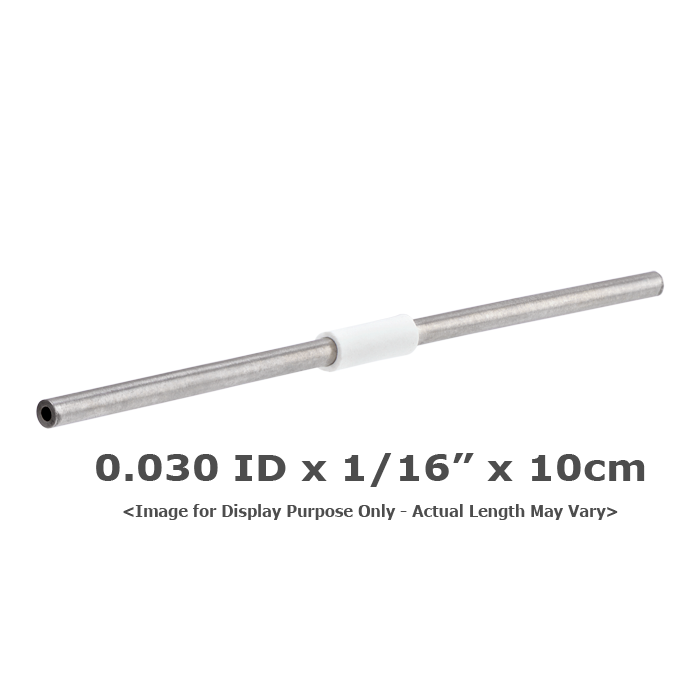

Tubing, Stainless Steel, Pre-Cut, 0.030 (0.75 mm) inch ID, 1/16 inch (1.60 mm) OD, HPLC grade, white band, 10 cm long. ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research HPLC Grade Pre-Cut Stainless Steel tubing is manufactured from high-purity 316L stainless steel and designed for high-pressure chromatography applications where precision connections are critical. Producing square, burr-free tubing cuts in the laboratory can be difficult and time-consuming, often leading to dead volume, leaks, or compromised chromatographic performance. These pre-cut tubing assemblies eliminate those concerns by providing professionally prepared tubing lengths ready for installation.
49430-10 is a 10 cm pre-cut stainless steel tube with a 0.030 inch (0.75 mm) internal diameter and a 1/16 inch (1.60 mm) outer diameter. The larger internal diameter supports higher flow rates and lower flow restriction, making it suitable for applications that require greater solvent or sample transfer volumes while maintaining reliable chromatographic performance. The white identification band provides quick visual confirmation of the 0.030 inch internal diameter, simplifying tubing selection and system maintenance.
Manufactured from welded and annealed 316L stainless steel, each tube is cut using Electronic Discharge Cutting (EDC) technology to produce square, burr-free ends that support true zero dead volume connections. Tubing is manufactured and tested according to EN 10217-7 standards for quality, consistency, and dependable operation in demanding laboratory environments.
Key Benefits
Precision pre-cut tubing eliminates manual cutting
Electronic Discharge Cutting (EDC) provides square, burr-free ends
Supports zero dead volume connections
White band identification for 0.030 inch ID tubing
HPLC-grade 316L stainless steel construction
Manufactured and tested to EN 10217-7 standards
Excellent corrosion resistance
Suitable for higher-flow chromatography applications
Typical Applications
HPLC systems
Solvent transfer lines
Detector connections
Injector-to-column connections
Analytical fluid pathways
Method development systems
High-flow chromatography applications
System optimization and replacement tubing
Specifications
Product Type: Pre-Cut Stainless Steel Tubing
Material: 316L Stainless Steel
Internal Diameter: 0.030 in. (0.75 mm)
Outer Diameter: 1/16 in. (1.60 mm)
Length: 10 cm
Color Code: White Band
Wall Thickness: 0.414 mm
Manufacturing Standard: EN 10217-7
Cutting Method: Electronic Discharge Cutting (EDC)
Dimensional Tolerance: ±0.05 mm
Brand: ARE-Applied Research
Important Notes
Ready-to-install pre-cut tubing
Square, burr-free ends for improved connections
Supports zero dead volume fitting assemblies
White band identifies 0.030 inch internal diameter
Manufactured from corrosion-resistant 316L stainless steel
Suitable for HPLC applications
Manufactured and tested to EN 10217-7 standards
