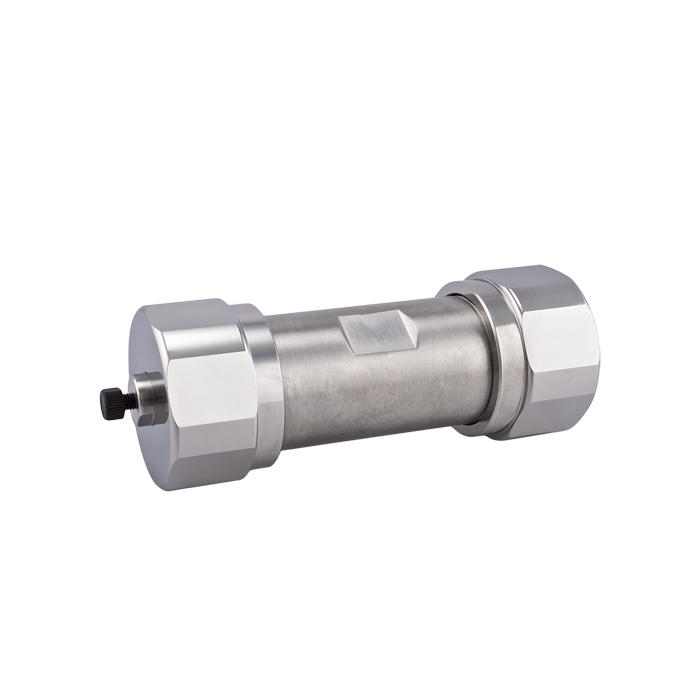

Prep HPLC Column, RP PFP, 10um, 100A. 30mm ID x 100mm Length. Cogent Brand. 1 EA.
Additional Info:
68022-P30-100 Cogent RP PFP™ Prep HPLC Column has been a premium value trusted by HPLC laboratories for many years, delivering consistent performance and enhanced selectivity for large‑scale preparative and purification workflows. This column is fully double end‑capped and bonded via a four‑carbon linker to a benzene ring substituted with five fluorine atoms, using high purity 100 Å silica.
The column provides multiple retention mechanisms—including π‑π interactions, dipole interactions, and hydrogen bonding—making it highly effective for halogenated, aromatic, and polar analytes. These mechanisms improve separation of structurally similar compounds and support efficient purification in large‑scale applications.
With a 10 µm particle size, this column provides very low backpressure, enabling higher flow rates and improved compatibility with large‑diameter preparative HPLC systems.
100 mm Length – Balanced Performance for Large‑Scale Purification
The 100 mm length offers an ideal balance between resolution and throughput in high‑capacity preparative workflows.
Improved resolution compared to 50 mm columns
Faster cycle times than longer preparative formats
Increased peak capacity for moderately complex mixtures
✅ Recommended for routine purification and process‑scale method development
Flow Rate & System Requirements (30 mm ID, 10 µm)
⚠️ Requires preparative or process‑scale HPLC system capability
Typical flow rate range: ~20 – 60 mL/min
Extremely low backpressure vs 5 µm and 3 µm columns
Designed for very high‑flow preparative operation
Compatible with large‑scale fraction collection systems
✅ Important: A specialized preparative or process‑scale HPLC system is required for columns of this size
✅ Best Practice: Use appropriate sample filtration and a matched RP PFP guard column cartridge to protect the column and maintain performance
Why Choose PFP (F5) Columns for Preparative Work
Enhanced Selectivity for Complex Mixtures
Strong interaction with halogenated and fluorinated compounds
Improved selectivity vs traditional C18 columns
Multiple Interaction Mechanisms
π‑π interactions for aromatic compounds
Dipole and hydrogen bonding interactions
Greater flexibility for purification method development
100 Å Pore Structure
Suitable for small to moderately sized molecules
Consistent performance from analytical to large‑scale preparative systems
Cogent RP PFP™ Column Advantages
Fully End‑Capped Surface
Minimizes silanol activity
Improves peak symmetry and compound recovery
Ultra‑Low Backpressure (10 µm Particles)
Enables very high flow operation
Reduces strain on large‑scale HPLC systems
High Purity Silica
Reliable and reproducible chromatographic performance
Consistent purification results at scale
Typical Applications
Large‑scale preparative HPLC purification
Process-scale compound isolation
Halogenated compound purification
Aromatic compound separations
Pharmaceutical production and scale‑up
Important Usage Notes
Packed and shipped in reversed‑phase solvents
Requires preparative or process‑scale HPLC system capability
Designed for high‑flow operation (30 mm ID columns)
Made‑to‑Order Columns & Pricing Information
This is a custom, made‑to‑order column.
Columns are manufactured specifically to order
Orders cannot be canceled once placed
Custom columns are non‑returnable
