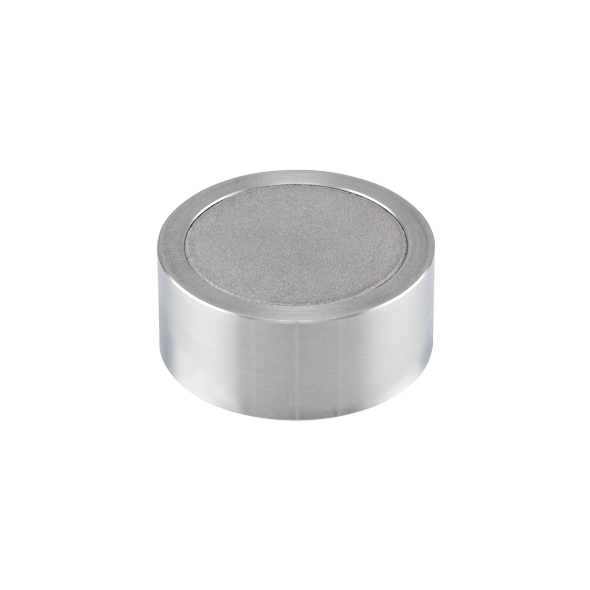

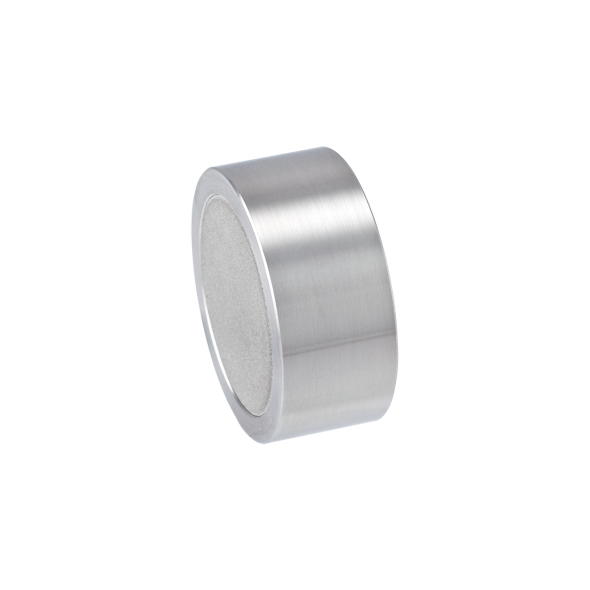

Prep Guard Column Cartridge, RP PFP, 10um, 100A. 30mm ID x 10mm Length. Cogent Brand. 1 EA.
Additional Info:
68022-P30-PG1 Cogent RP PFP™ Guard Column Cartridge is designed to protect large‑scale preparative HPLC columns from particulates and strongly retained contaminants that can degrade column performance and shorten operational life. Packed with 10 µm Cogent RP PFP™ material, this guard cartridge provides matched selectivity with minimal added backpressure.
The packing material is fully double end‑capped and bonded via a four‑carbon linker to a benzene ring substituted with five fluorine atoms, using high purity 100 Å silica. This ensures consistent chromatography and preserves separation integrity during high‑flow preparative operations.
Constructed in a durable stainless steel tube with stainless steel frits, this cartridge is engineered to withstand the demanding pressures and flow rates of large‑scale purification systems.
30 mm ID × 10 mm Length – Large‑Scale Prep Column Protection
Designed specifically for 30 mm ID preparative columns, this guard cartridge minimizes contamination while maintaining system efficiency.
Protects against particulates and sample matrix fouling
Extends lifespan of high-value prep columns
Preserves RP PFP selectivity in purification workflows
✅ Recommended for large‑scale preparative workflows using 30 mm ID RP PFP columns
Flow Rate & System Requirements (30 mm ID, 10 µm)
⚠️ Requires preparative or process-scale HPLC system capability
Typical flow rate range: ~20 – 60 mL/min
Extremely low backpressure due to 10 µm particle size
Designed for very high‑flow preparative operation
Compatible with large‑scale fraction collection systems
✅ Important: A specialized preparative HPLC system is required for columns of this size
✅ Required Hardware: Use with a 30 mm ID preparative guard column holder (see Guard Column Holder product page for compatibility and specifications)
Why Use RP PFP Guard Columns
Column Protection
Prevents contamination and particulate buildup
Reduces irreversible adsorption on prep columns
Maintains Selectivity
Matches RP PFP column chemistry
Ensures consistent purification performance
Improves Operational Efficiency
Reduces downtime and maintenance frequency
Extends column lifetime in high-throughput environments
Cogent RP PFP™ Guard Cartridge Advantages
Matched Chemistry
Same selectivity as RP PFP preparative columns
Durable Construction
Stainless steel housing and frits for high-flow use
Ultra-Low Backpressure (10 µm Particles)
Ideal for large-scale and process HPLC
Typical Applications
Large‑scale preparative HPLC purification
Process-scale compound isolation
Halogenated compound separations
Aromatic compound purification
Pharmaceutical production and scale‑up
Important Usage Notes
Designed for use with 30 mm ID preparative guard column holders
Packed and shipped in reversed‑phase solvents
Requires preparative/system-scale HPLC capability
Replace guard cartridges regularly to maintain system performance
Made‑to‑Order Columns & Pricing Information
This is a custom, made‑to‑order column.
Columns are manufactured specifically to order
Orders cannot be canceled once placed
Custom columns are non‑returnable
