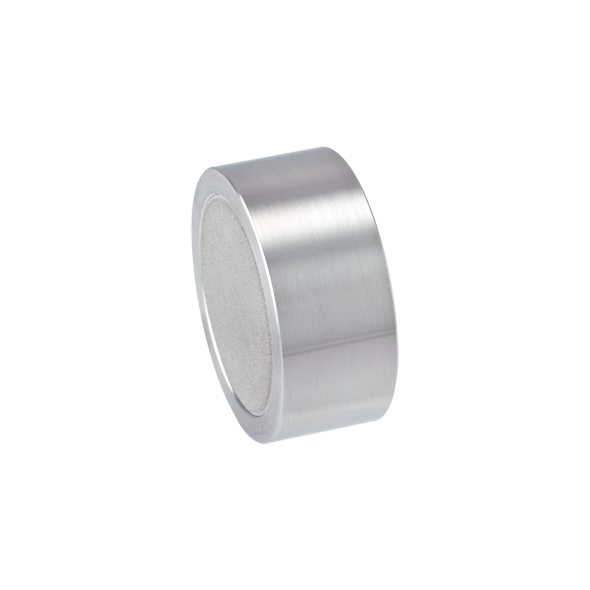

Prep Guard Column Cartridge, RP PFP, 5um, 100A. 30mm ID x 10mm Length. Cogent Brand. 1 EA.
Additional Info:
68522-P30-PG1 Cogent RP PFP™ Guard Column Cartridge is designed to protect large‑scale preparative HPLC columns from particulates and strongly retained contaminants that can degrade performance and shorten column life. Packed with 5 µm Cogent RP PFP™ material, this guard cartridge provides matched selectivity to the preparative column it protects.
The packing material is fully double end‑capped and bonded via a four‑carbon linker to a benzene ring substituted with five fluorine atoms, using high purity 100 Å silica. This ensures consistent chromatographic behavior and preserves method integrity during preparative separations.
Constructed in a robust stainless steel tube with stainless steel frits, this guard cartridge is engineered for durability under high‑flow preparative HPLC conditions.
30 mm ID × 10 mm Length – Large‑Scale Prep Column Protection
This guard column cartridge is optimized for use with 30 mm ID preparative columns, providing effective protection with minimal impact on flow or pressure.
Protects against particulates and strongly retained contaminants
Extends the lifespan of high‑value preparative columns
Maintains RP PFP selectivity during purification
✅ Recommended for large‑scale preparative workflows using 30 mm ID RP PFP columns
Flow Rate & System Requirements (30 mm ID, 5 µm)
⚠️ Requires preparative or purification HPLC system capability
Typical flow rate range: ~20 – 50 mL/min
Designed for very high‑flow preparative applications
Low additional backpressure relative to the main column
Compatible with large‑scale fraction collection systems
✅ Important: A specialized preparative HPLC system is required for columns of this size
✅ Required Hardware: Use with a 30 mm ID preparative guard column holder (see Guard Column Holder product page for compatibility and system requirements)
Why Use RP PFP Guard Columns
Column Protection
Prevents contamination of high‑value preparative columns
Reduces irreversible adsorption and fouling
Maintains Selectivity
Matches RP PFP column chemistry
Ensures consistent purification results
Improves Efficiency
Reduces downtime and column replacement
Extends column life in high‑throughput environments
Cogent RP PFP™ Guard Cartridge Advantages
Matched Chemistry
Same selectivity as RP PFP preparative columns
Durable Construction
Stainless steel housing and frits for high‑flow operation
Optimized Performance (5 µm Particles)
Balanced efficiency for preparative workflows
Typical Applications
Large‑scale preparative HPLC purification
Process-scale compound isolation
Halogenated compound separations
Aromatic compound purification
Pharmaceutical production and scale‑up
Important Usage Notes
Designed for use with 30 mm ID preparative guard column holders
Packed and shipped in reversed‑phase solvents
Requires preparative HPLC system capability
Replace guard cartridges regularly to maintain optimal performance
Made‑to‑Order Columns & Pricing Information
This is a custom, made‑to‑order column.
Columns are manufactured specifically to order
Orders cannot be canceled once placed
Custom columns are non‑returnable
