Semi Prep Guard Column Cartridge, RP PFP, 5um, 100A. 10mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Info:

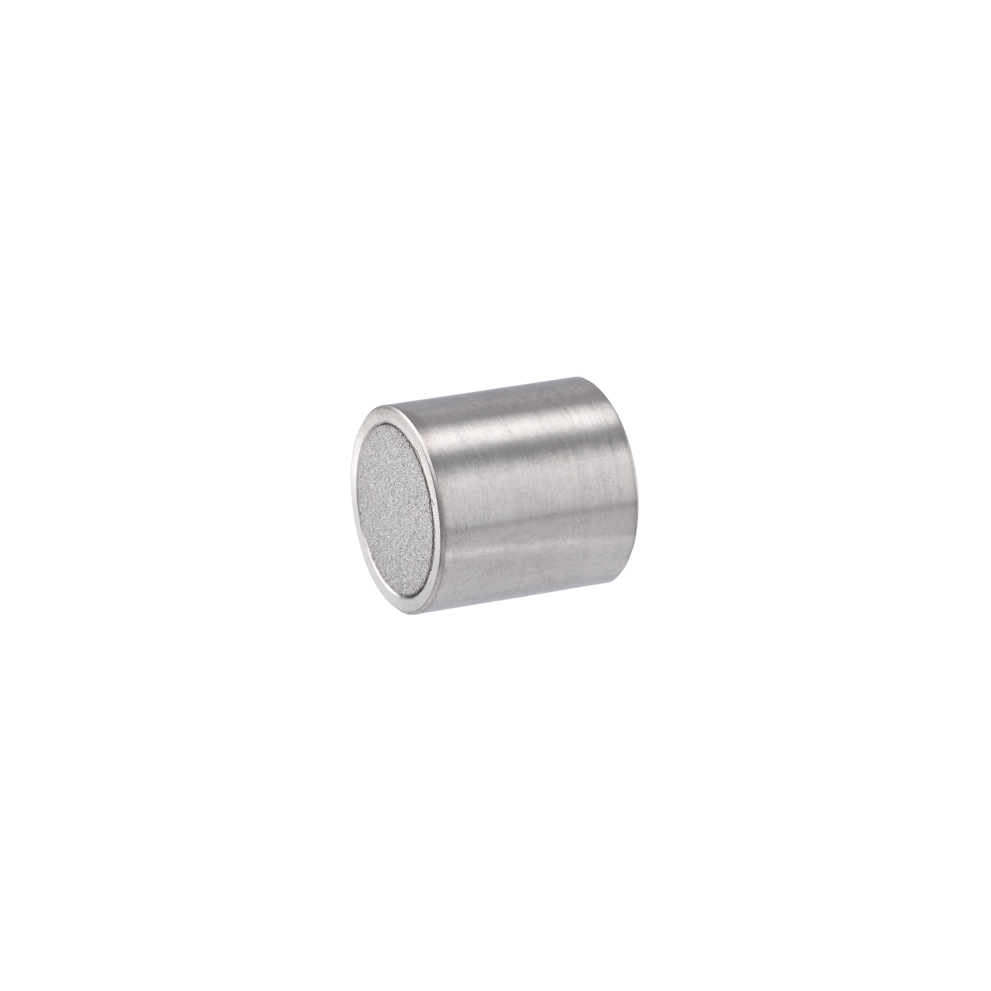

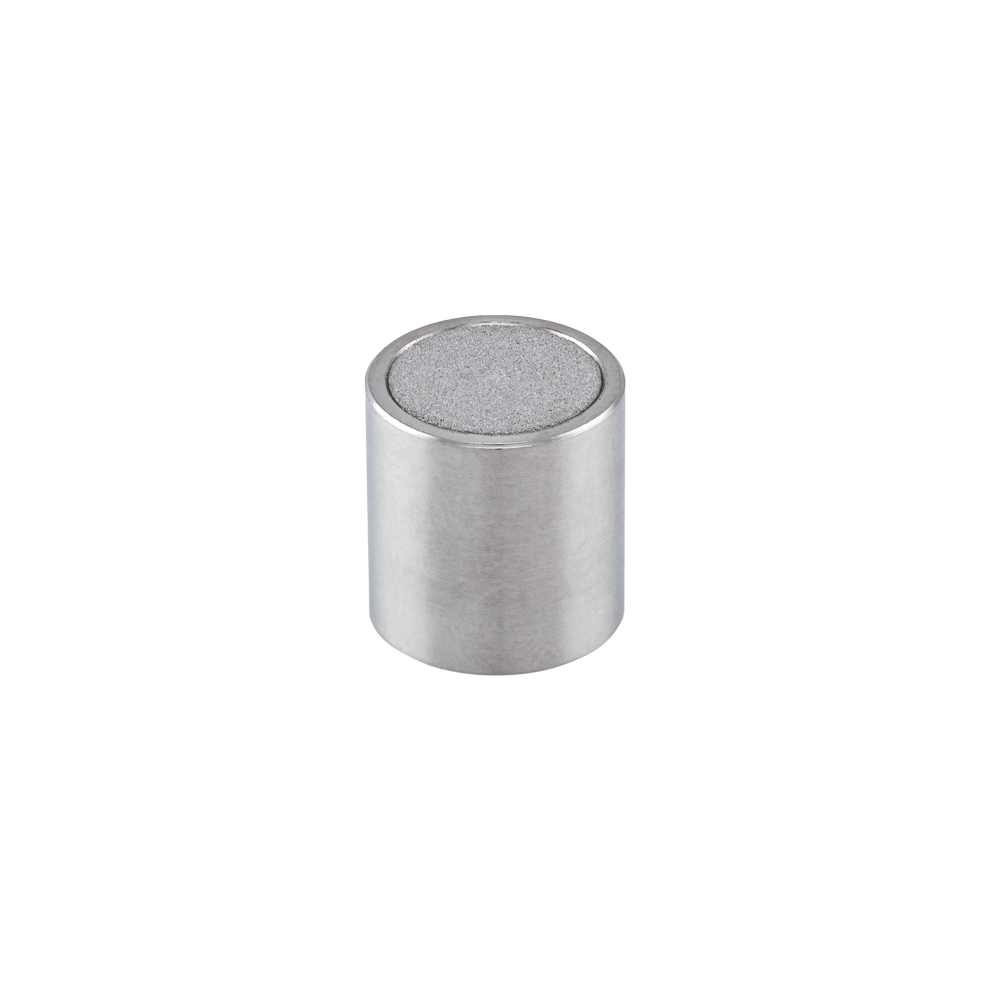

68522-SP-PG1 Cogent RP PFP™ Guard Column Cartridge is designed to protect semi‑prep HPLC columns from particulate matter and strongly retained contaminants that can degrade column performance over time. Packed with 5 µm Cogent RP PFP™ material, this guard cartridge delivers the same selectivity characteristics as analytical and preparative PFP columns.
The packing material is fully double end‑capped and bonded via a four‑carbon linker to a benzene ring substituted with five fluorine atoms, using high purity 100 Å silica. This allows the guard cartridge to maintain consistent retention behavior while extending the life of the main column.
Each cartridge is packed in a durable stainless steel tube with stainless steel frits to ensure mechanical strength and reliable performance under semi‑prep flow conditions.
10 mm ID × 10 mm Length – Semi‑Prep Column Protection
This guard column format is optimized for use with 10 mm ID semi‑prep columns, providing effective protection without significantly impacting system backpressure or chromatographic performance.
Protects against particulates and strongly retained contaminants
Extends lifespan of semi‑prep analytical columns
Maintains consistent selectivity with RP PFP columns
✅ Recommended for all semi‑prep workflows using 10 mm ID RP PFP columns
Flow Rate & System Requirements (10 mm ID, 5 µm)
⚠️ Requires semi‑preparative or preparative HPLC system capability
Typical flow rate range: ~3.0 – 5.0 mL/min
Designed for higher flow semi‑prep applications
Low added backpressure relative to column
Compatible with preparative detectors and fraction collection systems
✅ Required Hardware: Use with a 10 mm ID guard column holder (see Guard Column Holder product page for compatibility and specifications)
Why Use RP PFP Guard Columns
Column Protection
Prevents buildup of contaminants on analytical column
Reduces risk of irreversible adsorption
Maintains Selectivity
Matches RP PFP column chemistry
Preserves method consistency
Improves Method Reliability
Reduces downtime and column replacement frequency
Enhances reproducibility for long sequences
Cogent RP PFP™ Guard Cartridge Advantages
Matched Chemistry
Same selectivity as RP PFP analytical and semi‑prep columns
Durable Construction
Stainless steel body and frits for high flow operation
High Purity Silica
Consistent chromatographic performance
Typical Applications
Semi‑prep HPLC workflows
Method development and scale‑up
Halogenated compound separations
Aromatic compound purification
Pharmaceutical preparative analysis
Important Usage Notes
Designed for use with 10 mm ID prep column holders
Packed and shipped in reversed‑phase solvents
Requires semi‑prep or preparative HPLC system
Replace guard cartridges regularly to maintain performance
Made‑to‑Order Columns & Pricing Information
This is a custom, made‑to‑order column.
Columns are manufactured specifically to order
Orders cannot be canceled once placed
Custom columns are non‑returnable
