Catalog Number - 75040-P150

Cogent HPS Amino™ Preparative HPLC Columns are designed for high-capacity purification of highly polar compounds using Normal Phase and HILIC chromatography modes. Manufactured using tri-functional bonding of a three-carbon silane with a terminal amino functional group bonded to high-purity silica, this stationary phase is not end capped and provides the selectivity needed for challenging separations of sugars, carbohydrates, organic acids, and other polar analytes. HPS Amino™ is particularly useful for preparative applications where conventional reversed-phase columns may not provide adequate retention or selectivity.

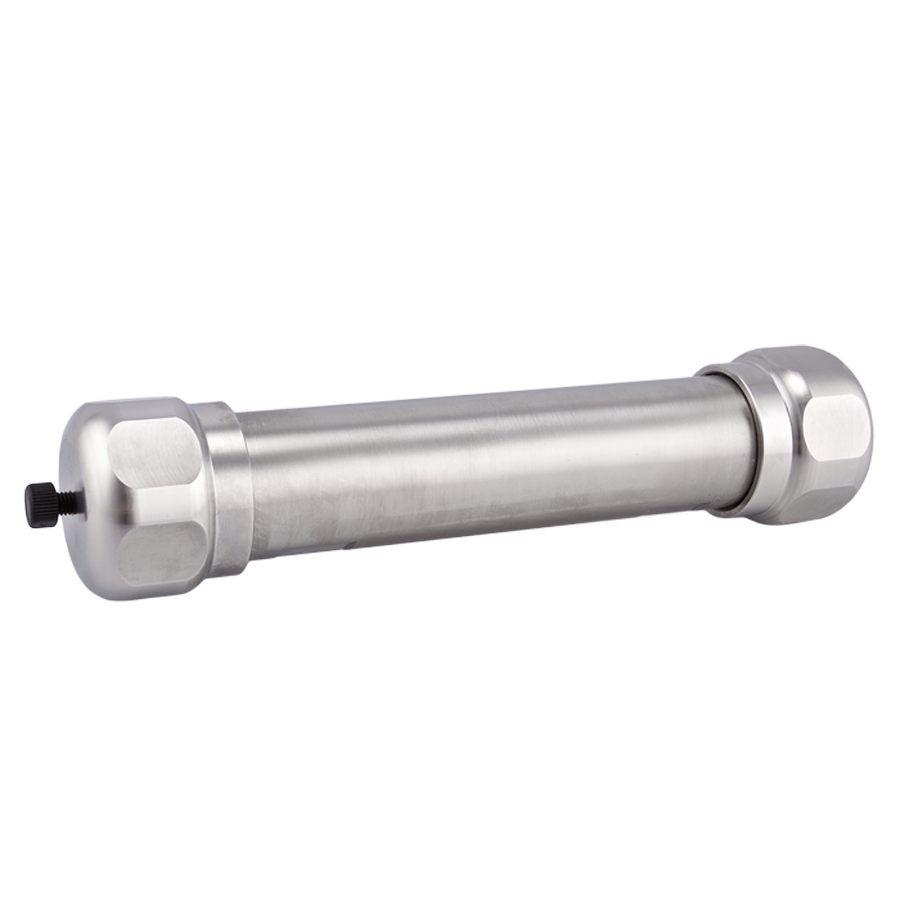

75040-P150 is packed with 5 µm HPS Amino™ particles in a 21.2 mm ID x 150 mm preparative format. The 5 µm particle size provides excellent chromatographic efficiency while maintaining lower operating backpressure than smaller particles. The large 21.2 mm internal diameter allows substantial sample loading capacity, while the 150 mm length provides enhanced resolution and peak capacity for more demanding purification applications and method scale-up workflows.

The HPS Amino™ stationary phase is especially effective for negatively charged polar compounds, including sugars and compounds containing carboxylic acid functional groups. Commonly used in both Normal Phase and HILIC chromatography, this column provides excellent retention and selectivity for analytes that can be difficult to separate using traditional reversed-phase methods. The additional column length supports improved separation performance while maintaining efficient preparative throughput.

Key Benefits

• HPS Amino™ stationary phase

• Tri-functional amino bonding

• High-purity silica support

• USP L8 equivalent chemistry

• 5 µm preparative particle size

• Suitable for HILIC separations

• Suitable for Normal Phase chromatography

• Lower operating backpressure

• High loading capacity

• Enhanced resolution for preparative purification

Typical Applications

• Preparative HPLC

• HILIC chromatography

• Normal Phase chromatography

• Sugar purification

• Carbohydrate purification

• Organic acid purification

• Polar compound isolation

• Fraction collection

• Method scale-up

• Process development

Specifications

• Product Type: Preparative HPLC Column

• Stationary Phase: HPS Amino™

• USP Classification: L8

• Chromatography Modes: HILIC and Normal Phase

• Particle Size: 5 µm

• Pore Size: 120Å

• Column Dimensions: 21.2 mm ID x 150 mm

• Recommended Flow Rate: 15–30 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for HILIC and Normal Phase chromatography

• USP L8 equivalent chemistry

• Not end capped

• Designed for polar and negatively charged compounds

• Excellent for sugars and compounds containing carboxylic acid groups

• High loading capacity for preparative applications

• 21.2 mm ID format requires a specialized preparative HPLC system

• Recommended flow rate range is approximately 15–30 mL/min

• 150 mm length provides enhanced resolution and peak capacity

• Comparable in selectivity to commonly used amino columns from Inertsil™ and Luna™ product families

• This is a Special Order Item

  ---
