Catalog Number - 82561-P50-50

Cogent NP Silica™ Process HPLC Columns are designed for large-scale purification, process chromatography, and production applications involving lipids, polar compounds, and hydrophilic analytes. Manufactured from ultra-high purity, low-metal-content 100 Å silica, this stationary phase is completely unmodified, providing the traditional selectivity associated with USP L3 classified silica. NP Silica™ is widely used when maximum silica activity is desired for normal-phase and HILIC purification methods.

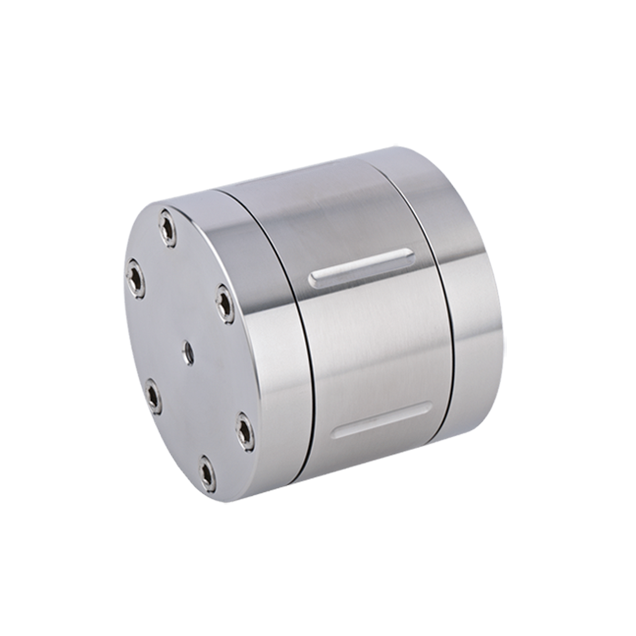

82561-P50-50 is packed with 5 µm NP Silica™ particles in a 50 mm ID x 50 mm process-scale format. The 5 µm particle size supports high process flow rates while producing lower backpressure than smaller particle columns. The large internal diameter provides extremely high sample loading capacity, while the short column length minimizes run times and solvent consumption for rapid purification and production-scale method development.

The 50 mm ID x 50 mm format is well suited for process HILIC and normal-phase chromatography involving hydrophilic and polar compounds. Typical flow rates are approximately 80-140 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A specialized preparative or process HPLC system capable of high flow rates and large-volume sample loading is required for optimum performance.

Key Benefits

• NP Silica™ stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity, low-metal-content silica

• Unmodified silica surface

• 100 Å pore size

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Extremely high sample loading capacity

• Lower backpressure with 5 µm particles

• Ideal for preparative and process-scale purification

Typical Applications

• Process HILIC chromatography

• Process normal-phase HPLC

• Lipid purification

• Polar compound purification

• Hydrophilic compound purification

• Production-scale separations

• Fraction collection

• Process development

• Manufacturing support

• USP L3 method scale-up

Specifications

• Product Type: Process HPLC Column

• Stationary Phase: NP Silica™

• Chromatography Mode: HILIC / Normal Phase

• USP Classification: L3

• Particle Size: 5 µm

• Pore Size: 100 Å

• Column Dimensions: 50 mm ID x 50 mm

• Recommended Flow Rate: 80-140 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Unmodified silica stationary phase

• USP L3 equivalent chemistry

• Excellent for lipid, hydrophilic, and polar compound purification

• Large 50 mm ID provides extremely high sample loading capacity

• Short 50 mm length minimizes run times and solvent consumption

• Typical operating range is approximately 80-140 mL/min

• Requires a specialized preparative or process HPLC system capable of high flow rates

• Ideal for production-scale purification, fraction collection, and process development

• This is a Special Order Item
