Catalog Number - 82561-SP50-3M

Cogent NP Silica™ Wide Pore Semi-Preparative HPLC Columns are designed for purification, method scale-up, and semi-preparative chromatography applications involving larger polar and hydrophilic compounds. Manufactured from ultra-high purity, low-metal-content 300 Å silica, this stationary phase is completely unmodified, providing the traditional selectivity associated with USP L3 classified silica while improving accessibility for higher molecular weight analytes. NP Silica™ Wide Pore is widely used in HPLC laboratories and pilot plants for purification of proteins, peptides, lipids, and other large polar compounds.

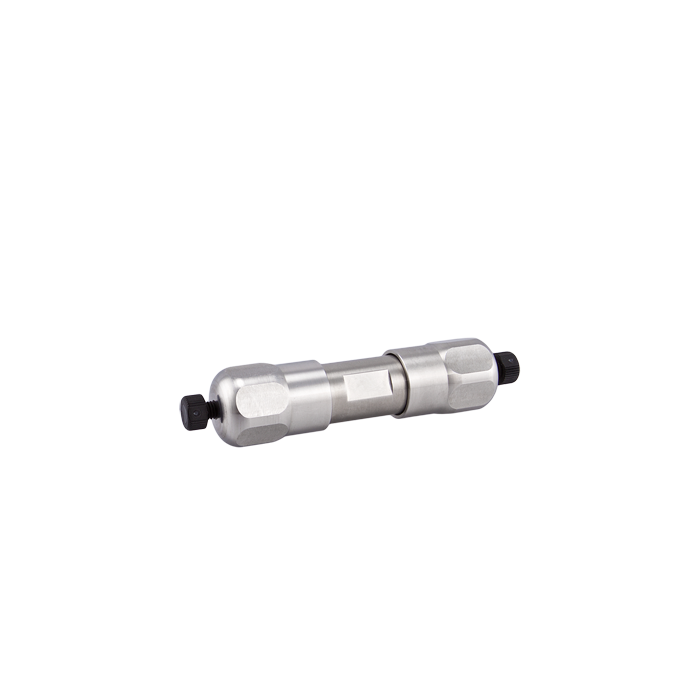

82561-SP50-3M is packed with 5 µm NP Silica™ Wide Pore particles in a 10 mm ID x 50 mm semi-preparative format. The 300 Å pore structure enhances mass transfer and analyte accessibility for larger molecules, while the 5 µm particle size supports semi-preparative flow rates with lower operating backpressures than smaller particles. The larger internal diameter provides increased sample loading capacity compared to analytical columns, while the short column length minimizes run times and solvent consumption for rapid purification and analytical-to-semi-preparative method scale-up.

The 10 mm ID x 50 mm format is well suited for HILIC and normal-phase chromatography involving proteins, peptides, lipids, and other large hydrophilic or polar compounds. Typical flow rates are approximately 3-8 mL/min depending on mobile phase composition, system pressure limitations, and application requirements. A semi-preparative or preparative HPLC system capable of supporting these flow rates and injection volumes is recommended for optimum performance.

Key Benefits

• NP Silica™ Wide Pore stationary phase

• USP L3 equivalent chemistry

• Ultra-high purity, low-metal-content silica

• Unmodified silica surface

• 300 Å wide pore structure

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Enhanced accessibility for larger molecules

• Increased sample loading capacity

• Lower backpressure with 5 µm particles

Typical Applications

• Semi-preparative HILIC chromatography

• Semi-preparative normal-phase HPLC

• Protein purification

• Peptide purification

• Lipid purification

• Biomolecule isolation

• Polar compound purification

• Fraction collection

• Process development

• Method scale-up

Specifications

• Product Type: Semi-Preparative HPLC Column

• Stationary Phase: NP Silica™ Wide Pore

• Chromatography Mode: HILIC / Normal Phase

• USP Classification: L3

• Particle Size: 5 µm

• Pore Size: 300 Å

• Column Dimensions: 10 mm ID x 50 mm

• Recommended Flow Rate: 3-8 mL/min

• Column Hardware: Stainless Steel

• Brand: Cogent

Special Order Item Information

• Please review the Special Order Item Information for complete details.

• For pricing confirmation, availability, lead times, or application assistance, please contact MICROSOLV Customer Service.

Important Notes

• Suitable for HILIC applications

• Suitable for normal-phase chromatography

• Unmodified silica stationary phase

• USP L3 equivalent chemistry

• Wide pore design improves accessibility for proteins, peptides, lipids, and larger molecules

• Excellent for biomolecule and high molecular weight compound purification

• 10 mm ID format provides increased sample loading capacity versus analytical columns

• Short 50 mm length minimizes run times and solvent consumption

• Typical operating range is approximately 3-8 mL/min

• Requires a semi-preparative or preparative HPLC system

• Ideal for purification, fraction collection, and analytical-to-semi-preparative scale-up

• This is a Special Order Item
