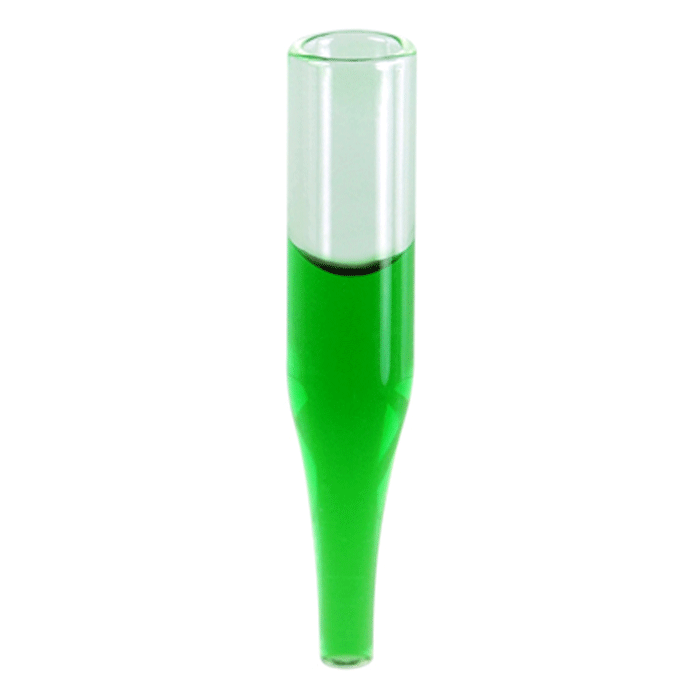

CUSTOM ITEM: Inserts, Low Volume for Vials, Glass. Clear, 350ul fill volume with a conical point and 6x31mm outer dimensions. For use in 2ml autosampler vials. MICROSOLV Brand. 1000/CS. BULK PRICING.
Additional Info:
A cost‑effective, streamlined solution for routine low‑volume workflows where performance and budget must be balanced.
9502S‑02L‑K inserts are manufactured from first hydrolytic, Class A, Type N51A borosilicate glass and feature a conical tip that concentrates sample at the bottom for dependable recovery and consistent needle access. With a residual volume of approximately 4 µL in most autosamplers, these inserts provide reliable performance for everyday HPLC and LC‑MS analysis.
These inserts are supplied without pre‑attached springs, offering flexibility for users who prefer simplified configurations or already utilize spring systems in their workflow. Optional springs (sold separately) may be added if required for centering within specific autosamplers. This design helps reduce cost while maintaining practical functionality.
As one of the most economical insert options available, this configuration is well suited for high‑volume laboratories and routine applications where performance is needed without premium cost.
Key Benefits
350 µL fill volume for flexible low‑volume workflows
~4 µL residual volume for reliable recovery
Conical tip improves sample concentration and access
Type N51A borosilicate glass for consistent performance
Optional spring compatibility for flexible workflows
Simplified design reduces overall cost
Economical option for high‑volume laboratories
Case format supports large‑scale operations
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows
Routine pharmaceutical testing
Environmental and food analysis
High‑throughput laboratories with cost constraints
Compatibility
Designed for 2 mL autosampler vials (12 × 32 mm)
Compatible with:
9 mm screw top vials
11 mm snap top vials
Optional springs available for improved centering and alignment
Performance and Design Notes
Conical geometry supports consistent injection performance
Designed for simple, efficient workflows
Optional spring use provides versatility across systems
Ideal for scaling operations without increasing consumable cost
Important Notes
Springs are not included and may be required depending on system
Best suited for routine workflows where cost efficiency is important
Designed for consistent, general‑purpose analytical use
Custom Item Pricing Information
