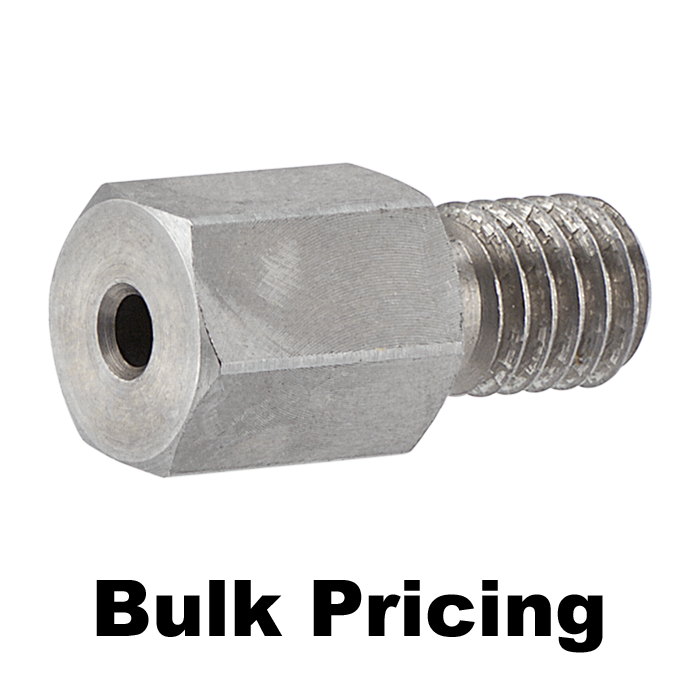

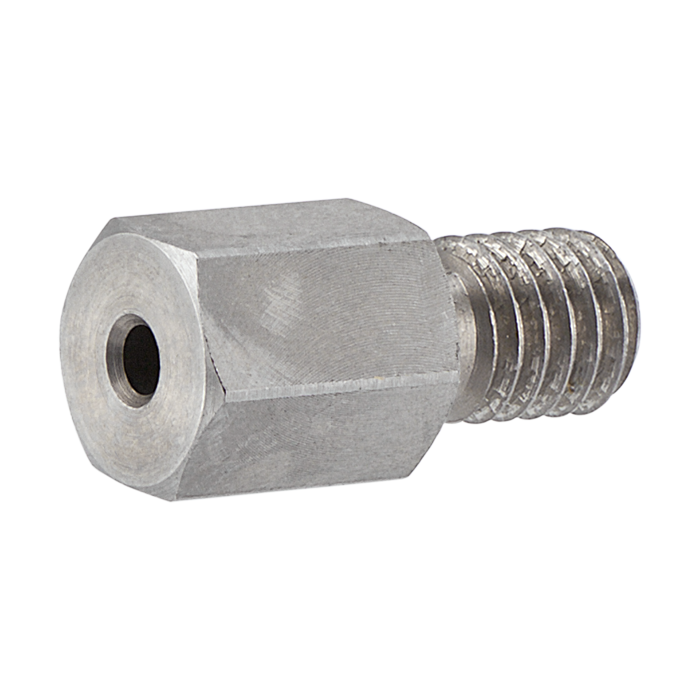

CUSTOM ITEM: Tubing Connector Male Nuts, high pressure, 1/16-inch, Stainless Steel, 15 mm total length with a hex head and 10-32 screw threads. Ferrules sold separately. ARE-Applied Research brand. Bulk Price.
Additional Info:
Stainless steel tubing connector nuts for 1/16" OD tubing provide secure connections in high-pressure HPLC systems. Designed for 10‑32 ports, these fittings are used with stainless steel tubing and require compatible ferrules for proper sealing.
The 49590‑05 features a 15 mm compact length, providing a balance of reach and clearance for injector and valve connections.
Key Benefits
316L stainless steel for strength and corrosion resistance
Hex head for secure wrench tightening
Compact length for limited-space installations
Designed for permanent, high-pressure connections
Bulk custom for flexible ordering
Specifications
Material: 316L Stainless Steel
Tubing Size: 1/16" OD
Thread: 10‑32
Head Type: Hex
Length: 15 mm
Connection Type: High pressure
Usage Notes
For high-pressure HPLC applications
Requires single cone stainless steel ferrules
