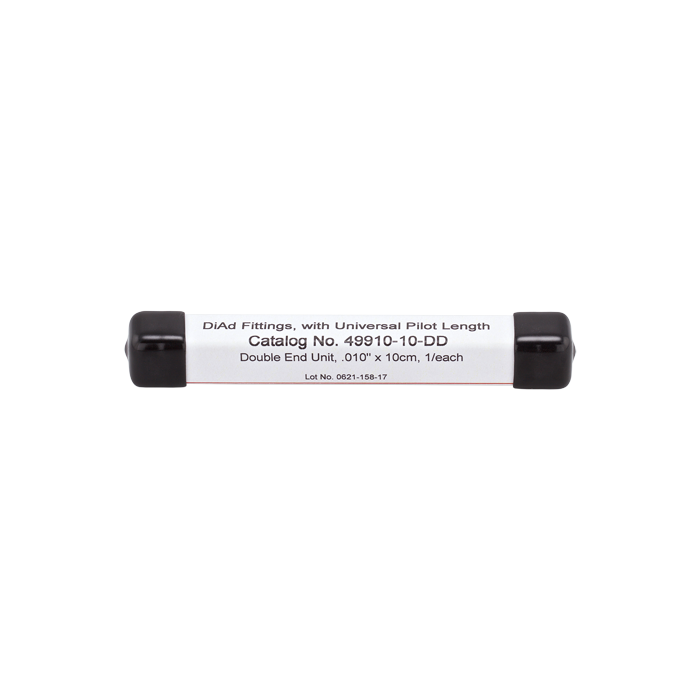

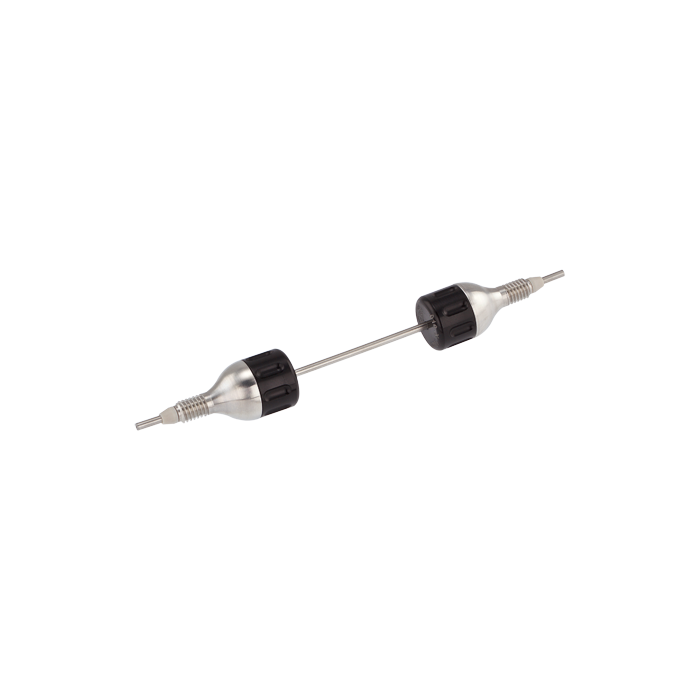

Direct Adaptive HPLC Column Connector, double end fitting with 0.010" ID x 1/16th" OD, 100 mm long stainless steel tubing. MICROSOLV Brand. 1 EA.
Additional Info:
Direct Adaptive (Di‑Ad™) HPLC Column Connectors are designed to create reliable, low dead volume connections between HPLC system components and analytical columns without repeated ferrule adjustments when changing column brands.
The 49910‑10‑DD connector includes precision laser‑cut 0.010" (254 µm) ID stainless steel tubing with a 1/16" OD and 100 mm (3.94") length for reduced extra‑column dispersion and improved chromatographic efficiency.

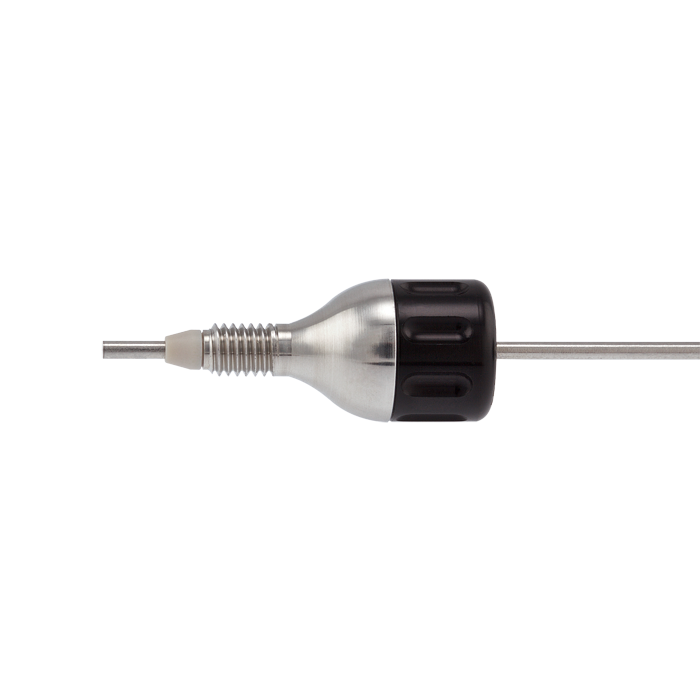

The spring‑loaded double‑end Di‑Ad™ fittings automatically adjust tubing pilot length during installation to help provide a tight seal with minimal void volume across different HPLC column brands and inlet geometries.
These connectors are ideal for laboratories using multiple column brands and requiring convenient, reproducible low dispersion fluidic connections.
Key Benefits
Direct Adaptive (Di‑Ad™) self‑adjusting fitting design
Double‑end fitting configuration
Near zero dead volume connection
Minimizes extra‑column band broadening
Compatible with virtually any HPLC column brand
Precision laser‑cut tubing ends
Simplifies routine column changes
Stainless steel construction
Pressure rated to 10,000 psi
Specifications
Product Type: Direct Adaptive HPLC column connector
Brand: MICROSOLV
Fitting Style: Double end
Tubing Material: Stainless steel
Tubing ID: 0.010" (254 µm)
Tubing OD: 1/16"
Tubing Length: 100 mm (3.94")
Pressure Rating: 10,000 psi
Solvent Compatibility: HPLC solvent resistant
Pack Size: 1 each
Applications
Analytical HPLC systems
Injector‑to‑column connections
Column‑to‑detector connections
Multi‑brand column compatibility
Low dispersion chromatography
