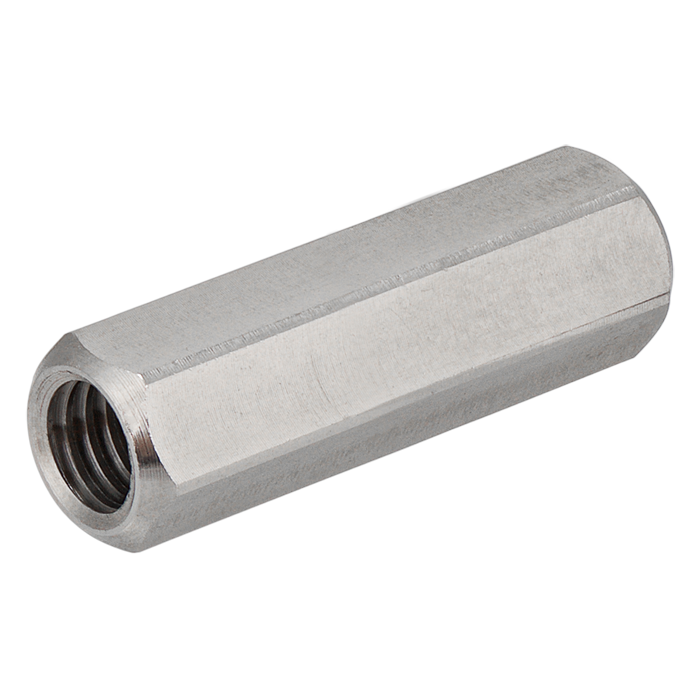

Union, Connector, high pressure, 0.8 mm / 0.031 inch through hole with 10-32 mm screw threads. Stainless steel. straight line. ARE-Applied Research brand. 1 each.
Additional Info:
High‑pressure stainless steel unions are designed for connecting tubing in analytical HPLC systems requiring durable, high‑strength fluidic components. The 0.8 mm (0.031") through hole design and standard 10‑32 threaded female ports provide dependable tubing connections for high‑pressure flow applications.
The 49402‑06 straight‑line union is manufactured from stainless steel and is suitable for combining high‑pressure liquid flow with compatible tubing systems in analytical and laboratory fluid handling applications.

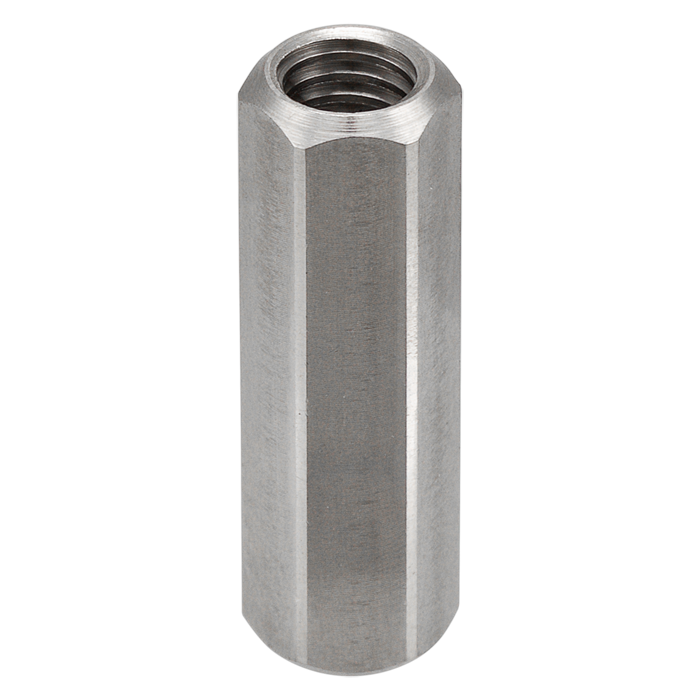

This fitting features two 10‑32 female threaded ports and requires compatible male nuts and matching ferrules, sold separately, for complete tubing installation.
Key Benefits
High‑pressure straight‑line union design
Durable stainless steel construction
Two female 10‑32 threaded ports
Compatible with high‑pressure tubing systems
Suitable for analytical HPLC applications
High temperature and pressure capability
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure union connector
Material: Stainless steel
Through Hole Diameter: 0.8 mm / 0.031"
Thread: 10‑32 female ports
Configuration: Straight line
Maximum Temperature: 500°C
Maximum Pressure: 10,000 psig
Pack Size: 1 each
Usage Notes
For high‑pressure HPLC applications
Requires two 10‑32 male nuts and matching ferrules
Nuts and ferrules sold separately
Suitable for analytical laboratory systems
Compatible with high‑pressure tubing connections
