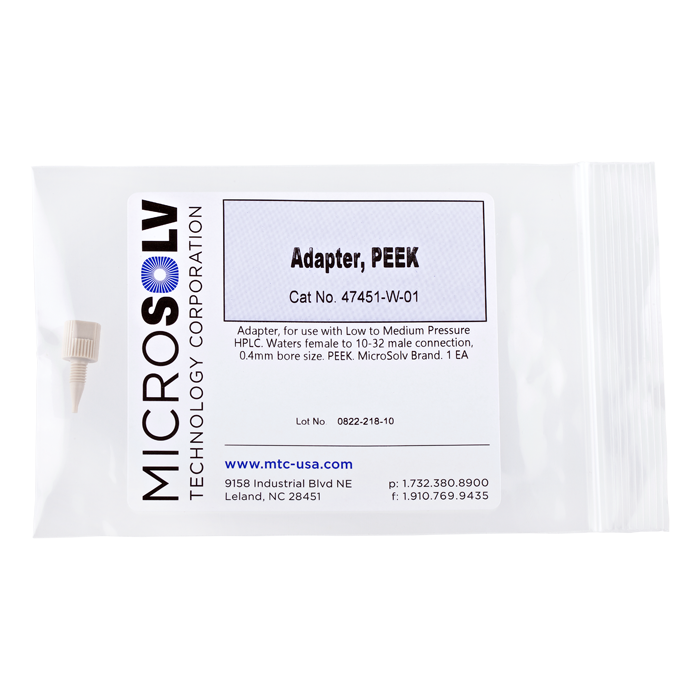

Adapter, for use with low to medium pressure HPLC. Waters female to 10-32 male connection, 0.40 mm / 0.016 bore size. Natural PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
Low‑ to medium‑pressure natural PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free transitions between Waters® style fittings and standard HPLC thread configurations. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.

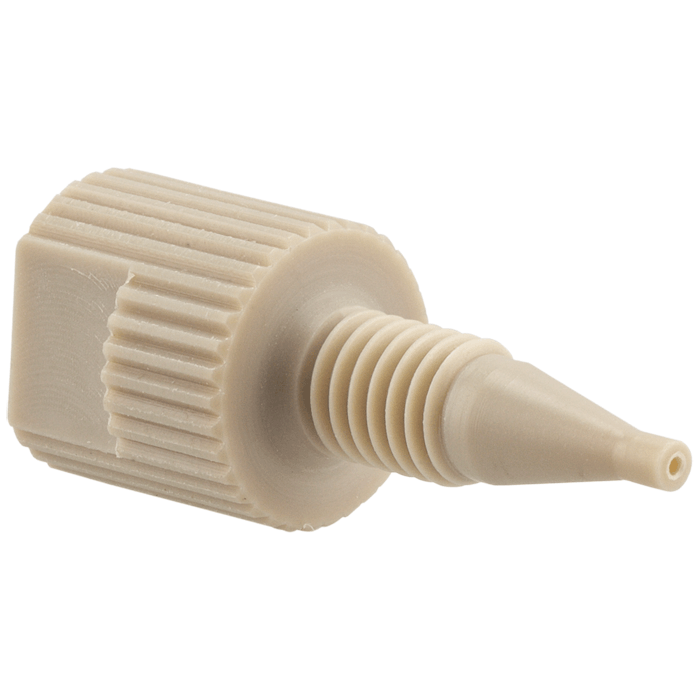

The 47451‑W‑01 adapter features a Waters® style female threaded port on one side and a standard 10‑32 threaded male connector on the other, allowing convenient integration between Waters® systems and more common HPLC fluidic connections.
This all‑PEEK adapter includes a standard male connector with a built‑in ferrule and universal pilot length, providing reliable sealing performance while allowing simple finger‑tight installation and removal.
These adapters are especially useful when using Waters® style male fittings with standard female ports in mixed HPLC system configurations.
The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible Waters® male nuts.
Key Benefits
Converts Waters® style connections to standard 10‑32 fittings
Built‑in ferrule with universal pilot length
Finger‑tight installation design
Chemically resistant natural PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient handling
Flat wrench section for additional tightening control
Ideal for mixed HPLC fitting compatibility
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: Thread conversion adapter
Material: Natural PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: Waters® female to 10‑32 male
Connector Type: Built‑in ferrule with universal pilot
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Applications
Waters® to standard HPLC thread conversion
Analytical fluidic system integration
Low‑dispersion laboratory fluid transfer
Mixed HPLC fitting compatibility
Instrument fluidic connections
Laboratory tubing upgrades and transitions
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with Waters® style male fittings
Suitable for standard 10‑32 female ports
Finger‑tight installation simplifies fitting changes
Wrench flats allow additional tightening control
Suitable for analytical HPLC systems
Not intended for UHPLC ultra‑high‑pressure applications
