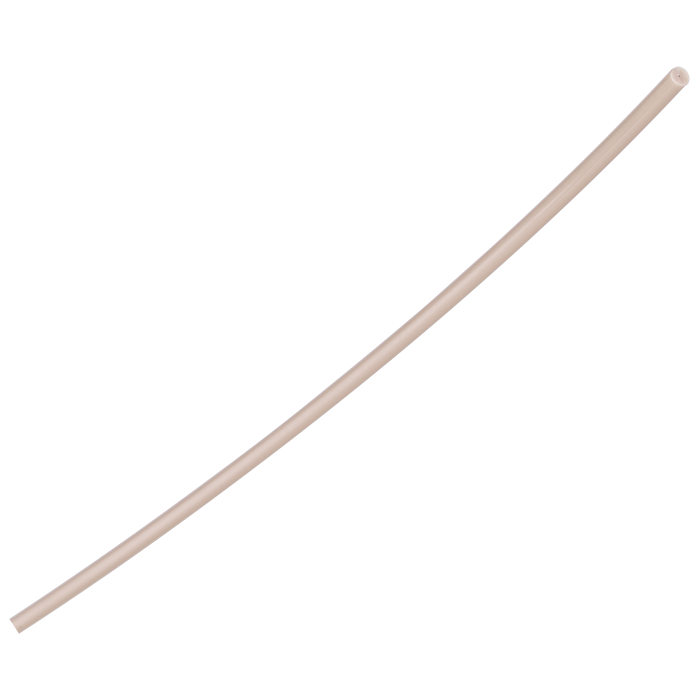

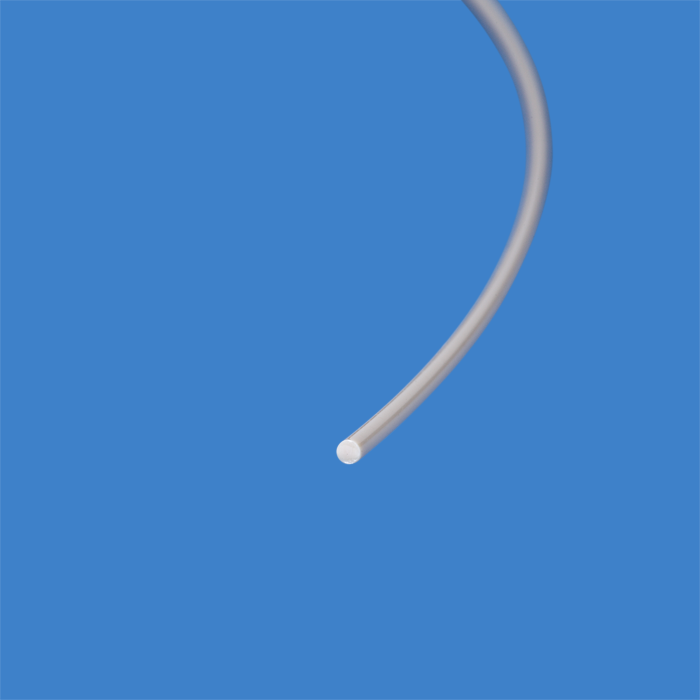

CUSTOM ITEM: Tubing, PEEK, 0.0025 inch (0.064 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, natural color, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring low extractables and chemical resistance.
The 47305‑ST‑02‑1C tubing features a 0.0025" (0.064 mm) ID with a 1/16" (1.6 mm) OD and natural color construction without color stripe additives or leachable pigments.
Custom continuous lengths between 1 and 300 meters are available through Customer Service. Lengths of 15 meters or longer are supplied on a convenient spool. Cutting charges apply for lengths under 3 meters.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Natural color with no color leachables
Custom continuous lengths available
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.0025" (0.064 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.768 mm
Tolerance: ± 0.025 mm
Color: Natural
Pressure Rating: 6300 psi (434.4 bar)
Length Availability: 1 to 300 meter continuous lengths
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Natural tubing contains no color additives
Lengths 15 meters and longer supplied on spool
Cutting charges apply under 3 meter lengths
Available through Customer Service only
Custom order item
Non‑cancelable and non‑returnable after order placement
