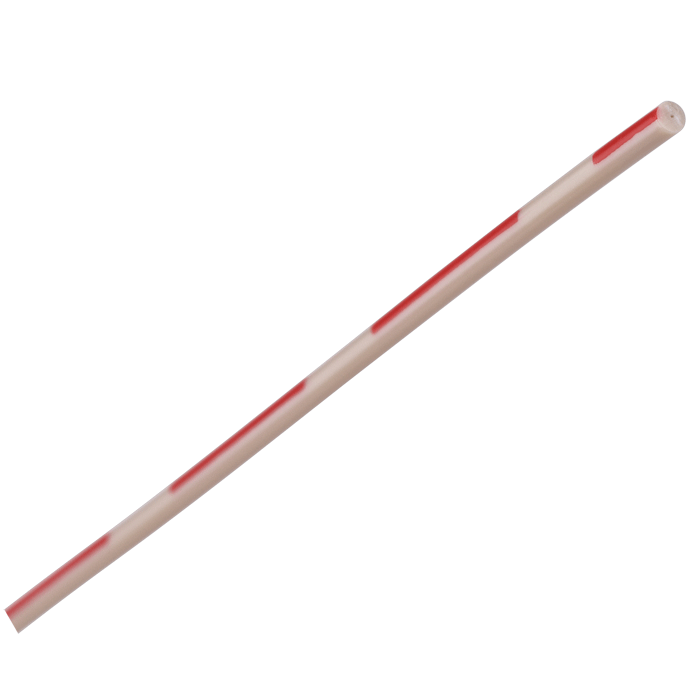

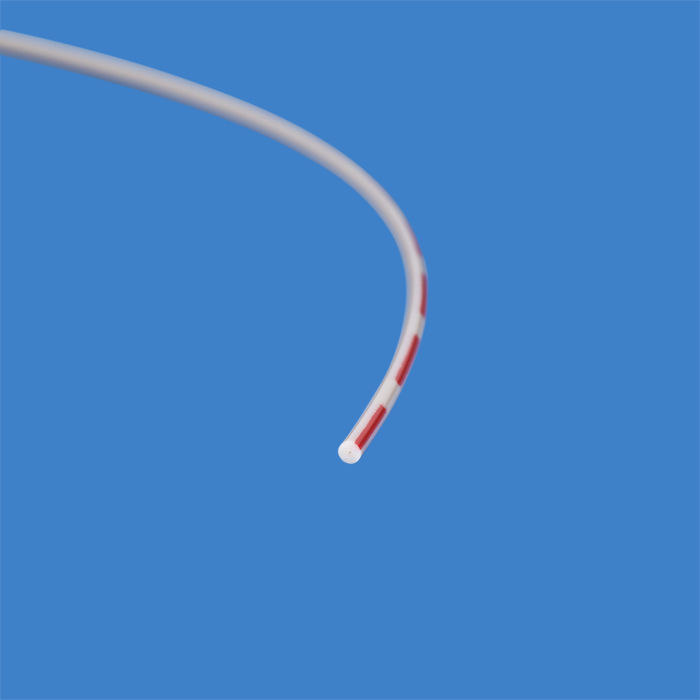

Tubing, PEEK, 0.005 inch (0.13 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, red intermittent stripes, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring low extractables and chemical resistance.
The 47305‑ST‑05‑3M tubing features a 0.005" (0.13 mm) ID with a 1/16" (1.6 mm) OD. The red intermittent stripes are applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Natural internal flow path
Exterior red stripe identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
3 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.005" (0.13 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.735 mm
Tolerance: ± 0.025 mm
Color Code: Red intermittent stripes
Pressure Rating: 6100 psi (420.6 bar)
Length: 3 meter roll
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripes assist tubing identification
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
