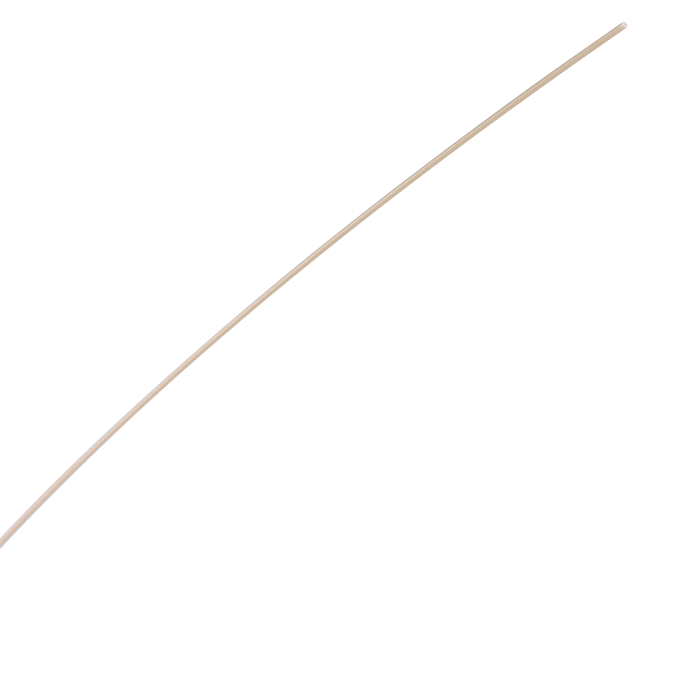

Tubing, Capillary, PEEK, 75 um ID, 360 um OD, natural color, 3 meter roll. ARE-Applied Research brand. 1 EA.
Additional Info:
This small OD PEEK capillary tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring chemically resistant capillary fluidic pathways.
The 47310‑05‑3M tubing features a 75 µm ID with a 360 µm OD and natural color construction without color additives or leachable pigments.
Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some capillary fitting applications.
Key Benefits
Virgin PEEK capillary tubing
Natural color with no color additives
Small OD capillary format
Suitable for HPLC and LC‑MS
Chemically resistant fluidic pathway
Flexible PEEK construction
3 meter roll format
Specifications
Product Type: PEEK capillary tubing
Brand: ARE‑Applied Research
Material: Virgin PEEK
Tubing ID: 75 µm
Tubing OD: 360 µm
Wall Thickness: 0.157 µm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 5200 psi (358.5 bar)
Length: 3 meter roll
Applications
Capillary HPLC
LC‑MS systems
Small OD fluidics
Analytical capillary connections
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Natural tubing contains no color additives
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
