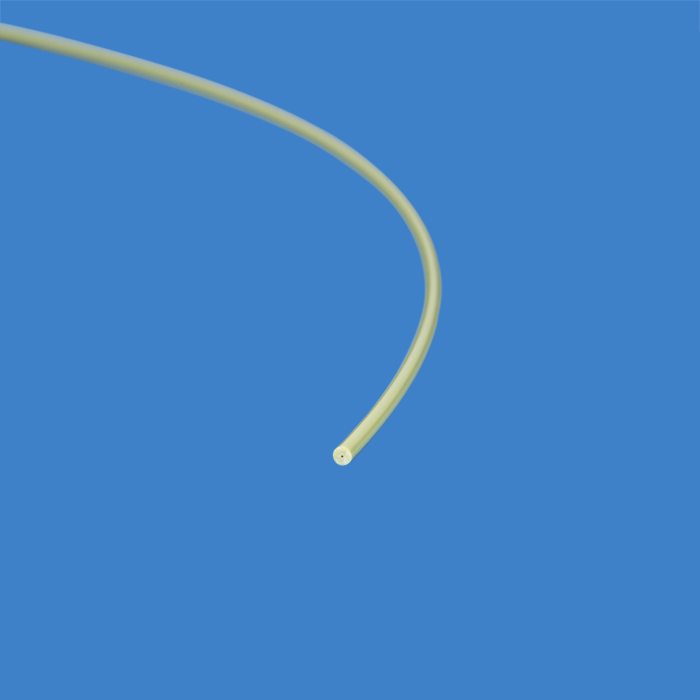

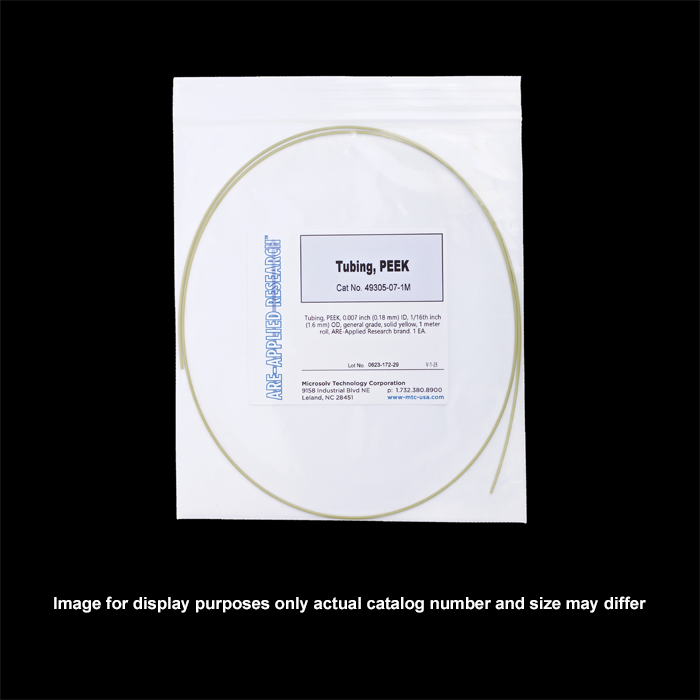

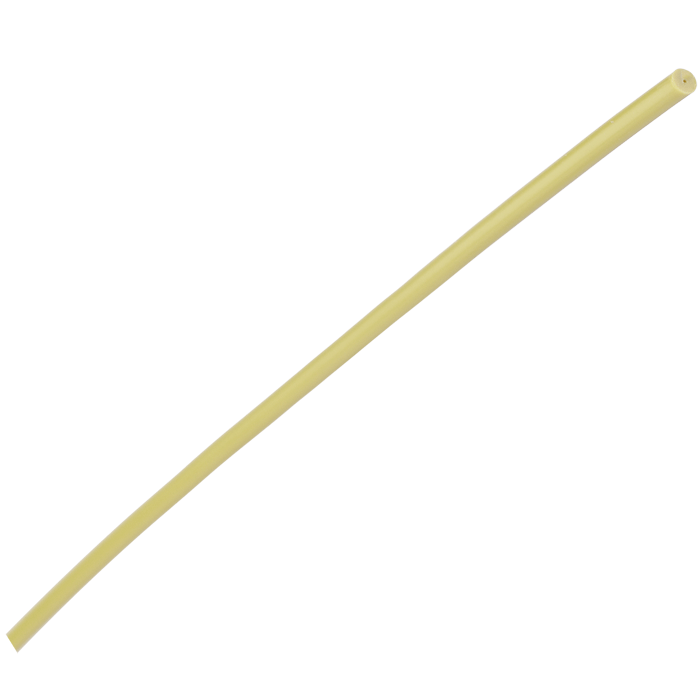

CUSTOM ITEM: Tubing, PEEK, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, general grade, solid yellow, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
This general grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography and laboratory fluidic applications.
The 49305‑07‑1C tubing features a 0.007" (0.18 mm) ID with a 1/16" (1.6 mm) OD and solid yellow color coding for tubing identification.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Virgin PEEK tubing construction
Solid yellow tubing identification
Custom continuous lengths available
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Chemically resistant fluidic pathway
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: General
Material: Virgin PEEK
Tubing ID: 0.007" (0.18 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance: ± 0.05 mm
Color: Solid yellow
Pressure Rating: 5800 psi (399.9 bar)
Length Availability: Custom continuous lengths
Applications
Analytical HPLC
LC‑MS systems
Laboratory fluidics
High‑pressure chromatography pathways
Usage Information
Designed for laboratory and chromatography applications
Lengths 15 meters and longer supplied on spool
Not supplied with precision low dead volume end cuts
Custom order item
Non‑cancelable and non‑returnable after order placement
