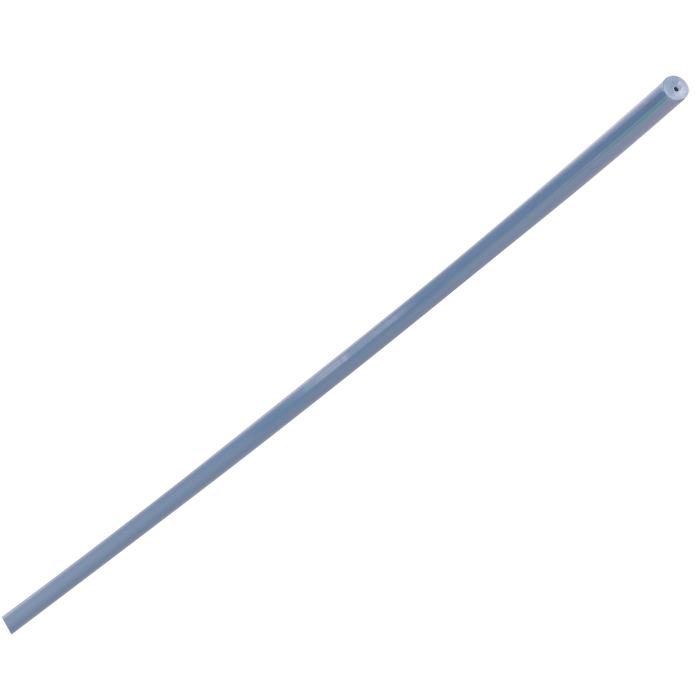

Tubing, PEEK, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, general grade, solid blue, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
This general grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography and laboratory fluidic applications.
The 49305‑10‑3M tubing features a 0.010" (0.25 mm) ID with a 1/16" (1.6 mm) OD and solid blue color coding for tubing identification.
Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Virgin PEEK tubing construction
Solid blue tubing identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Chemically resistant fluidic pathway
Flexible PEEK construction
3 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: General
Material: Virgin PEEK
Tubing ID: 0.010" (0.25 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance: ± 0.05 mm
Color: Solid blue
Pressure Rating: 5600 psi (386.1 bar)
Length: 3 meter roll
Applications
Analytical HPLC
LC‑MS systems
Laboratory fluidics
High‑pressure chromatography pathways
Usage Information
Designed for laboratory and chromatography applications
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
