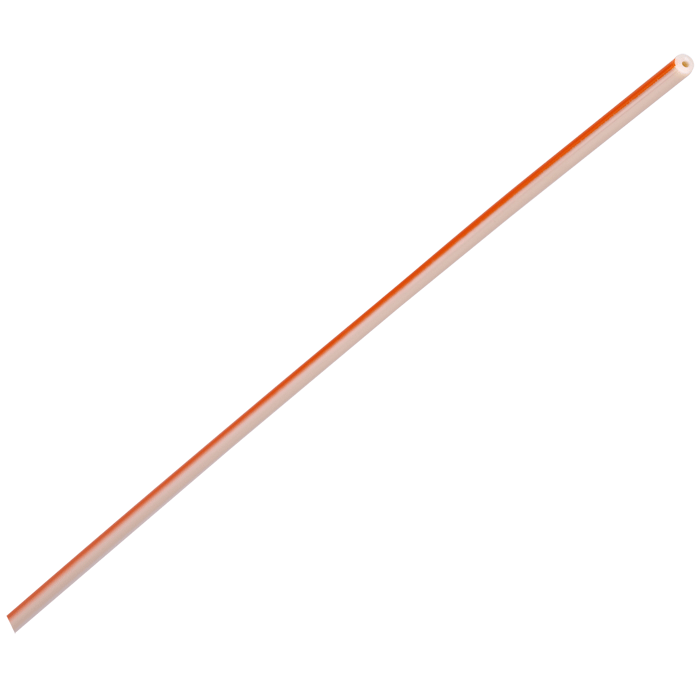

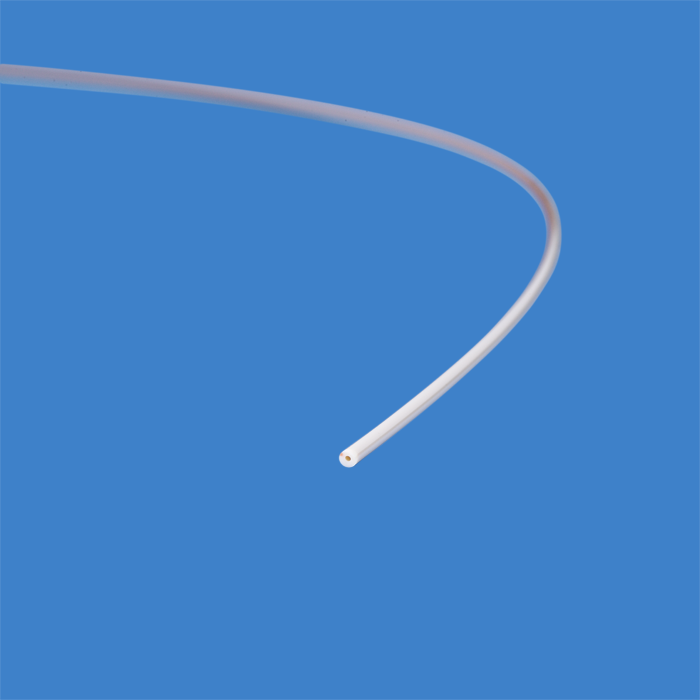

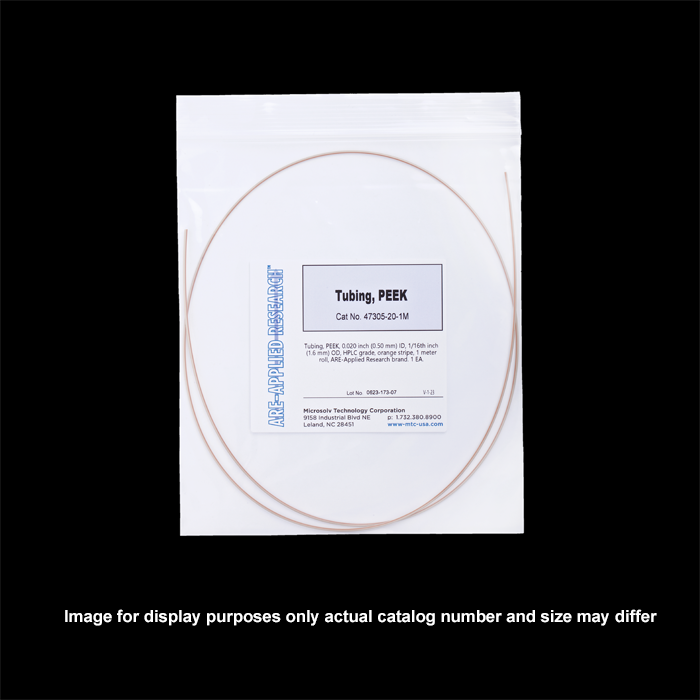

CUSTOM ITEM: Tubing, PEEK, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, HPLC grade, orange stripe. Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
This HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant fluidic pathways and low extractables.
The 47305‑20‑1C tubing features a 0.020" (0.50 mm) ID with a 1/16" (1.6 mm) OD. The orange stripe is applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Virgin PEEK tubing construction
Natural internal flow path
Exterior orange stripe identification
Custom continuous lengths available
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.020" (0.50 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.55 mm
Tolerance: ± 0.05 mm
Color Code: Orange stripe
Pressure Rating: 4500 psi (310.3 bar)
Length Availability: Custom continuous lengths
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Lengths 15 meters and longer supplied on spool
Not supplied with precision low dead volume end cuts
Custom order item
Non‑cancelable and non‑returnable after order placement
