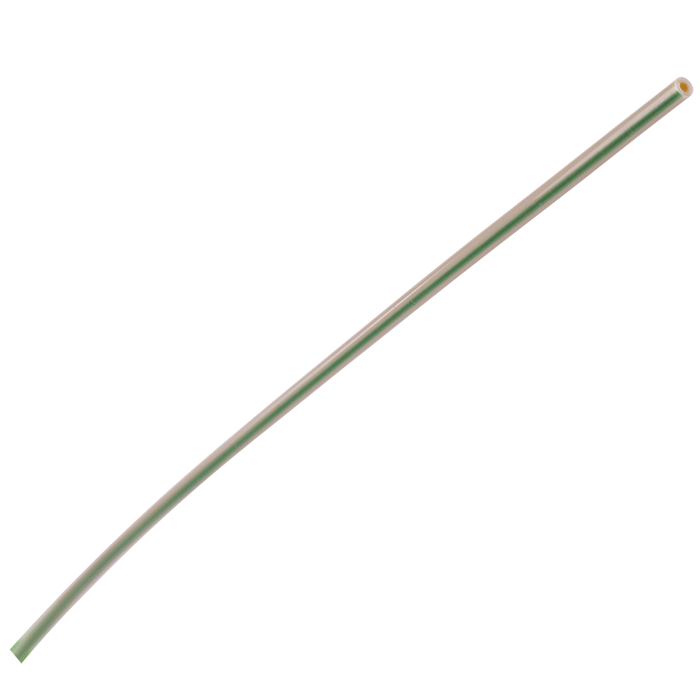

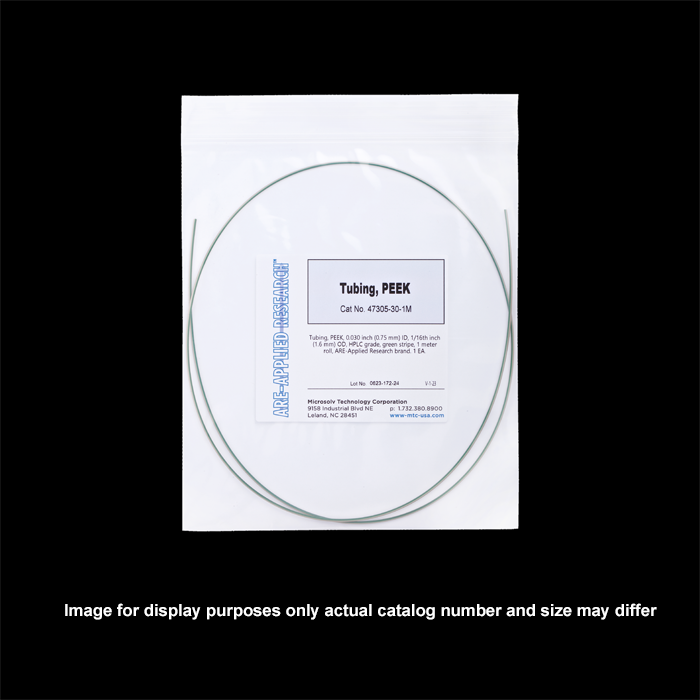

Tubing, PEEK, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, HPLC grade, green stripe, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
This HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant fluidic pathways and low extractables.
The 47305‑30‑10M tubing features a 0.030" (0.75 mm) ID with a 1/16" (1.6 mm) OD. The green stripe is applied only to the exterior tubing surface, while the internal flow path remains natural virgin PEEK to minimize potential color leachables.
Tubing is carefully cut for length consistency for HPLC and LC‑MS fluidic applications.
Key Benefits
Virgin PEEK tubing construction
Natural internal flow path
Exterior green stripe identification
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
10 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.030" (0.75 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance: ± 0.05 mm
Color Code: Green stripe
Pressure Rating: 3500 psi (241.3 bar)
Length: 10 meter roll
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Internal flow path remains natural virgin PEEK
Exterior stripe assists tubing identification
Custom cut lengths available through Customer Service
