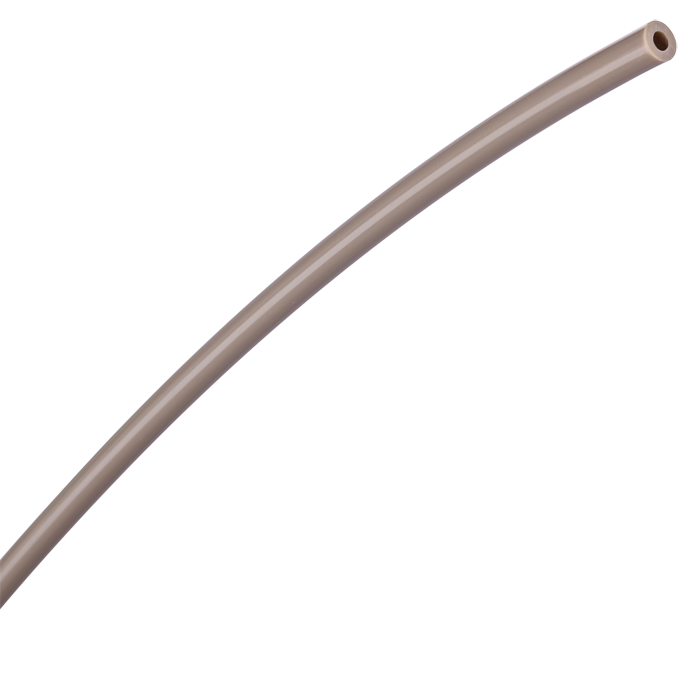

Tubing, PEEK, 1/8th inch (3.2 mm) ID, 1/4th inch (6.35 mm) OD, HPLC grade, natural color, 25 meter spool, ARE-Applied Research brand. 1 EA.
Additional Info:
This wide OD HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant and metal‑free fluidic pathways.

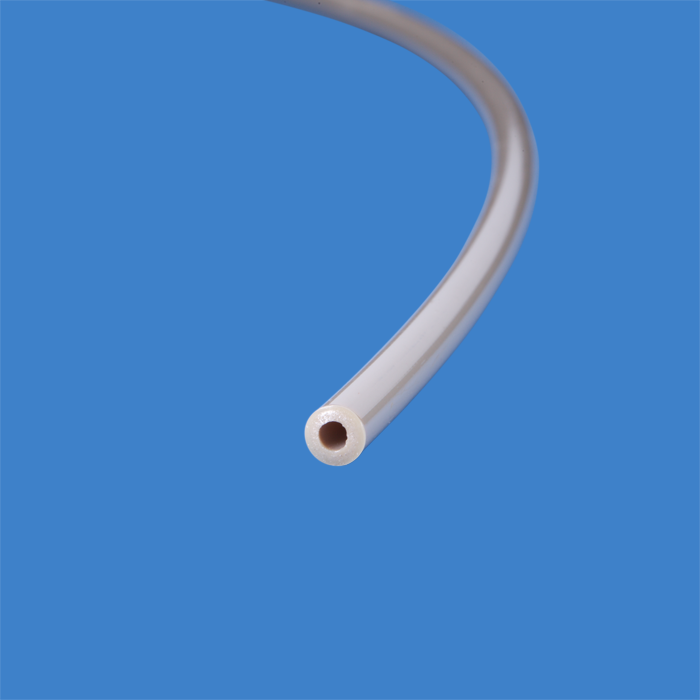

The 47310‑300‑C tubing features a 1/8" (3.2 mm) ID with a wider 1/4" (6.35 mm) OD for applications requiring increased wall strength, large internal flow capacity, and durable high‑flow performance.

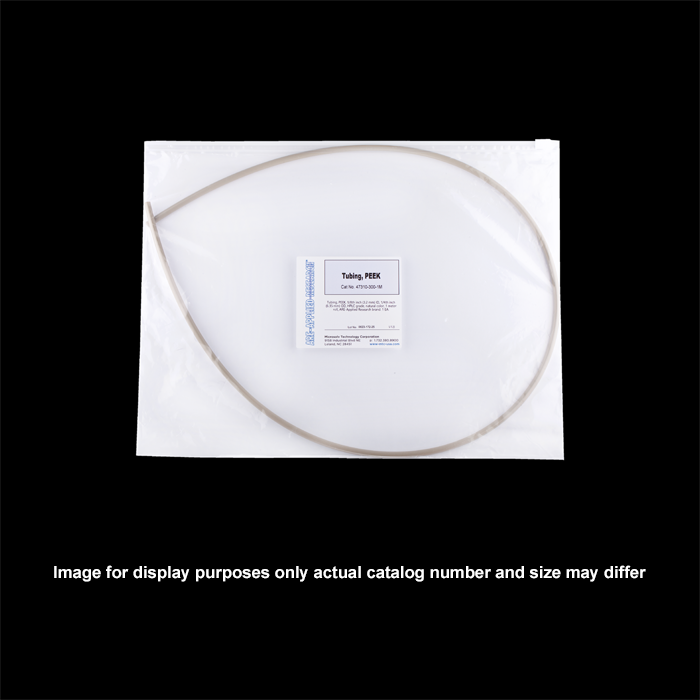

This tubing is supplied on a convenient spool for easier storage and handling.
Key Benefits
Virgin PEEK tubing construction
Natural color tubing
Wide OD tubing design
Large internal flow path
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
Thick wall construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 1/8" (3.2 mm)
Tubing OD: 1/4" (6.35 mm)
Wall Thickness: 1.575 mm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 3300 psi (227.5 bar)
Length: 25 meter spool
Applications
Analytical HPLC
LC‑MS systems
High flow laboratory fluidics
Preparative chromatography fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Wide OD tubing configuration
Supplied on a convenient spool
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
