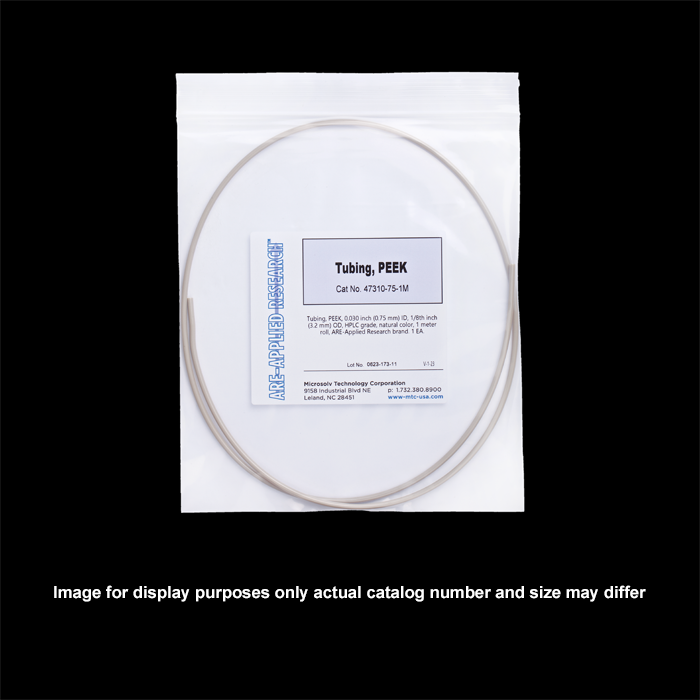

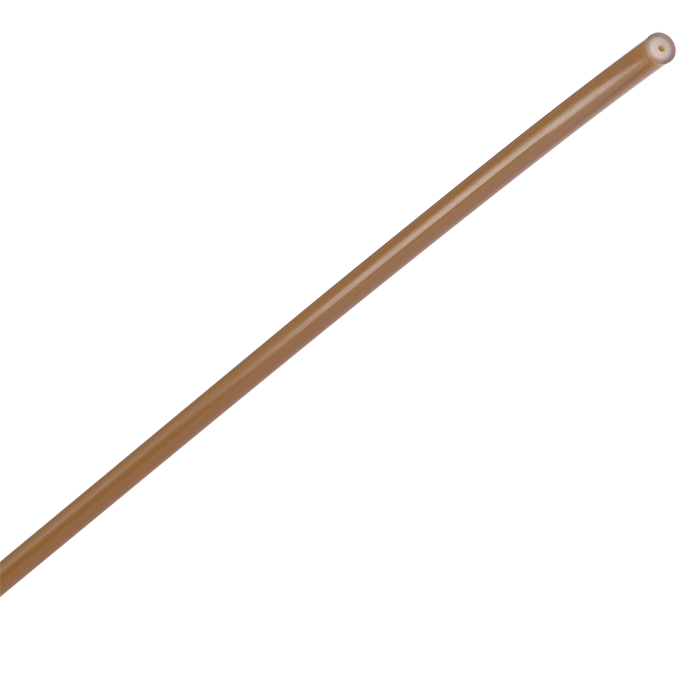

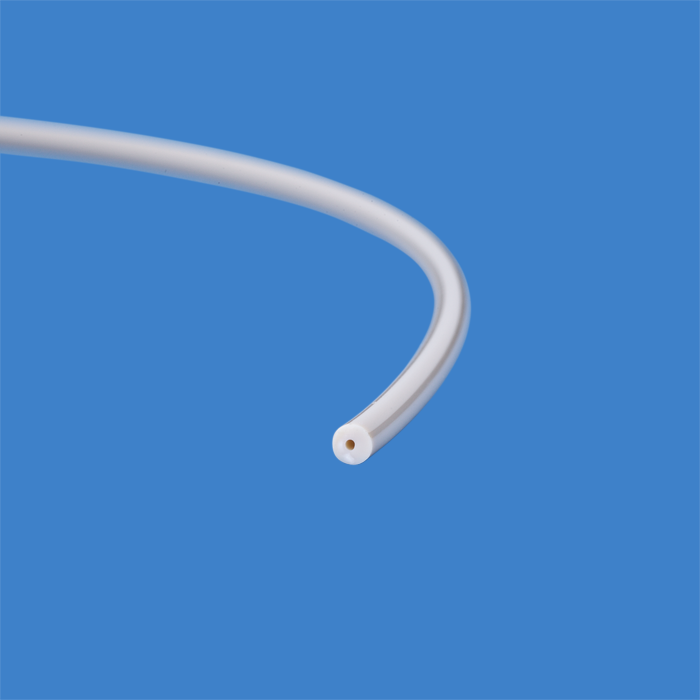

CUSTOM ITEM: Tubing, PEEK, 0.030 inch (0.75 mm) ID, 1/8th inch (3.2 mm) OD, HPLC grade, natural color, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
This wide OD HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant and metal‑free fluidic pathways.
The 47310‑75‑1C tubing features a 0.030" (0.75 mm) ID with a wider 1/8" (3.2 mm) OD for applications requiring enhanced wall strength and durable high‑pressure performance.
Custom continuous lengths are available, with lengths of 15 meters or longer supplied on a convenient spool.
This is a custom order manufactured item and cannot be canceled or returned once an order has been placed.
Key Benefits
Virgin PEEK tubing construction
Natural color tubing
Wide OD tubing design
Enhanced wall strength
Custom continuous lengths available
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.030" (0.75 mm)
Tubing OD: 1/8" (3.2 mm)
Wall Thickness: 1.225 mm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 5000 psi (344.7 bar)
Length Availability: Custom continuous lengths
Applications
Analytical HPLC
LC‑MS systems
High‑pressure laboratory fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Wide OD tubing configuration
Lengths 15 meters and longer supplied on spool
Custom order item
Non‑cancelable and non‑returnable after order placement
