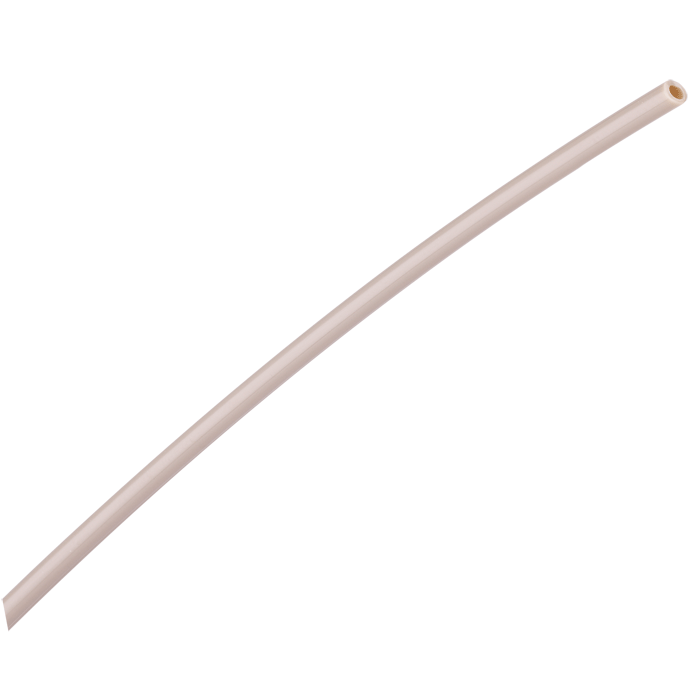

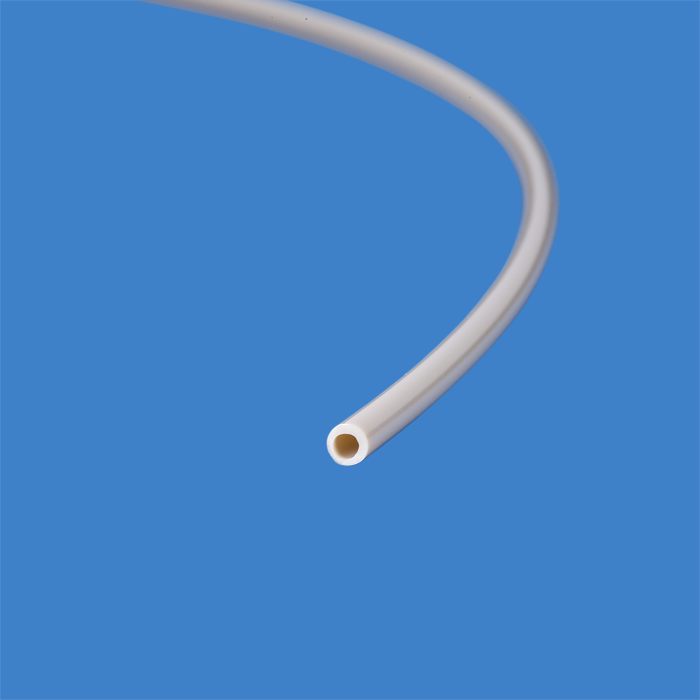

Tubing, PEEK, 0.080 inch (2.0 mm) ID, 1/8th inch (3.2 mm) OD, HPLC grade, natural color, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
This wide OD HPLC grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography applications requiring chemically resistant and metal‑free fluidic pathways.
The 47310‑200‑1M tubing features a 0.080" (2.0 mm) ID with a wider 1/8" (3.2 mm) OD for applications requiring increased wall strength and higher internal flow capacity.
Due to the thick wall construction, this tubing can unwind rapidly when unpacked and should be handled carefully. Safety glasses and gloves are recommended during unpacking and handling.
Tubing is carefully cut for length consistency for HPLC and LC‑MS fluidic applications.
Key Benefits
Virgin PEEK tubing construction
Natural color tubing
Wide OD tubing design
Larger internal flow path
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
Thick wall construction
1 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: HPLC
Material: Virgin PEEK
Tubing ID: 0.080" (2.0 mm)
Tubing OD: 1/8" (3.2 mm)
Wall Thickness: 0.60 mm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 2400 psi (165.5 bar)
Length: 1 meter roll
Applications
Analytical HPLC
LC‑MS systems
High flow laboratory fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Wide OD tubing configuration
Thick wall tubing can unwind rapidly
Safety glasses and gloves recommended during unpacking
Custom cut lengths available through Customer Service
