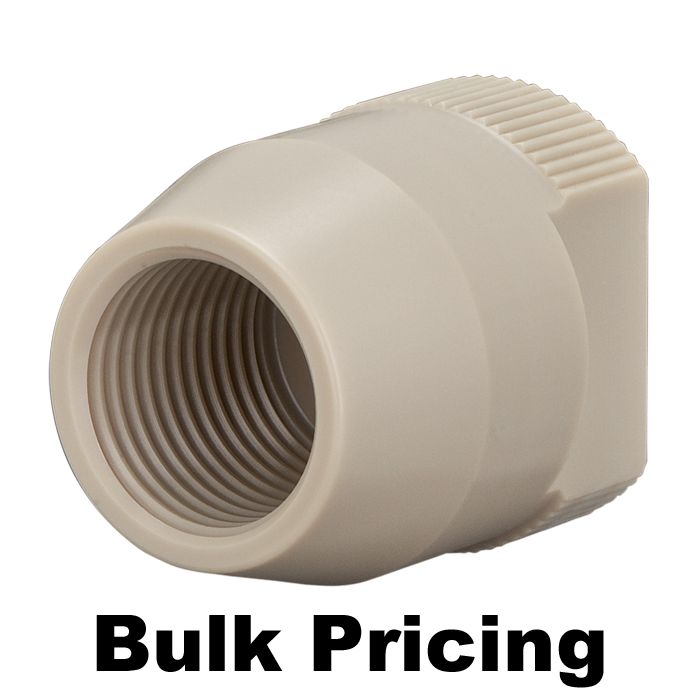

CUSTOM ITEM: End Fitting, PEEK, for 7.5 mm ID columns, ARE-Applied Research brand. Bulk Price.
Additional Info:
The 49333‑EF7 PEEK End Fitting is a precision-machined connection component designed specifically for 7.5 mm ID All‑PEEK HPLC column hardware systems. This fitting provides the critical interface between HPLC tubing and semi‑preparative column bodies, ensuring secure, leak‑free operation and consistent chromatographic performance.

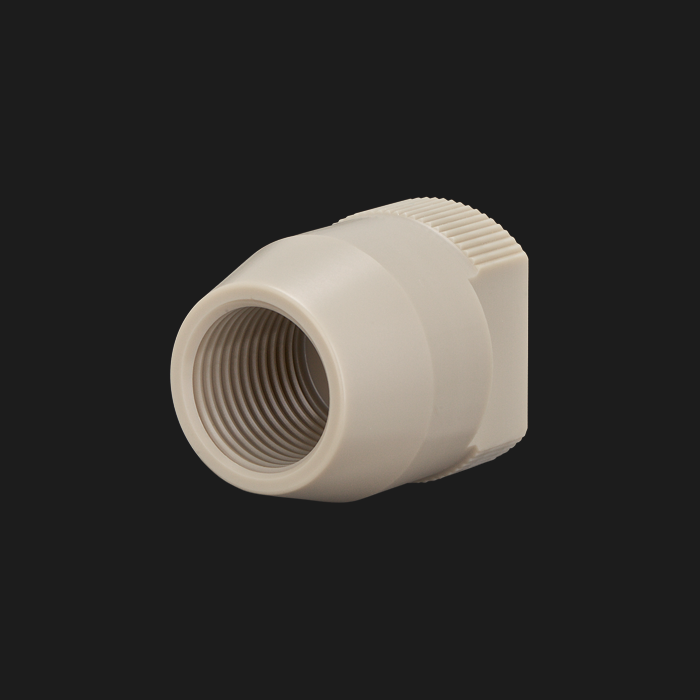

This end fitting features a dual-thread configuration:

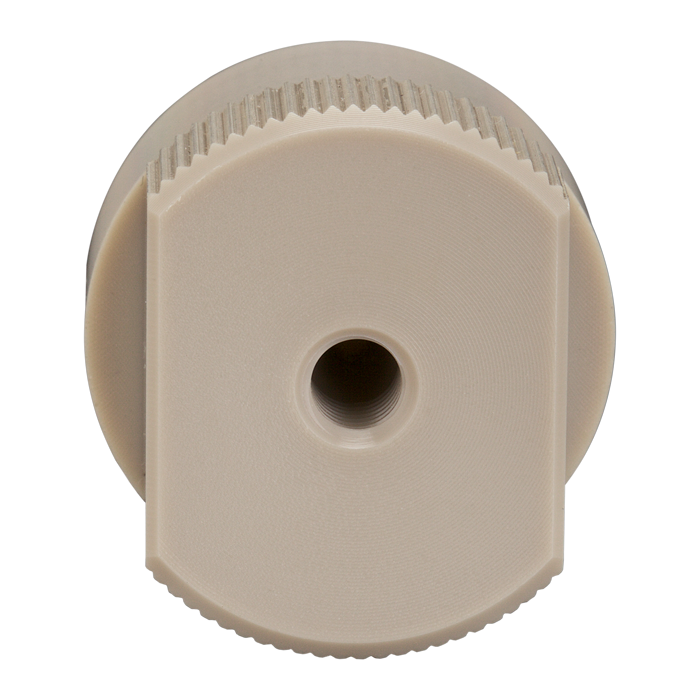

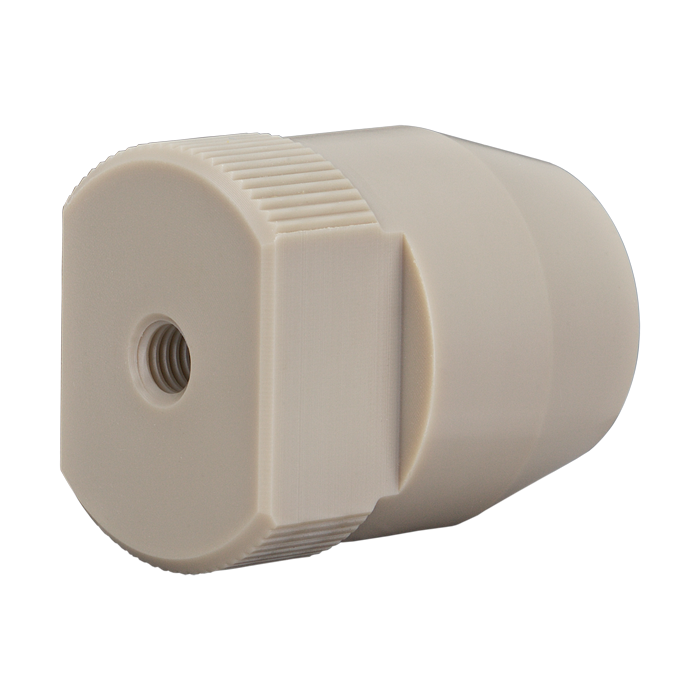

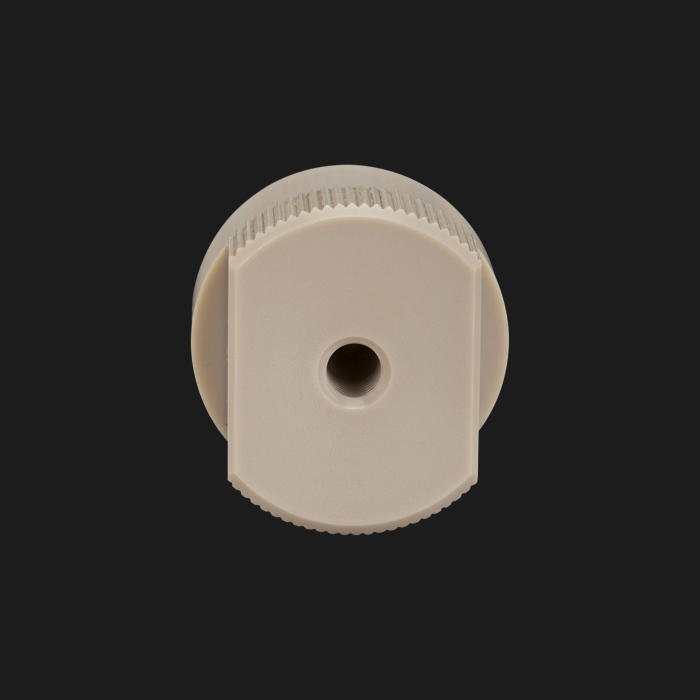

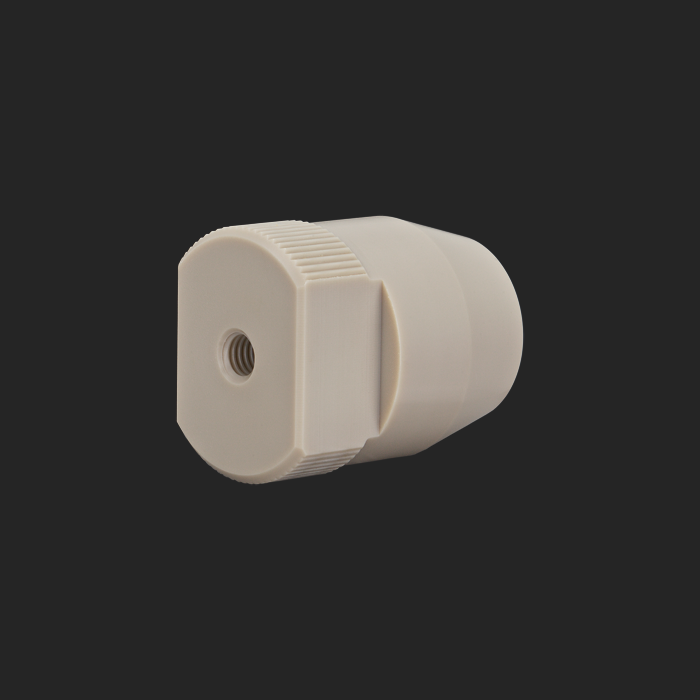

10‑32 female thread (tubing inlet)
5/8‑18 column thread (column body connection)
Manufactured from high-performance PEEK (polyether ether ketone), this component provides a fully bioinert, metal‑free flow path, making it ideal for proteins, peptides, nucleic acids, ions, and metal‑sensitive compounds.
✅ Key Benefits
Critical Semi‑Prep Column Interface Connects tubing to 7.5 mm ID PEEK column bodies
True Bioinert Flow Path (PEEK Construction) Eliminates metal interaction and preserves analyte integrity
Secure, Leak‑Free Connection Maintains system pressure and separation performance
Standard Thread Compatibility 10‑32 tubing inlet and 5/8‑18 column connection
Optimized for All‑PEEK Column Systems Ensures consistent performance in semi‑preparative workflows
Performance & Design
This end fitting is precision machined from PEEK, providing:
Excellent chemical resistance to common HPLC solvents
Mechanical durability for repeated assembly and disassembly
Reliable sealing performance under low‑to‑medium pressure conditions
The design supports:
Proper alignment between tubing and the packed bed
Stable, low dead‑volume flow paths
Consistent chromatographic performance
System Role & Integration
This component is essential for:
Semi‑preparative column packing and assembly workflows
Final column configuration and sealing
Maintaining a fully bioinert chromatography system
It connects:
10‑32 threaded HPLC tubing
5/8‑18 threaded 7.5 mm ID All‑PEEK column body tubes
⚠️ Usage Guidance
Designed specifically for All‑PEEK HPLC column hardware systems
Not recommended for use with stainless steel columns, as mixed-material systems may compromise sealing performance and analyte integrity
Use Case Positioning
Semi‑Preparative Column Hardware Connection Component
Essential for building and maintaining 7.5 mm ID PEEK columns
Enables higher sample loading and scale‑up workflows
Supports bioinert chromatography at semi‑prep scale
Typical Applications
Semi‑Preparative HPLC Column Packing
Protein & Peptide Purification
Nucleic Acid Isolation and Separation
Scale‑Up from Analytical to Preparative Methods
Pharmaceutical Method Development & QC
LC‑MS Workflows requiring metal‑free flow paths
Specifications
Product Type: End Fitting / Column Connection Component
Material: PEEK (Polyether Ether Ketone)
Connection 1: 10‑32 Female (tubing inlet)
Connection 2: 5/8‑18 (column tube thread)
Compatible Column ID: 7.5 mm
Flow Path: Bioinert / metal‑free
Pressure Range: Low to Medium Pressure HPLC
Compatibility: All‑PEEK column systems
Brand: ARE‑Applied Research™

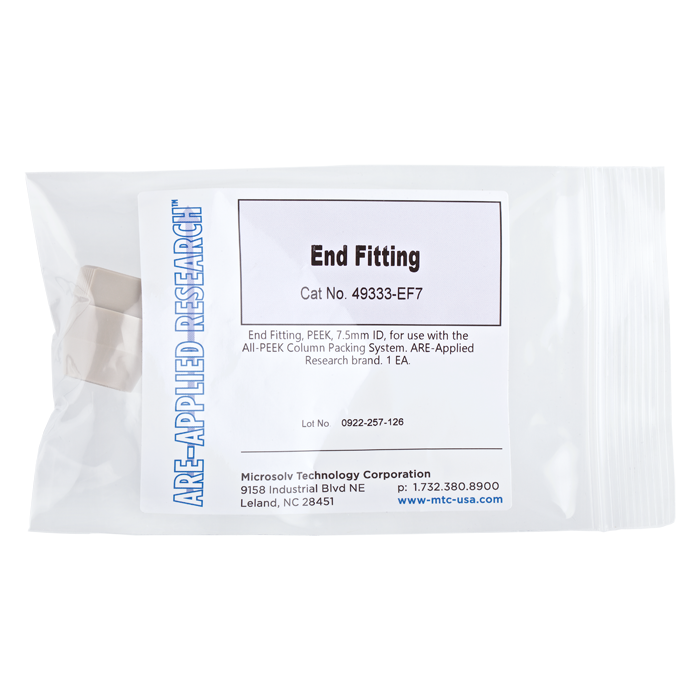

Packaging: Bulk (Custom Item)
