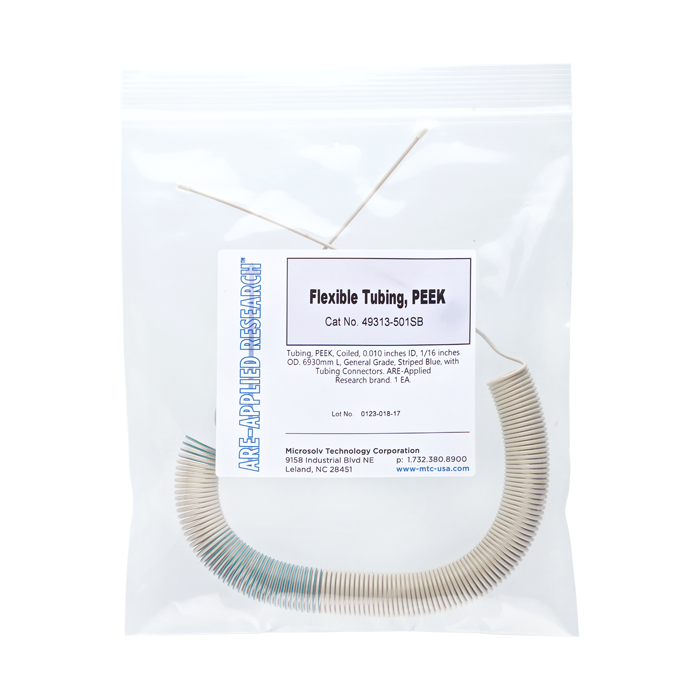

Tubing, PEEK, Coiled, 0.010 (0.25 mm) ID, 1/16th inch (1.6 mm) OD, 6930 mm length, HPLC grade, blue stripe, with tubing connectors. ARE-Applied Research brand. 1 EA.
Additional Info:
FlexiTubes™ is the trademarked product name used for these flexible, coiled PEEK tubing assemblies designed for space‑saving HPLC and laboratory fluidic applications.

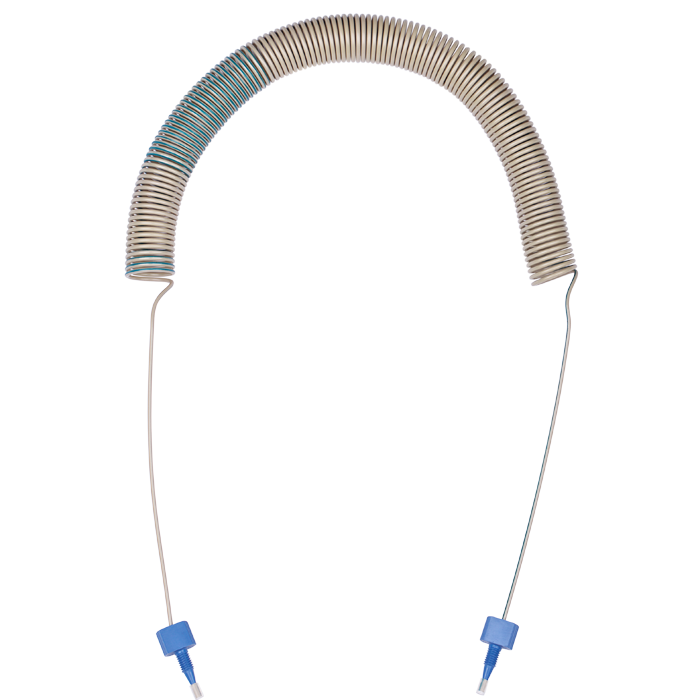

The 49313‑501SB FlexiTubes™ assembly consists of coiled HPLC grade PEEK tubing with a 0.010" (0.25 mm) ID, 1/16" (1.6 mm) OD, and 6930 mm overall tubing length supplied with tubing connectors for convenient installation and routing between HPLC system components.
The coiled tubing design expands and contracts during use, helping reduce excess tubing clutter behind instruments and in crowded laboratory workspaces while maintaining flexible fluidic routing.
These coiled tubing assemblies may also provide a pulse dampening effect in parabolic flow fluid applications, which can contribute to quieter baselines and help reduce band broadening associated with excessive tubing lengths.
This Type 10 FlexiTubes™ configuration is color coded with a blue stripe to identify the 0.010" (0.25 mm) internal diameter tubing size.
Key Benefits
FlexiTubes™ trademarked coiled tubing design
HPLC grade PEEK tubing construction
Flexible expanding and contracting coil format
Helps save space behind laboratory instruments
May reduce excess tubing clutter
Potential pulse dampening effect
Blue stripe color coding for 0.010" ID identification
Includes tubing connectors for installation
Specifications
Product Type: Coiled PEEK tubing assembly
Brand: ARE‑Applied Research
Trade Name: FlexiTubes™
Tubing Material: PEEK
Tubing ID: 0.010" (0.25 mm)
Tubing OD: 1/16" (1.6 mm)
Tubing Length: 6930 mm
Coil Width at Rest: 250 mm
Coil Width Fully Extended: 1300 mm
Color Code: Blue stripe
Includes: Tubing connectors
Pack Size: 1 each
Applications
HPLC fluidic connections
Space‑saving laboratory tubing layouts
Instrument‑to‑instrument tubing connections
Flexible routing behind HPLC systems
General analytical laboratory fluidics
Usage Information
Designed for HPLC and laboratory fluidic applications
Flexible coil design expands and contracts during use
Helps organize excess tubing length in limited spaces
Blue stripe color coding identifies 0.010" ID tubing
Compatible with standard 1/16" HPLC fluidic systems
