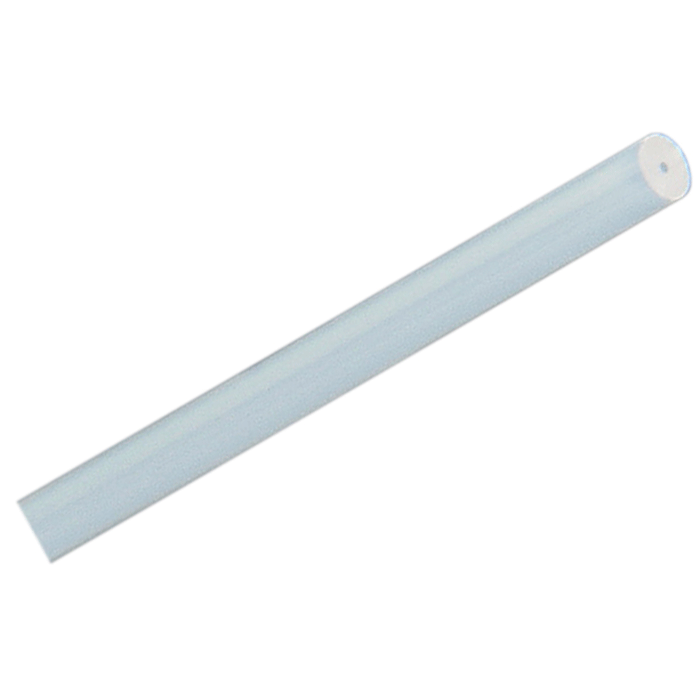

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-10-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing increased internal diameter for improved flow capacity and long continuous lengths for efficient system design.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination and excellent compatibility with sensitive analytical workflows.
Supplied on a 25 meter spool, this configuration is ideal for high‑volume laboratories, OEM integration, and custom tubing installations.
Precision Dimensions – Optimized for Higher Flow
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID supports higher flow rates and reduced backpressure compared to 0.007" tubing
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Suitable for extended solvent routing and stable flow performance
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except minimal color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risks in LC‑MS and trace‑level applications
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and long‑duration laboratory use
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when using:
Degassed solvents
Oxygen‑sensitive samples
✅ Consider alternatives where gas impermeability is required
Flexible & Durable Design
Flexible for long‑distance routing and custom installations
Durable for repeated use
Natural translucent color allows visual confirmation of flow
✅ Supports efficient system setup and maintenance
Convenient Spool Format – High Volume Efficiency
Supplied on a 25 meter spool
Ideal for:
Custom cut lengths
Bulk lab usage
OEM manufacturing
✅ Reduces handling complexity and improves installation efficiency
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the length best suited to your needs:
25 meter spool (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
Extended HPLC mobile phase delivery (pre‑pump)
Long solvent waste lines
Low‑pressure fluid routing systems
General laboratory solvent transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump head connections
Consider permeability with degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure, leak‑free connections
